Features

Specifications

Type: Axle Scale, Aluminum Pad

Power Supply: 220V/50HZ

Display Type:: LCD Or LED, LCD

Safe Overload:: 120%FS

Material: Aluminum

Highlight:

Digital Vehicle Weight Scale

4pcs wireless axle weight system

Basic Infomation

Place of Origin: China

Brand Name: SKYERSCALE

Certification: CE

Model Number: AS001W

Payment & Shipping Terms

Packaging Details: Aluminium box, carton

Delivery Time: 15days

Supply Ability: 500pcs/M

Gallery

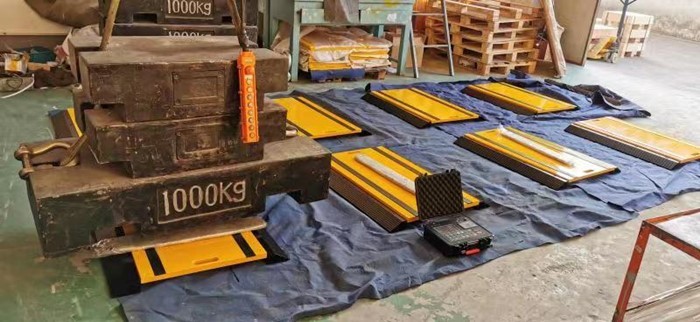

Digital Aluminum Alloy 4PCS Wireless Portable Axle Scales weight scales

Product Description

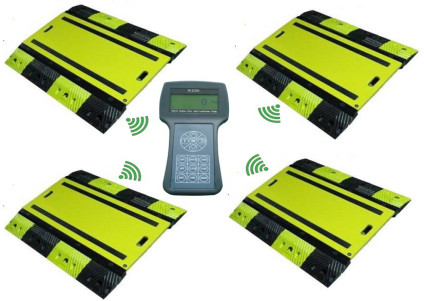

4PCS wireless Wheel Axle Weigh System,Portable Axle Digital vehicle Weight Scale(fast delivery from factory&cheap shipping cost)

Specifications:

Configuration table:

AS001	350×350×35	1000/2000/3000Kg	4pcs LC348 LoadCell,10m Cable Capacity:500/1000/1500Kg
	400×500×56.5	3000/5000/6000/10000Kg	4pcs LC348 LoadCell,10m Cable Capacity:1500/2500/3000/5000Kg
	450×700×56.5	10000/20000/30000Kg	4pcs LC348 LoadCell,10m Cable Capacity:5000/10000/15000Kg
	500×900×56.5	20000/30000/40000Kg	4pcs LC348 LoadCell,10m Cable Capacity:10000/15000/200000Kg

Outline dimension:

Product Parameters
Rated load:1/2/3/5/6/10/20/30/40T	Compensated temp.range(℃): -10~+50
Dynamic error (%F.S): 3 (5~10km/h)	Static error (%F.S):0.1~0.3
Static comprehensive error(%F.S): 0.1~0.5	Insulation resistance(MΩ): ≥5000(100VDC)
Rated output(mV/V): 1.0±0.1	Use temp.range(℃): -30~+80
Non-linearity(%F.S): 0.2	Temp.effect on zero(F.S/10℃): 0.03
Error on corners(%F.S): 0.2	Temp.effect on span(F.S/10℃): 0.05
Repeatariy(%F.S): 0.05	Safe overload(%): 120
Zero balance(%F.S): ±1	Ultimate overload(%): 150
Excitation voltage(VDC): 9~15	Net weight(kg): 45
Recommended voltage(V): 10	Defend grade: IP66
Wireless Specification
A/D conversion method		Σ-Δ 24bit
Input signal range		–19.5mV~19.5mV
Load cell excitation		DC 5V
Max. connection number of load cell		1~4
Load cell connection mode		4 wire
Operating temperature		-10 °C ~40 °C
Allowable working temperature		-40 ° C ~ 70 ° C
Wireless transmission frequency		430MHz to 470MHz
Wireless transmission distance		300 meters (In Open Place)

Description:

Aluminum-alloy; Ultra thin weigh pad design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment;Works both dynamically and statically;Can be used to measure axle weight and whole vehicle weight when two or four weigh-pad connected together.

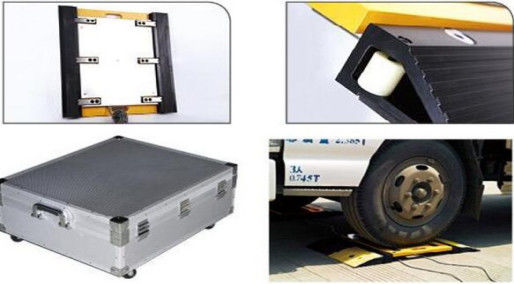

Digital Aluminum Alloy 4PCS Wireless Portable Axle Scales weight scales 1

Applications:

1. Load control and weighing for the vehicles.
2. Measuring the weight and barycenter of aeroplane.

3. Measuring weight for special purpose.

Competitive Advantage:

1. We have more than 10 year experience for manufacturing truck scale, floor scale, animal scale, axle weighing scale etc. We have advanced manufacturing equipment, moreover we are the leader in weighing scale field.
2. Full scale weight debugging and calibration
3. We can supply superior quality weighing scale with reasonable price and provide best service
