Type: | Axle Scale, Aluminum Pad | Power Supply: | 220V/50HZ |
---|---|---|---|
Display Type:: | LCD Or LED, LCD | Safe Overload:: | 120%FS |
Material: | Aluminum-alloy | Rated Load: | 40 Ton |
Highlight: | 15 Ton vehicle axle weighing scales,wireless portable vehicle scales |

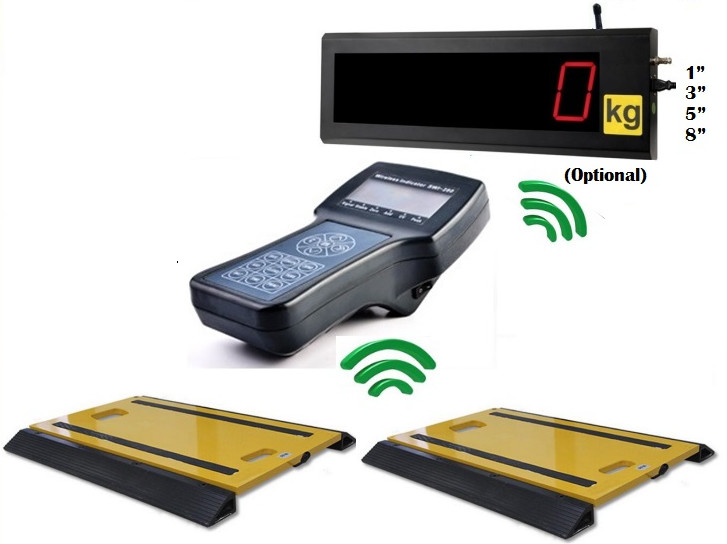

Wireless Portable Vehicle Scales Axle Weighing Scales15Ton 450×700×56.5 for Vehicles
Specification:
Model |
Size(A×B×C) (mm) |
Capacity (each pad) |
Description(Each Pad) | |
AS002 | 350×350×35 | 500/1000/1500Kg |
4pcs SQB LoadCell,10m Cable Capacity:500/1000/1500Kg |
|
400×500×58 | 1500/2500/3000/5000Kg |
4pcs SQB LoadCell,10m Cable Capacity:1500/2500/3000/5000Kg |
||
450×700×58 | 5000/10000/15000KG |
4pcs SQB LoadCell,10m Cable Capacity:5000/10000/15000Kg |
||
500×900×58 | 10000/15000/200000Kg |
4pcs SQB LoadCell,10m Cable Capacity:10000/15000/200000Kg |
||
Product Parameters | ||||
Rated load:1/2/3/5/6/10/20/30/40T | Compensated temp.range(℃): -10~+50 | |||
Dynamic error (%F.S): 3 (5~10km/h) | Static error (%F.S):0.1~0.3 | |||
Static comprehensive error(%F.S): 0.1~0.5 | Insulation resistance(MΩ): ≥5000(100VDC) | |||
Rated output(mV/V): 1.0±0.1 | Use temp.range(℃): -30~+80 | |||
Non-linearity(%F.S): 0.2 | Temp.effect on zero(F.S/10℃): 0.03 | |||
Error on corners(%F.S): 0.2 | Temp.effect on span(F.S/10℃): 0.05 | |||
Repeatariy(%F.S): 0.05 | Safe overload(%): 120 | |||
Zero balance(%F.S): ±1 | Ultimate overload(%): 150 | |||
Excitation voltage(VDC): 9~15 | Net weight(kg): 45 | |||
Recommended voltage(V): 10 | Defend grade: IP66 |
Wireless Specification | |
A/D conversion method | Σ-Δ 24bit |
Input signal range | –19.5mV~19.5mV |
Load cell excitation | DC 5V |
Max. connection number of load cell | 1~4 |
Load cell connection mode | 4 wire |
Operating temperature | -10 °C ~40 °C |
Allowable working temperature | -40 ° C ~ 70 ° C |
Wireless transmission frequency | 430MHz to 470MHz |
Wireless transmission distance | 800 meters (In Open Place) |
Description:

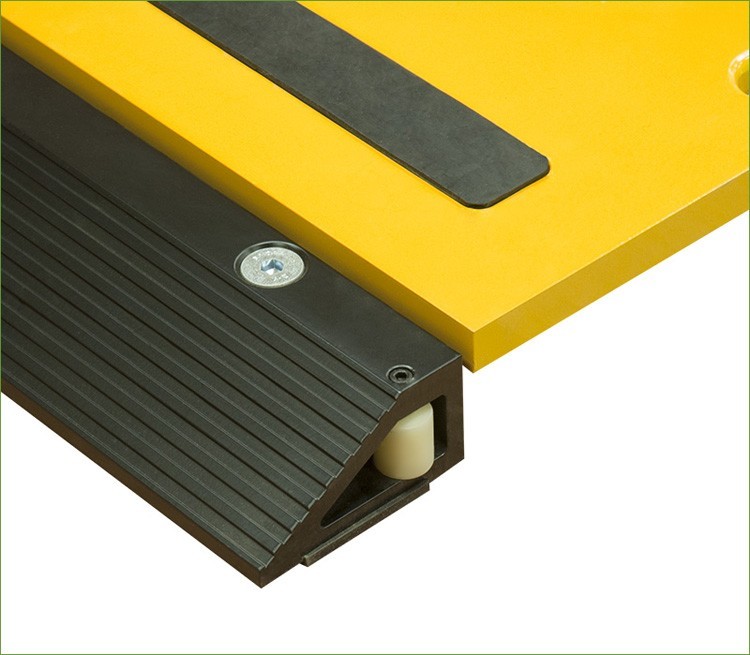

Aluminum-alloy; Ultra thin weigh pad design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment;Works both dynamically and statically;Can be used to measure axle weight and whole vehicle weight when two or four weigh-pad connected together.
Applications:

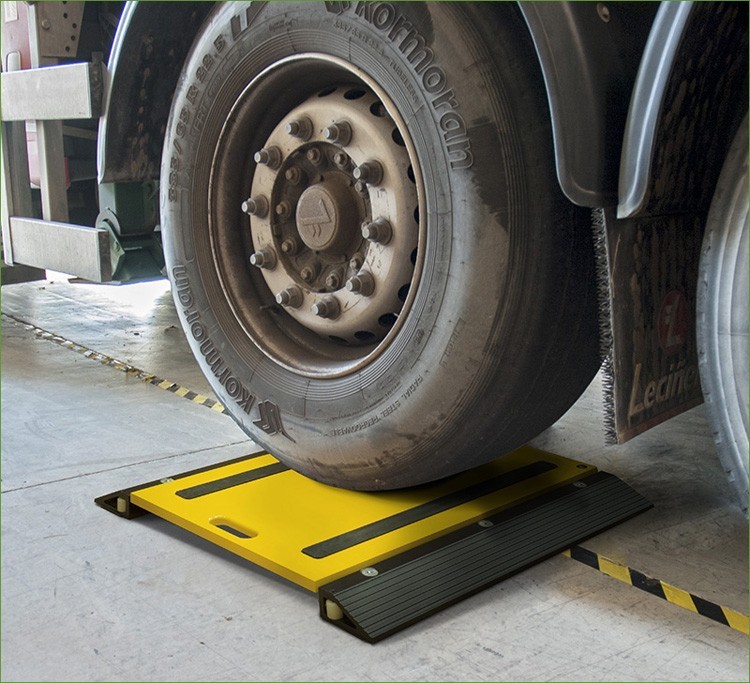

portable axle load scale is applied to check static vehicles if overload in highway, goods weighing, low accuracy or high accuracy static vehicles weighing.
Competitive Advantage:
1.We have more than 10 year experience for manufacturing truck scale, floor scale, animal scale, axle weighing scale etc. We have advanced manufacturing equipment, moreover we are the leader in weighing scale field.
2. We pay attention to scale quality, we pay attention to supervise the quality of products effectively.
3.We will supply customers installation guide and using guide after sales.
4. Full scale weight debugging and calibration
5. We can supply superior quality weighing scale with reasonable price and provide best service
