Product Details:
Payment & Shipping Terms:
|
| Product Name: | Portable Axle Weighing Scale | Type: | Portable Truck Axle Scale |
|---|---|---|---|
| Display Type: | 100~240V | Model Number: | AS002C |
| Use: | Weigh The Weight Of The Product | Slope Size (mm): | 500*300/720*330 |
| Sensor Structure: | Four Or Six Shear Beam Type Sensor | ||
| High Light: | Axle Vehicle Weighing Scale,20Ton Axle Vehicle Weighing Scale |
||

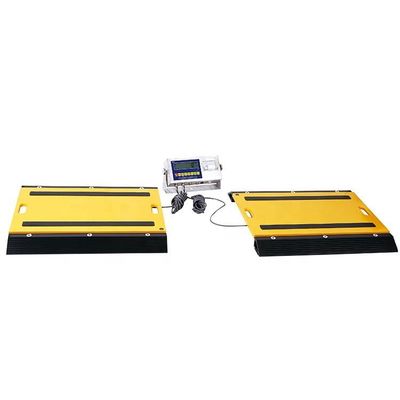

20 Ton Wireless Digital Custom Dynamic Portable Axle Vehicle Weighing Truck Scale
Aluminum-alloy; Ultra-thin weigh pad design; easily mounted / unmounted slope; Hermetically sealed suits different environments; Works both dynamically and statically; Can be used to measure axle weight and whole vehicle weight when two or four weigh-pad are connected together.
1. Wired or wireless data transmission;
2. The weighing pad has 2 forms: has a slope and without slope;
3. Wired-type portable axle scale adopts a high-strength cable protection spring, which can safely make the wheels roll over;
4. Lightweight, easy to carry, high precision, and good repeatability;
5. High-strength aviation aluminum alloy weighing pads, the surface is treated with high-quality military aluminum oxidation treatment to resist wear and corrosion;
6. High-quality rubber slope, a non-slip pattern on the surface, sturdy and durable. It connected with the pads to avoid separation;
|
Size(mm)
|
500×400×58
|
720×450×58
|
|
Slope Size(mm)
|
500×300
|
720×330
|
|
Single pad maximum range(t)
|
1-6
|
2-20
|
|
Accuracy
|
Static: 0.1%-0.3%
|
|
|
Sensor structure
|
There are four or six shear beam type sensor at the bottom
|
|
|
Safety overload range
|
120%
|
|
|
Portable axle weighing scale can be used with wireless/wired touch screen indicator or wired keypad static indicator.
|
||
Outline Dimension (mm):
Configuration Table
| Model |
Size(A×B×C) (mm) |
Capacity (Per Weigh Pad) |
Description(Each Pad) | |
| AS002 | 300×400×35 | 500/1000/1500Kg |
4pcs SQB LoadCell,10m Cable Capacity:500/1000/1500Kg |
|
| 400×500×58 | 1500/2500/3000/Kg |
4pcs SQB LoadCell,10m Cable Capacity:1500/2500/3000Kg |
||
| 400×500×58 | 5000Kg |
4pcs SQB LoadCell,10m Cable Capacity:5000Kg |
||
| 450×700×58 | 5000/10000/15000Kg |
6pcs SQB LoadCell,10m Cable Capacity:5000/10000/15000Kg |
||
| 500×900×58 | 10000/15000/20000/25000Kg |
6pcs SQB LoadCell,10m Cable Capacity:10000/15000/200000Kg |
||
| Product Parameters | ||||
| Rated load:1/2/3/5/6/10/20/30/40T | Compensated temp.range(℃): -10~+50 | |||
| Dynamic error (%F.S): 3 (5~10km/h) | Static error (%F.S):0.1~0.3 | |||
| Static comprehensive error(%F.S): 0.1~0.5 | Insulation resistance(MΩ): ≥5000(100VDC) | |||
| Rated output(mV/V): 1.0±0.1 | Use temp.range(℃): -30~+80 | |||
| Non-linearity(%F.S): 0.2 | Temp.effect on zero(F.S/10℃): 0.03 | |||
| Error on corners(%F.S): 0.2 | Temp.effect on span(F.S/10℃): 0.05 | |||
| Repeatariy(%F.S): 0.05 | Safe overload(%): 120 | |||
| Zero balance(%F.S): ±1 | Ultimate overload(%): 150 | |||
| Excitation voltage(VDC): 9~15 | Net weight(kg): 45 | |||
| Recommended voltage(V): 10 | Defend grade: IP66 | |||
Details display:
Features:
◎Excellent weighing function and high precision;;
◎Touch screen LCD Monitor;
◎Backlight lattice LCD, Clear both in daytime and nighttime;
◎Double LCDs are used;
◎Measure and display vehicle velocity(km/h);
◎Floating technology is adopted to remove zero drift;
◎Numbered options;
◎Vehicle axle weight is measured axle by axle, and the max number is unlimited;
◎USB port is used to communicate with PC;
◎Can conveniently input full vehicle license number with letters;
◎Can put in the name of the testing organization and operators;
◎Can store as many as 10000 vehicle testing records;
◎Mature inquiry and statistic function;
◎AC/DC, real time battery capacity indicating. The battery can be used for 40 hours on end. Automatic shut off;
◎The auto power supply system can be used for providing electricity and charging;
◎The instrument can work independently. And it also can upload testing data to computers.;
Main Technical Index
◎full-scale temperature coefficient: 5ppm/℃;
◎Inner resolution: 24 bits;
◎Sampling speed: 200 times/second;
◎The speed of display renewal: 12.5times/sec;
◎System non-linearity＜0.01%;
◎Impulse source of sensor: DC 5V±2%;
◎Operating temperature range: 0℃--40℃;
◎Power supply sink (without the sensor): 70mA(no printing and no back lighting), 1000mA(printing);
◎power supply: built-in 8.4V/10AH leading acid accumulator, and can connect with DC source (8.4V/2A);
