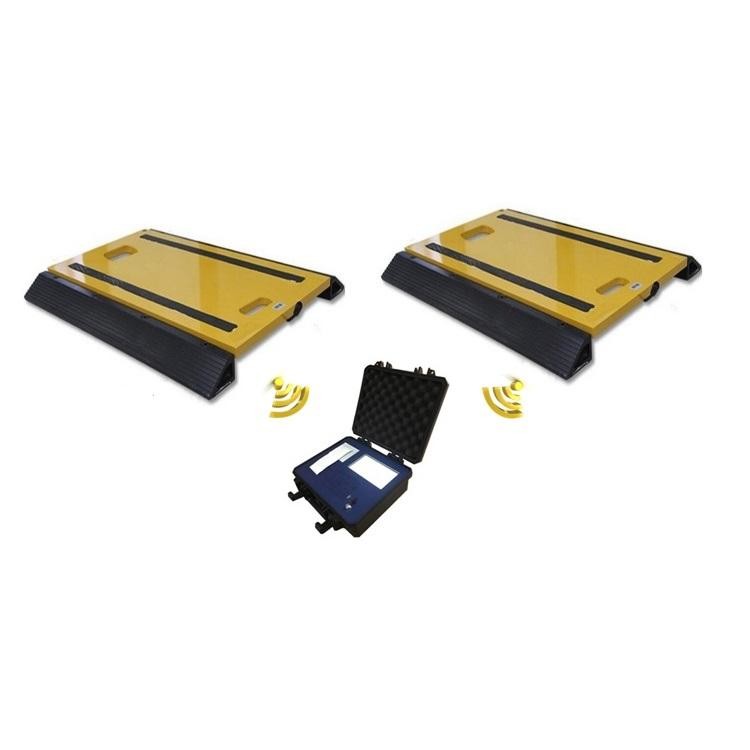

10t 20t 30t Portable Truck Axle Scale Weighbridge Pad

10t 20t 30t Portable Truck Axle Scale Weighbridge Pad
10t 20t 30t Portable Truck Axle Scale Weighbridge Pad

Large Image :  10t 20t 30t Portable Truck Axle Scale Weighbridge Pad

Product Details:
Place of Origin: China
Brand Name: SKYERSCALE
Certification: CE
Model Number: AS002
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD300~600
Packaging Details: Box
Delivery Time: 5-30 working days
Payment Terms: T/T
Supply Ability: 1 Piece/Pieces per Day
Detailed Product Description
Product Name: Portable Axle Weighing Scale Display Type: 6-digit 25mm LCD With Backlight
Platform Material: Special Aluminum Model Number: AS002
Use: Weigh The Weight Of The Product Market: All Over The World
Rated Load: 1/2/3/5/6/10/20/30/40T
High Light:

30t Portable Truck Axle Scale

,

Truck Axle Scale Weighbridge Pad

10t 20t 30t Portable Truck Axle Scale Weighbridge Pad



Made of special aluminum, easy to carry and strong in structure, suitable for most working environments; Weighing plate is equipped with a 15-meter cable, connect to weighing indicator; IP67 1,000Ω high impedance alloy steel load cells; Special anti-skid rubber at the bottom of the weighing platform; Simple and secure connection to the weighing indicator; IP68 connection of weighing plate, IP68 aerial linker; Moveable wheels.



From high precision micro-analysis to more than 100 tons of weighing application, we specialize our products and solutions around various processes of the petrochemical, metallurgical, chemical, port, building material, breeding, paper making, pharmaceutical, food, textile, and logistics industry. Main products: electronic weighing scale (bench scale, floor scale, platform scale, crane scale, animal scale, pallet truck scale), digital weighing indicator, load cell, sensor, weighing module, etc.





Configuration Table



Model

Size(A×B×C)

(mm)

Capacity

(Per Weigh Pad)

Description(Each Pad)
AS002 300×400×35 500/1000/1500Kg

4pcs SQB LoadCell,10m Cable

Capacity:500/1000/1500Kg

400×500×58 1500/2500/3000/Kg

4pcs SQB LoadCell,10m Cable

Capacity:1500/2500/3000Kg

400×500×58 5000Kg

4pcs SQB LoadCell,10m Cable

Capacity:5000Kg

450×700×58 5000/10000/15000Kg

6pcs SQB LoadCell,10m Cable

Capacity:5000/10000/15000Kg

500×900×58 10000/15000/20000/25000Kg

6pcs SQB LoadCell,10m Cable

Capacity:10000/15000/200000Kg


                                                     Product Parameters
Rated load:1/2/3/5/6/10/20/30/40T Compensated temp.range(℃): -10~+50
Dynamic error (%F.S): 3 (5~10km/h) Static error (%F.S):0.1~0.3
Static comprehensive error(%F.S): 0.1~0.5 Insulation resistance(MΩ): ≥5000(100VDC)
Rated output(mV/V): 1.0±0.1 Use temp.range(℃): -30~+80
Non-linearity(%F.S): 0.2 Temp.effect on zero(F.S/10℃): 0.03
Error on corners(%F.S): 0.2 Temp.effect on span(F.S/10℃): 0.05
Repeatariy(%F.S): 0.05 Safe overload(%): 120
Zero balance(%F.S): ±1 Ultimate overload(%): 150
Excitation voltage(VDC): 9~15 Net weight(kg): 45
Recommended voltage(V): 10 Defend grade: IP66



Product Parameters
Rated load:1/2/3/5/6/10/20/30/40T
Compensated temp.range(℃): -10~+50
Dynamic error (%F.S): 3 (5~10km/h)
Static error (%F.S):0.1~0.3
Static comprehensive error(%F.S): 0.1~0.5
Insulation resistance(MΩ): ≥5000(100VDC)
Rated output(mV/V): 1.0±0.1
Use temp.range(℃): -30~+80
Non-linearity(%F.S): 0.2
Temp.effect on zero(F.S/10℃): 0.03
Error on corners(%F.S): 0.2
Temp.effect on span(F.S/10℃): 0.05
Repeatariy(%F.S): 0.05
Safe overload(%): 120
Zero balance(%F.S): ±1
Ultimate overload(%): 150
Excitation voltage(VDC): 9~15
Net weight(kg): 45
Recommended voltage(V): 10
Defend grade: IP66

Details display:



Wireless Specification
A/D conversion method
Σ-Δ 24bit
Input signal range
–19.5mV~19.5mV
Load cell excitation
DC 5V
Max. connection number of load cell
1~4
Load cell connection mode
4 wire
Operating temperature
-10 °C ~40 °C
Allowable working temperature
-40 ° C ~ 70 ° C
Wireless transmission frequency
430MHz to 470MHz
Wireless transmission distance
800 meters (In Open Place)






Features:

1):two separate calibration of the weighing platform, with a 10-point amendment to greatly improve the accuracy of the product.

2):The floating zero and zero tracking technology, the complete elimination of zero drift.

3):Figures of the menu operation, simple and clear.
