Type: | Axle Scale, Aluminum Pad | Power Supply: | AC/DC |
---|---|---|---|
Display Type:: | LED | Safe Overload:: | 120%FS |
Color: | Customized | ||
Highlight: | Truck Portable Axle Load Scale,120%FS Truck Scale Weight Pads |

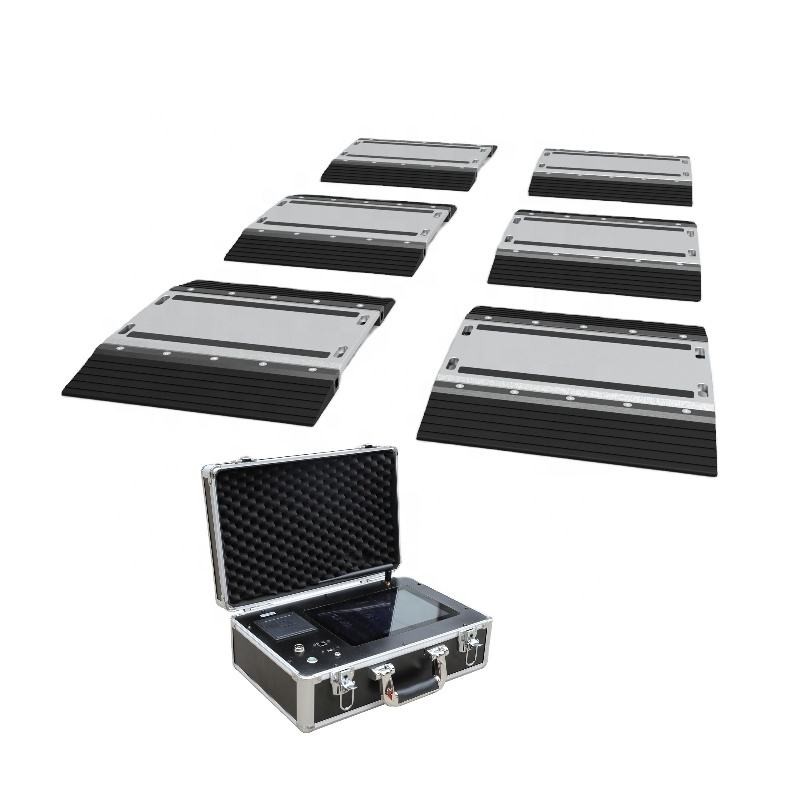

Truck Scale Weight Pads Portable Axle Load Scale
Intelweighing axle scale are a very good choice for Mines and Factories, where installations are required to be quick. Shifting axle weighbridge can be done quickly and needs only a small pickup truck for transportation.
Axle weigh bridges are very cost effective solution, the user benefits from the low equipment cost, low cost of civil work & installation and hence rapid recovery on investment. Civil work takes only 3 to 4 days time and the installation can be done in just one day. With its many advantages and cost benefits, axle weighbridge is highly rewarding solution with no compromise.
Technical Parameter:
Capacity: | 0-15t/per weighing pad |
Wireless Frequency: | 470MHz |
Wireless Distance: | Min:100m(default) |
A/D Conversion Rate: | ≥50times/seconds |
Operating Temp. Range: | -20~+80℃ |
Operating Humidity: | ≤85%RH under 20℃ |
Battery Life: | ≥50 hours |
Non-Linearity: | 0.01%F.S |
Stable Time: | ≤5 seconds |
Citation: | GB/T7551-1997/ OIML R60 |
1. Strain gage or multiple load cells are inside weigh pad, an integrated and ultra-slim structure, easy to move, with a light weight of less than 25kg.
2. With special protection treatment, suitable for harsh environments.
3. patented designed slope can lower force impact from vehicle wheels.
Outline Dimension (mm):
Work Principle:
The load cell’s out–put signal is digital, parameter adjustment and temperature compensation will be finished in internal. Though 470MHz wireless module to launch after reasonable.
Handhold receive load cell output and its internal battery power consumption values then show them on the LCD display ,and handhold through RS232 output to computer or large-screen display.
Product Characteristics:
▲Display: LCD 71×29 with backlighting , 6 bit show weight value
▲Hold on the peak value, can contact with computer or large-screen display by RS232
▲Unit:kg,lb,t
Wireless Specification | |
A/D conversion method | Σ-Δ 24bit |
Input signal range | –19.5mV~19.5mV |
Load cell excitation | DC 5V |
Max. connection number of load cell | 1~4 |
Load cell connection mode | 4 wire |
Operating temperature | -10 °C ~40 °C |
Allowable working temperature | -40 ° C ~ 70 ° C |
Wireless transmission frequency | 430MHz to 470MHz |
Wireless transmission distance | 800 meters (In Open Place) |
WI680 Wireless Weighing Indicator (With Printer):
Special Features :
● Adopts ∑-Δ A/D conversion technology.
● Keyboard calibration, easy to operate.
● Able to setup zero(auto/manual) range.
● Weighing data save protection in case of power off.
● Battery charger with several protection modes to extend life of rechargeable battery.
● Standard RS232 communication interface(optional).
● Portable design, packed in portable box, easy to operate outdoor.
● Adopt SMT technology, reliable and high quality.
● LCD display with dot character with backlight, readable in aphotic areas.
● Gathering up to data records of 2000 weighings, records can be sorted, searched and printed.
● Standard parallel print interface(EPSON printer)
● With rechargeable 7.2V/2.8AH battery for indicator, no memory. Scale body with power supply of DC 6V/4AH battery.
● Power saving mode, indicator will turn off automatically after 30minutes with no operation.
Wireless Specification | |
A/D conversion method | Σ-Δ 24bit |
Input signal range | –19.5mV~19.5mV |
Load cell excitation | DC 5V |
Max. connection number of load cell | 1~4 |
Load cell connection mode | 4 wire |
Operating temperature | -10 °C ~40 °C |
Allowable working temperature | -40 ° C ~ 70 ° C |
Wireless transmission frequency | 430MHz to 470MHz |
Wireless transmission distance | 300 meters (In Open Place) |
Wireless Scoreboard:
Product Description:
Weighing the results of long-range wireless observation, weighing device can be used as the auxiliary display.
Connection with the weighing indicator, as a system of auxiliary displays. (weighing indicator should be equipped with the appropriate means of communication.)
Dynamic scan latch technology
High brightness digital model, a special optical filter film, Perspective range;
Display system or the output of the gross, net; Display the gross weight and net weight of system or indicator output.
Technical Parameters:
Power Supply: AC 187 ~ 242V; 49 ~ 51Hz;
Ambient temperature: 0 ~ 40 ℃;
Ambient Humidity: ≤ 85% RH;
Radio Frequency: 240HZ
Wireless transmission distance: Min: 80 meters [200 meters (optional)]
Display Character And Specifications:
6-bit digital tube LED character height 25mm (1 inch)
6-bit digital tube LED character height 75mm (3 inches)
6-bit digital tube LED character height 125mm (5 inch)
6-bit digital tube LED character height 200mm (8 inches)
More Better Choice:
Description:
1. Light in weight, and convenient transportation.
2. Integral flat plate construction, high frequency in dynamic response, and high precision.
3. Applied special treatment, offering high protection class that are suitable for all kinds of environments.
4. Adopted special material in aero-industry, with good anti-over loading ability.
5. Assembled with rubber handles, avoided destroying of the handles.
6. Mounted with connector and protection block, easy for changing of cables.
7. Completed with dovetail approach, offering tight connection of the approach and the scale.
8. Easy for loading on/off of the vehicles.
Notice:
Do not use the wireless load cell in explosive and unsafe place. The wireless range will be effective when in different weather, the load cell with the indicator in different place, orientation or obstruct from .For charge :according to Li-ion battery .Do not excess discharge.
Applications:
1.Load control and weighing for the vehicles.
2.Measuring the weight and barycenter of aeroplane.
3.Measuring weight for special purpose.
