Home /Products/Portable Axle Scales/LED 60T Wireless Static Dynamic Portable Axle Scales

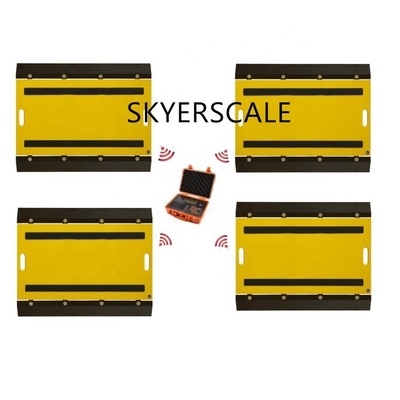

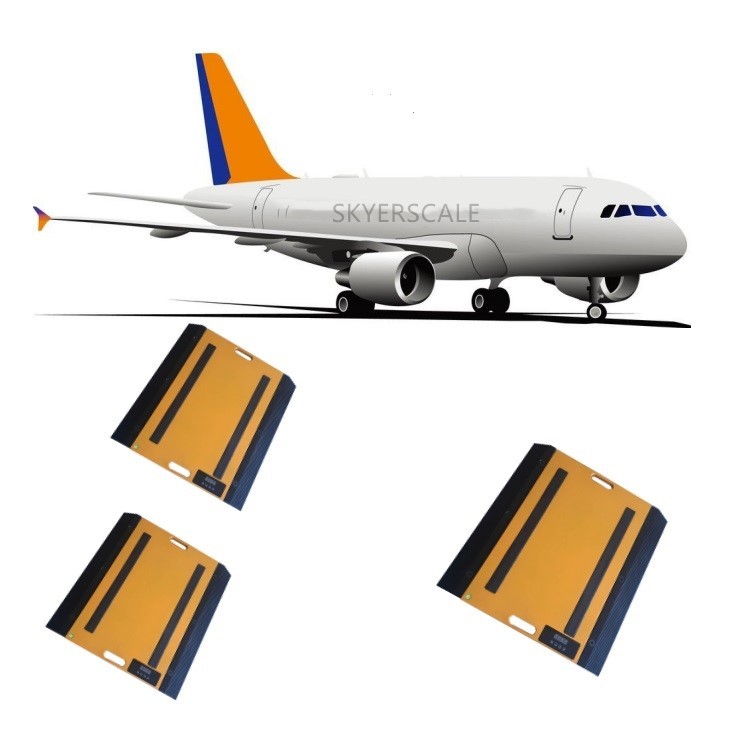

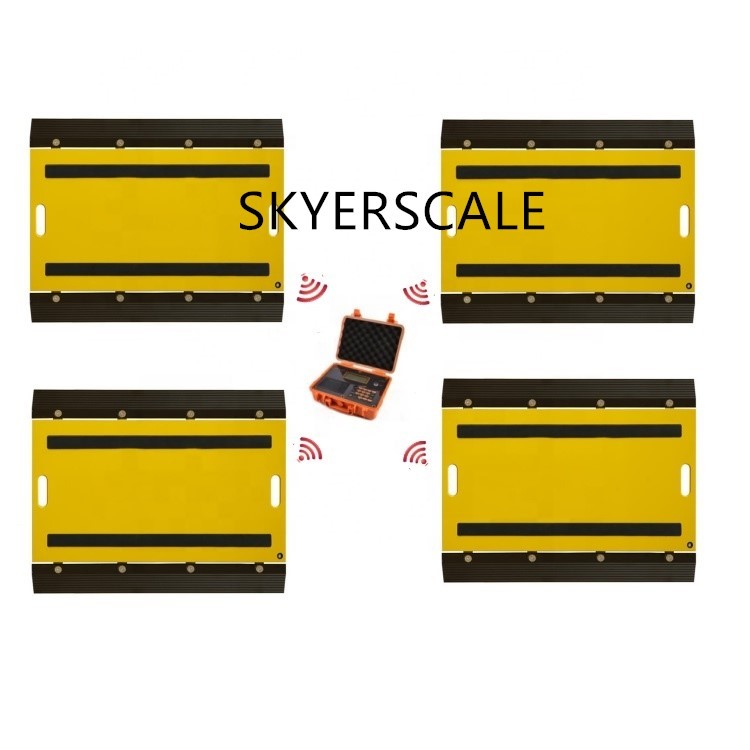

LED 60T Wireless Static Dynamic Portable Axle Scales

1 set
MOQ
USD300~600
Price
LED 60T Wireless Static Dynamic Portable Axle Scales
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Portable Axle Weighing Scale
Type: Axle Scale
Display Type: 100~240V
Model Number: AS002
Use: Weigh The Weight Of The Product
Market: All Over The World
Rated Load: 1/2/3/5/6/10/20/30/40T
Highlight:

Wireless Static Portable Axle Scales

,

60T Portable Axle Scales

,

60T portable axle scales
Basic Infomation
Place of Origin: China
Brand Name: SKYERSCALE
Certification: CE
Model Number: AS002
Payment & Shipping Terms
Packaging Details: Box
Delivery Time: 5-30 working days
Payment Terms: T/T
Supply Ability: 1 Piece/Pieces per Day
Product Description

LED 60T Wireless Static And Dynamic Portable Axle Weighing truck scale



Configuration Table



Model

Size(A×B×C)

(mm)

Capacity

(Per Weigh Pad)

 Description(Each Pad)
AS002 300×400×35 500/1000/1500Kg

4pcs SQB LoadCell,10m Cable

Capacity:500/1000/1500Kg
400×500×58 1500/2500/3000/Kg

4pcs SQB LoadCell,10m Cable

Capacity:1500/2500/3000Kg
400×500×58 5000Kg

4pcs SQB LoadCell,10m Cable

Capacity:5000Kg
450×700×58 5000/10000/15000Kg

6pcs SQB LoadCell,10m Cable

Capacity:5000/10000/15000Kg
500×900×58 10000/15000/20000/25000Kg

6pcs SQB LoadCell,10m Cable

Capacity:10000/15000/200000Kg

                                                     Product Parameters
Rated load:1/2/3/5/6/10/20/30/40T Compensated temp.range(℃): -10~+50
Dynamic error (%F.S): 3 (5~10km/h) Static error (%F.S):0.1~0.3
Static comprehensive error(%F.S): 0.1~0.5 Insulation resistance(MΩ): ≥5000(100VDC)
Rated output(mV/V): 1.0±0.1 Use temp.range(℃): -30~+80
Non-linearity(%F.S): 0.2 Temp.effect on zero(F.S/10℃): 0.03
Error on corners(%F.S): 0.2 Temp.effect on span(F.S/10℃): 0.05
Repeatariy(%F.S): 0.05 Safe overload(%): 120
Zero balance(%F.S): ±1 Ultimate overload(%): 150
Excitation voltage(VDC): 9~15 Net weight(kg): 45
Recommended voltage(V): 10 Defend grade: IP66



Product Parameters
Rated load:1/2/3/5/6/10/20/30/40T
Compensated temp.range(℃): -10~+50
Dynamic error (%F.S): 3 (5~10km/h)
Static error (%F.S):0.1~0.3
Static comprehensive error(%F.S): 0.1~0.5
Insulation resistance(MΩ): ≥5000(100VDC)
Rated output(mV/V): 1.0±0.1
Use temp.range(℃): -30~+80
Non-linearity(%F.S): 0.2
Temp.effect on zero(F.S/10℃): 0.03
Error on corners(%F.S): 0.2
Temp.effect on span(F.S/10℃): 0.05
Repeatariy(%F.S): 0.05
Safe overload(%): 120
Zero balance(%F.S): ±1
Ultimate overload(%): 150
Excitation voltage(VDC): 9~15
Net weight(kg): 45
Recommended voltage(V): 10
Defend grade: IP66

Details display:



Wireless Specification
A/D conversion method
Σ-Δ 24bit
Input signal range
–19.5mV~19.5mV
Load cell excitation
DC 5V
Max. connection number of load cell
1~4
Load cell connection mode
4 wire
Operating temperature
-10 °C ~40 °C
Allowable working temperature
-40 ° C ~ 70 ° C
Wireless transmission frequency
430MHz to 470MHz
Wireless transmission distance
800 meters (In Open Place)






Features:

1):two separate calibration of the weighing platform, with a 10-point amendment to greatly improve the accuracy of the product.

2):The floating zero and zero tracking technology, the complete elimination of zero drift.

3):Figures of the menu operation, simple and clear.

LED 60T Wireless Static Dynamic Portable Axle Scales 0
