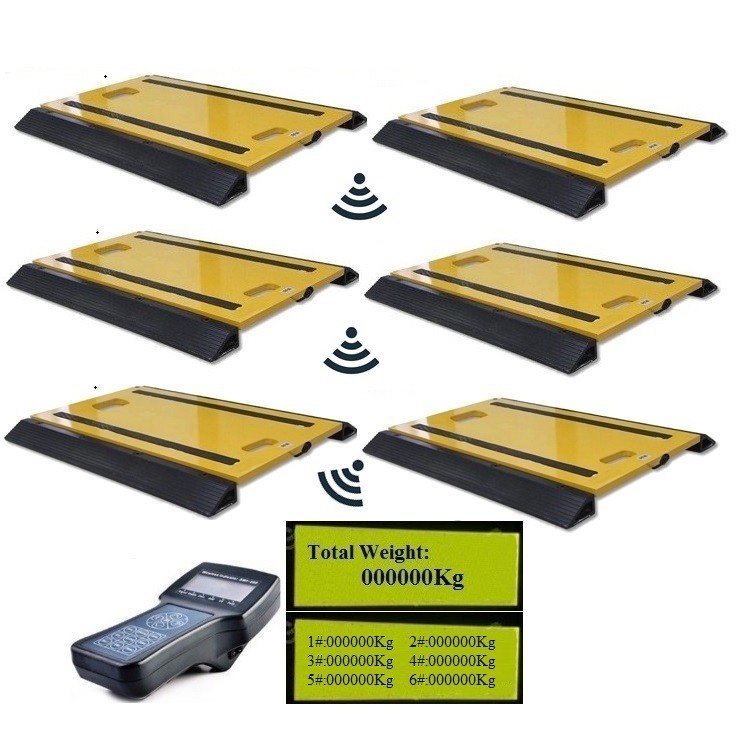

150T Dynamic Scales Static Portable Truck Axle Scales With LCD Display

150T Dynamic Scales Static Portable Truck Axle Scales With LCD Display
150T Dynamic Scales Static Portable Truck Axle Scales With LCD Display 150T Dynamic Scales Static Portable Truck Axle Scales With LCD Display 150T Dynamic Scales Static Portable Truck Axle Scales With LCD Display

Large Image :  150T Dynamic Scales Static Portable Truck Axle Scales With LCD Display

Product Details:
Place of Origin: China
Brand Name: SKYERSCALE
Certification: CE
Model Number: AS002W
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Aluminium box, carton
Delivery Time: 15days
Supply Ability: 500pcs/M
Detailed Product Description
Product Name: Wheel Load Scale Power Supply: 110V~250V
Display Type:: LCD Or LED, LCD Safe Overload:: 120%FS
Material: Aluminium/Alloy Steel Rated Load: 25 Ton Each Pad
High Light:

150T portable truck axle scales

,

LCD display truck axle scales

,

Dynamic truck axle scales

150T Dynamic Scales Static Weighing Portable Wireless Truck Axle Wheel Load Scale



Specification:



Model

Size(A×B×C)

(mm)

Capacity

(each pad)

Description(Each Pad)
AS002 350×350×35 500/1000/1500Kg

4pcs SQB LoadCell,10m Cable

Capacity:500/1000/1500Kg

400×500×58 1500/2500/3000/5000Kg

4pcs SQB LoadCell,10m Cable

Capacity:1500/2500/3000/5000Kg

450×700×58 5000/10000/15000KG

4pcs SQB LoadCell,10m Cable

Capacity:5000/10000/15000Kg

500×900×58 10000/15000/200000Kg

4pcs SQB LoadCell,10m Cable

Capacity:10000/15000/200000Kg

Product Parameters
Rated load:1/2/3/5/6/10/20/30/40T Compensated temp.range(℃): -10~+50
Dynamic error (%F.S): 3 (5~10km/h) Static error (%F.S):0.1~0.3
Static comprehensive error(%F.S): 0.1~0.5 Insulation resistance(MΩ): ≥5000(100VDC)
Rated output(mV/V): 1.0±0.1 Use temp.range(℃): -30~+80
Non-linearity(%F.S): 0.2 Temp.effect on zero(F.S/10℃): 0.03
Error on corners(%F.S): 0.2 Temp.effect on span(F.S/10℃): 0.05
Repeatariy(%F.S): 0.05 Safe overload(%): 120
Zero balance(%F.S): ±1 Ultimate overload(%): 150
Excitation voltage(VDC): 9~15 Net weight(kg): 45
Recommended voltage(V): 10 Defend grade: IP66



Wireless Specification
A/D conversion method Σ-Δ 24bit
Input signal range –19.5mV~19.5mV
Load cell excitation DC 5V
Max. connection number of load cell 1~4
Load cell connection mode 4 wire
Operating temperature -10 °C ~40 °C
Allowable working temperature -40 ° C ~ 70 ° C
Wireless transmission frequency 430MHz to 470MHz
Wireless transmission distance 800 meters (In Open Place)



Description:



Aluminum-alloy; Ultra thin weigh pad design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment;Works both dynamically and statically;Can be used to measure axle weight and whole vehicle weight when two or four weigh-pad connected together.

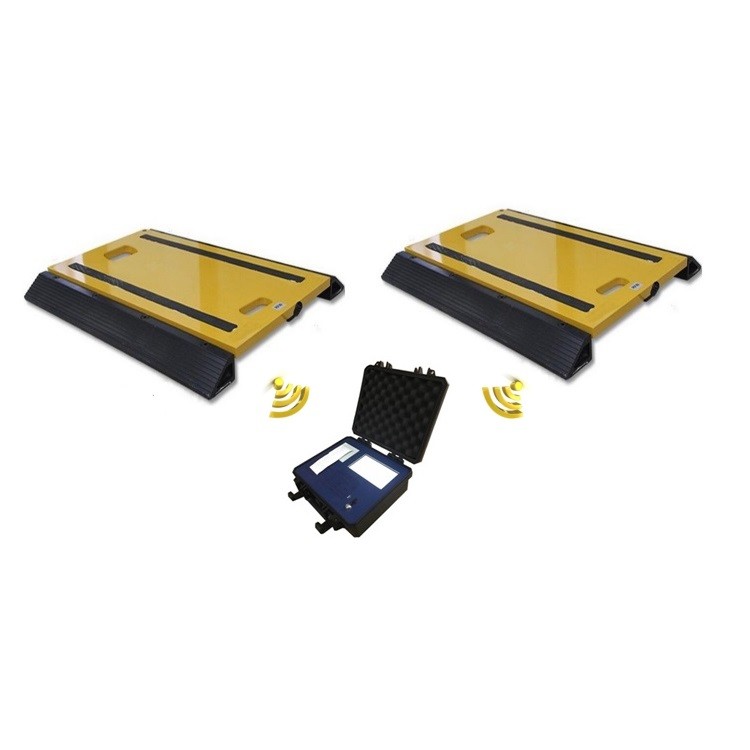

150T Dynamic Scales Static Portable Truck Axle Scales With LCD Display 0

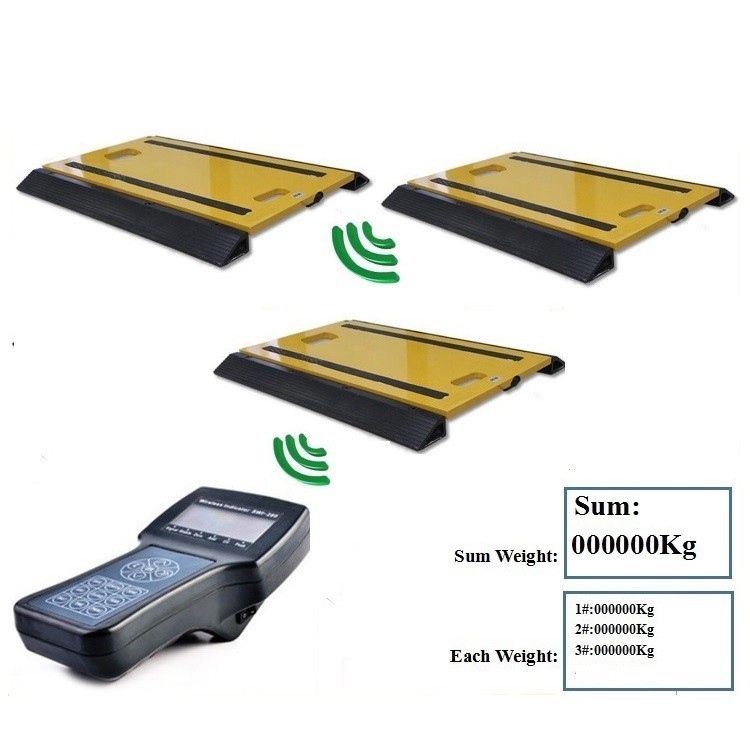

150T Dynamic Scales Static Portable Truck Axle Scales With LCD Display 1





Applications:

1.Double-axle,three-axle compensation.

2.Traffic controlling.

3.Mine factories,docks,freight yards and building sites.





Competitive Advantage:

1.We have more than 10 year experience for manufacturing truck scale, floor scale, animal scale, axle weighing scale etc. We have advanced manufacturing equipment, moreover we are the leader in weighing scale field.
2. We pay attention to scale quality, we pay attention to supervise the quality of products effectively.

3.We will supply customers installation guide and using guide after sales.
4. Full scale weight debugging and calibration
5. We can supply superior quality weighing scale with reasonable price and provide best service
