Home ProductsWeighing Load Cell

Argon - Arc Welded Truck Weigh Scales 50t Column Type Load Cell

Certification
China Changzhou Skyerscale Co.,Limited certification
China Changzhou Skyerscale Co.,Limited certification
I'm Online Chat Now

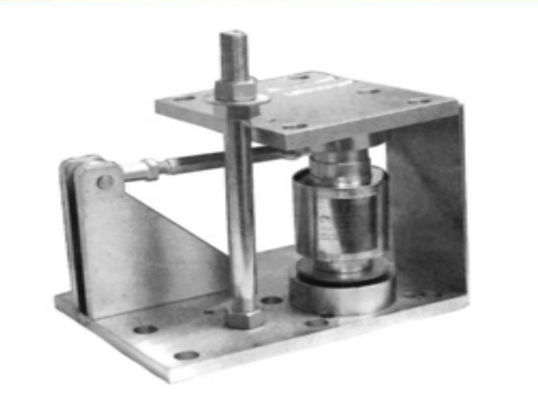

Argon - Arc Welded Truck Weigh Scales 50t Column Type Load Cell

Argon - Arc Welded Truck Weigh Scales 50t Column Type Load Cell
Argon - Arc Welded Truck Weigh Scales 50t Column Type Load Cell Argon - Arc Welded Truck Weigh Scales 50t Column Type Load Cell Argon - Arc Welded Truck Weigh Scales 50t Column Type Load Cell

Large Image :  Argon - Arc Welded Truck Weigh Scales 50t Column Type Load Cell

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CE
Model Number: LC409
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: carton
Delivery Time: 25days
Supply Ability: 100pcs/m
Detailed Product Description
Material: Alloy Steel Or Stainless Steel Theory: Resistance Sensor
Output: Analog Sensor Type: Column Type
Sealing Class: IP67-68 Usage: Pressure Sensor
High Light:

column weighing load cell 50t

,

Column Type Load Cell

Argon-arc welded truck weighing scale column weighing load cell 50t

Specifications:



Features:

◎Self-restoring rocker pin load cell.

◎Upper and lower inhibitor design, easy to installation.

◎Dynamic respond, and super capacity for anti-overload.

◎Application to truck scale, railway scale, axle scale, storage scale and other weighing equipment.



Technical Parameter:



Rated Load: 10/15/20/30/40/50t Operating Tem. Range: -30~+70℃
Sensitivity: (2.0±0.1%) mV/V Max. Safe Over Load: 150%F.S
Combined Error: ±0.03% F.S Ultimate Over Load: 250%F.S
Creep Error(30min) ±0.02% F.S Recommend Excitation: 10~12V DC
Zero Balance ±1% F.S Maximum Excitation: 15V DC
Temp. Effect On Zero: ±0.017% F.S/10℃ Sealing Class: IP67/IP68
Temp. Effect On Span: ±0.017% F.S/10℃ Element Material: -Alloy /Stainless Steel
Input Resistance: 750±5Ω Cable: Length=12m
Output Resistance: 702±2Ω Citation: GB/T7551-2008/ OIML R60
Insulation Resistance: ≥5000MΩ Mode Of Connection:

Red(Input+),Green(Output+),

Black(Input-),White(Output-)



Argon - Arc Welded Truck Weigh Scales 50t Column Type Load Cell 0

Description:



1.Dynamic respond, and super capacity for anti-overload.

2.Application to truck scale, railway scale, axle scale, storage scale and other weighing equipment.

Argon - Arc Welded Truck Weigh Scales 50t Column Type Load Cell 1

Argon - Arc Welded Truck Weigh Scales 50t Column Type Load Cell 2



Applications:



Simple to install, easy to use, good interchangeability suitable for electronic truck scale, railroad scale, hopper scale and various special scales.



Competitive Advantage:


1. Low MOQ: It can meet your promotional business very well;



2. Good Service: We treat clients as friends;



3. High Quality: We have strict quality control system. Good reputation in the market.
