| Material: | Alloy Steel ,stainless Steel | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor, 2.0mv/v | Usage: | Pressure Sensor |
| Sealing Class:: | IP67-IP68 | Name: | Elevator Load Cell |
| High Light: | Beam Type Load Cell,High Accuracy Load Cell |
||

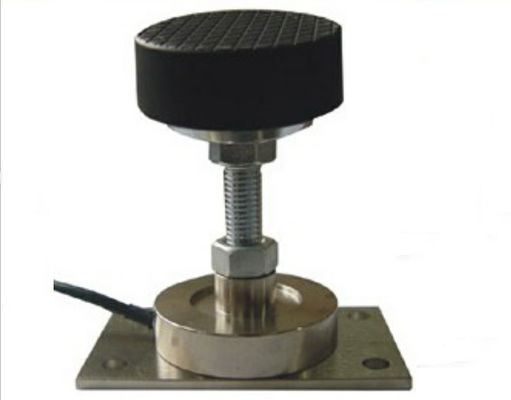

Alloy steel elevator load weighing device load cell/3t force sensor micro force load sensor
Specifications:
| Rated Load: | 1.2/3t | Input Resistance: | 760±10Ω |
| Rated Output: | 2.0±0.02%m V/V | Output Resistance: | 700±2Ω |
| Total Error: | ±0.5%FS | Insulation Impedance: | ≥5000MΩ |
| Repeatability: | ±0.1%FS | Safe Overload: | 150%F.S |
| Creep (30min) | ±0.05FS/30min | Ultimate Overload: | 200%F.S |
| Zero Balance: | ±1% F.S | Construction: | Alloy Steel, SS |
| TC SPAN: | ±0.02%FS/10℃ | Protection Class: | IP66, IP67 |
| Operating Temp. Range: | -30~70℃ | Citation: | GB/T7551-2008/ OIML R60 |
Description:
LCE008 series elevator load weighing device is designed specially to support the elevator main board, it transforms weight into electric signal through strain gauge sensor and transmits to the main board through CAN Bus communication, the elevator load weighing main board will output a analog compensation voltage to the inverter, elevator load weighing so as to enhance the startup comfort.
Applications:
Weighing functions
Competitive Advantage:
1. Professional manufacturer with 10 years
2. OEM/ODM service acceptable
3. 100% inspection
4. Warranty: one year
