Product Details:
Payment & Shipping Terms:
|
| Material: | Alloy Steel ,stainless Steel | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor, 2.0mv/v | Usage: | Pressure Sensor |
| Sealing Class:: | IP67-IP68 | Name: | Elevator Load Cell |
| High Light: | High Accuracy Load Cell,Tension Link Load Cell |
||
Specifications:
| Rated Load: | 500/1000/2000kg | Input Resistance: | 1000±10Ω |
| Rated Output: | 2.0±0.02%m V/V | Output Resistance: | 1000±2Ω |
| Total Error: | ±0.5%FS | Insulation Impedance: | ≥5000MΩ |
| Repeatability: | ±0.1%FS | Safe Overload: | 150%F.S |
| Creep (30min): | ±0.05FS/30min | Ultimate Overload: | 200%F.S |
| Zero Balance: | ±1% F.S | Construction: | Alloy Steel, SS |
| TC SPAN: | ±0.02%FS/10℃ | Protection Class: | IP65 |
| Operating Temp. Range: | (-30~70) ℃ | Citation: | GB/T7551-2008/ OIML R60 |
Description:

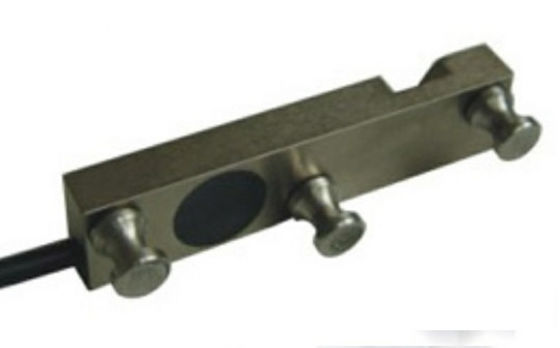

Elevator Sensor LCE006 has supplied optical elevator sensor solutions to the elevator industry, including light curtains, customised sensor solutions for door safety and photoelectric sensors and guarding and hoist way monitoring.
Applications:
Weighing functions
Competitive Advantage:
1. Professional manufacturer with 10 years
2. OEM/ODM service acceptable
3. 100% inspection
4. Warranty: one year
