Lift Safety 500kg Elevator Weighing Load Cell Reliability For Industrial Sectors

Certification
China Changzhou Skyerscale Co.,Limited certification
China Changzhou Skyerscale Co.,Limited certification
I'm Online Chat Now

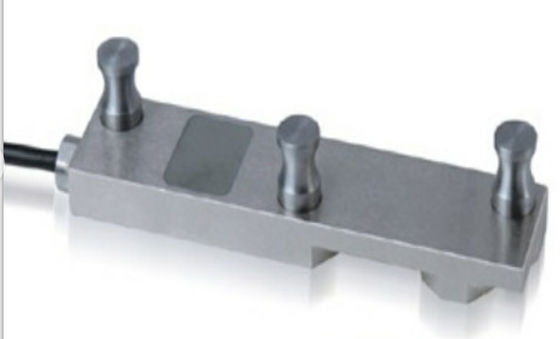

Lift Safety 500kg Elevator Weighing Load Cell Reliability For Industrial Sectors

Lift Safety 500kg Elevator Weighing Load Cell Reliability For Industrial Sectors
Lift Safety 500kg Elevator Weighing Load Cell Reliability For Industrial Sectors

Large Image :  Lift Safety 500kg Elevator Weighing Load Cell Reliability For Industrial Sectors

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CE
Model Number: LCE002
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: carton
Delivery Time: 25days
Supply Ability: 100pcs/m
Detailed Product Description
Material: Alloy Steel ,stainless Steel Theory: Resistance Sensor
Output: Analog Sensor, 2.0mv/v Usage: Pressure Sensor
Sealing Class:: IP67-IP68 Name: Load Cell Sensor
High Light:

Beam Type Load Cell

,

Tension Link Load Cell

Lift Safety 500kg Device Elevator weighing Load Cell,Weight Sensor



Specifications:



Lift Safety 500kg Elevator Weighing Load Cell Reliability For Industrial Sectors 0

Rated Load: 500kg Input Resistance: 1060±10Ω
Rated Output: 2.0±0.02%m V/V Output Resistance: 1000±2Ω
Total Error: ±0.5%FS Insulation Impedance: ≥5000MΩ
Repeatability: ±0.1%FS Safe Overload: 150%F.S
Creep (30min) ±0.05FS/30min Ultimate Overload: 200%F.S
Zero Balance: ±1% F.S Construction: Alloy Steel, SS
TC SPAN: ±0.02%FS/10℃ Protection Class: IP65
Operating Temp. Range: (-30~70) ℃ Citation: GB/T7551-2008/ OIML R60



Description:



1. LCE002 Elevator load cells are needed to measure weight and force with a high precision and reliability.

2. LCE002 Elevator load cells are most trustworthy systems with application in different industrial sectors, such as cranes, automotive industry, industrial weighing and handling elevators.

3. An improved measuring device for measuring the load of an elevator is specially development



4.Applications:



Weighing functions



Competitive Advantage:


1. Professional manufacturer with 10 years

2. OEM/ODM service acceptable

3. 100% inspection

4. Warranty: one year
