Name: 30t Double Shear Beam Type Weighing Load Cell
Brand: Changzhou Skyerscale Co.,Limited
SKU: HM9B
Price: 117.00 USD
Availability: InStock

30t Double Shear Beam Type Weighing Load Cell

10pcs

MOQ

negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Alloy Steel

Theory: Resistance Sensor

Output: Analog Sensor

Usage: Consumption Sensor

Name: Low Force Load Cell

Rated Load: 50t

Highlight:

30t Beam Type Load Cell

double shear beam load cell

Basic Infomation

Place of Origin: China

Brand Name: ZEMIC

Certification: OIML

Model Number: HM9B

Payment & Shipping Terms

Packaging Details: cartons and pallet

Delivery Time: 15days

Supply Ability: 1000pcs/m

Gallery

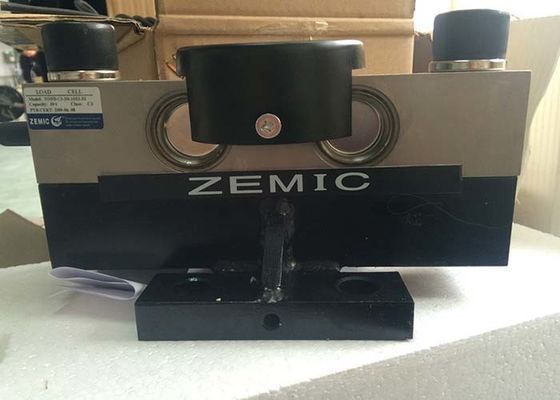

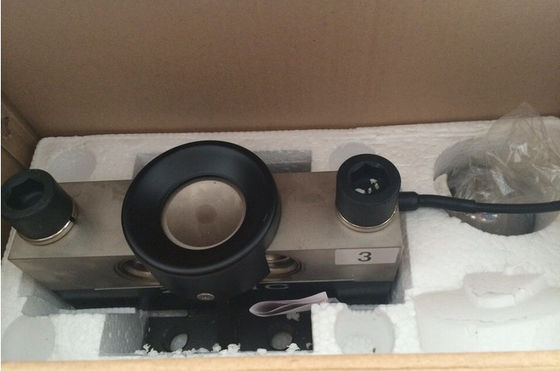

30t Double Shear Beam Type Weighing Load Cell

Product Description

ZEMIC HM9B 30t double shear beam load cells for weighbridge, truck scale

Specifications:

Capacity	t	10/20/25/30/40SE/40/50
Accuracy		C1	C2	C3	A5M	B10M
Approvals				OIML R60 C3
Maximum number of verification intervals	n max	1000	2000	3000	5000	10000
Minimum load cell verification interval	v min	Emax/3000	Emax/5000	Emax/7500	Emax /15000	Emax /10000
Combined error	(%FS)	≤±0.050	≤±0.030	≤±0.020	≤±0.026	≤±0.050
Creep	(%FS/30min)	≤±0.038	≤±0.024	≤±0.016	≤±0.017	≤±0.040
Temperature effect on sensitivity	%FS/10℃)	≤±0.028	≤±0.017	≤±0.011	≤±0.013	≤±0.040
Temperature effect on zero	(%FS/10℃)	≤±0.047	≤±0.023	≤±0.015	≤±0.014	≤±0.020
Output sensitivity	mv/v)	2.0±0.002	2.3±0.002	2.4±0.002	1.9±0.002	1.8±0.002
Input resistance	(Ω)	700 ±7			775 ±5	750 ±7
Output resistance	(Ω)	(Ω) 700 ±7
Insulation resistance	(MΩ)	≥ 5000(50VDC)
Zero balance	(%FS)	1.5
Temperature, compensated	(℃)	-10~+40
Temperature,allowed	(℃)	-35~+65
Excitation, Recommended	(V)	5~12(DC)
Excitation,Max	(V)	18(DC)
Safe overload	(%FS)	150
Ultimate overload	(%FS)	300

Outline Dimension mm(inch):

Capacity:10t to 50t.
High accuracy.
Alloy steel construction.
Easy installation, reliable performance.

Description:

1. HM9B load cell are available in the capacities 10t to 50t.
2. Alloy steel construction, nickel plated , hermetically welded,oil-proof,waterproof and anti-corrosive gas and medium making ,it suitable for all kinds of environments.
3. Dual shear beam, Suitable for electronic truck scales,railway scales and other electronic weighing devices.
4.It is safety and anti-explosion product that can be used in atrocious weather and hazardous areas.

Applications:

It is used in truck scale/weighbridge

Competitive Advantage:

1. OEM is available

2. 24 hours online service

3. Inquiry will be replied in 2 hours

4. One year warranty

5. 1% free spare part

6. Free parts for any breakdown with convincing evidence
