Product Details:
Payment & Shipping Terms:
|
Rated Load: | 10ton | Display Type: | LCD |
---|---|---|---|
Power Supply: | 220V/50HZ Or 110v 60HZ | Type: | Crane Scale |
Place Of Origin: | China | ||

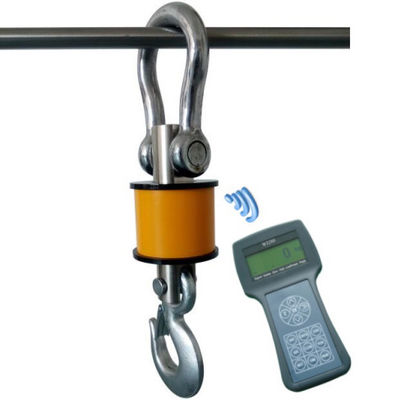

Highlight: | 10t Electronic Crane Scale,LCD digital hanging weighing scale |
Specifications:
Dimension:
Type | Cap. | Index Value | Division | Dimension (mm) | Weight | ||||||
Ton | Kg | B | C | D | E | F | G | H | Kg | ||
CS-SWB2 | 1t | 1 | 3000 | 120 | 108 | 580 | 76 | 70 | 46 | 40 | 10 |
2t | 1 | 3000 | 120 | 108 | 580 | 76 | 70 | 46 | 40 | 10 | |
3t | 1 | 3000 | 120 | 108 | 580 | 76 | 70 | 46 | 40 | 10 | |
5t | 2 | 2500 | 120 | 108 | 680 | 88 | 75 | 60 | 50 | 15 | |
10t | 5 | 2000 | 120 | 108 | 780 | 114 | 95 | 71 | 60 | 27 |
Description:
Accuracy class according to international standard three scales .
Battery charging time of about 70 hours working time
Safe overload 150% F.S
Destruction of overloading 300% F.S
Operating temperature -10 ~ 50 ℃
Environment Humidity <90% R.H
Monitor specifications 5 30mm (1.2 " ) LED high brightness displays.
Reading stabilization time <3S
Remote distance <25M
WI280 receive Indicator:
Interval Value:1/2/5/10/20/50/100
Display:192*64 dots display;6 status indicators(backlight)
Power: Lithium Battery, use 48 hours for one Charging
Environment temperature: Scale body -10℃~50℃;Instrument 0℃~40℃
Maximum wireless transceiver distance:>300m(open area)
Radio frequency:434MHz
Applications:
1. vehicle lifting
2. Railway terminal, iron and steel metallurgy, energy mines, factories, mines and other enterprises in the field of heavy cargo loading and unloading weighing.
