Product Details:
Payment & Shipping Terms:
|
| Item: | Stainless Steel Junction Box | Material: | Stainless Steel |
|---|---|---|---|
| Accommodation Mode: | Singal Adjustment Or Voltage | Waterproof Grade: | IP67 |
| Load Cell Type: | Analogue Or Digital | ||
| High Light: | SS 4 wire junction box,Floor scale accessories |
||

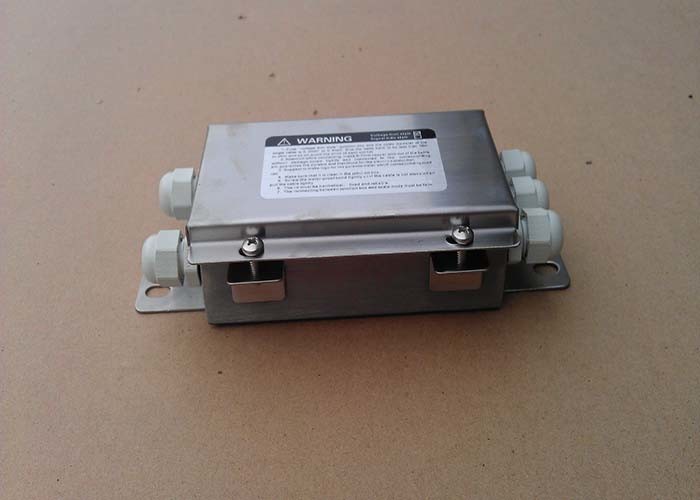

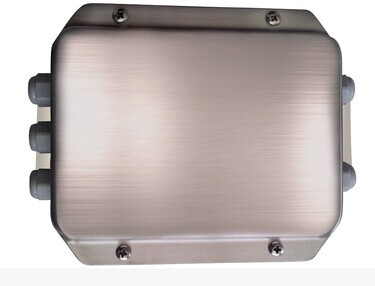

Floor scale accessories waterproof stainless steel 4 wire junction box
Specifications:
| Type | Junction Box outer size with connector L*W.H (mm) |
|
JB-4 s.s. (Adjust voltage) |
175*65*40 |
|
JB-4 s.s. (Adjust signal) |
175*65*40 |
|
JB-4 stainless steel (Adjust voltage) |
175*75*45(large size) |
|
JB-4 stainless steel (Adjust signal) |
175*75*45(large size) |
|

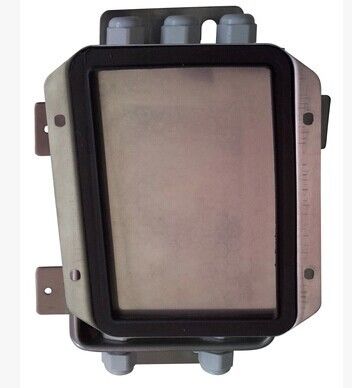

JB-4 stainless steel (dustproof, with waterproof rubber washer, Adjust signal) |
185*134*35 |
Description:

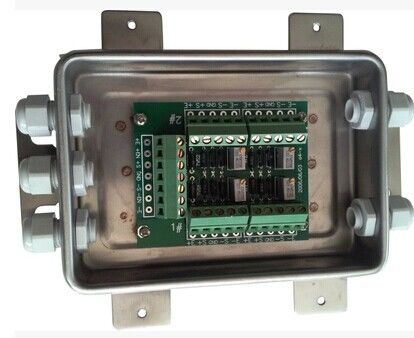

As divergence exists in the key material of load cell----strain piece and elastomeric, and in manufacturing technology, parameters of each load cell are variable. It hasbeen found in the study that the unbalance is mainly caused by different sensitivity (mV/V) of load cell. Now the potentiometer in junction box is adjusted to keep sensitivity (mV/V) of load cell stable, thus maintaining the balance of the weighing apparatus.
BOX Series Analogue Load Cell Junction Box is the instrumental part to adjust the balance for large scale weighing
apparatus.
Application:
Industrial scales-buffering scale, pallet truck scale, floor weighing scale, U shape scale etc.
Competitive Advantage:
1. your inquiry and e-mail will be replied within 12 hours.
2. If you need to develop product with your own specification, we have professional engineers to work it out.
3. Never leave customer alone, solve problems with customer together.
4. Customer first, quality first, service first!
