Product Details:
Payment & Shipping Terms:
|
| Type: | Terminal For Truck Scale | Display: | 6-digit 20mm RED LED |
|---|---|---|---|
| Baud Rate: | 600, 1200, 2400, 4800, 9600 Optional | Data Storage: | 1000 Truck Records |
| Transimission Method: | RS232, RS422optional RS485 Optional | Name: | Digital Scale Indicator |
| High Light: | industrial truck scales Indicator,D2 Digital Scale Indicator |
||

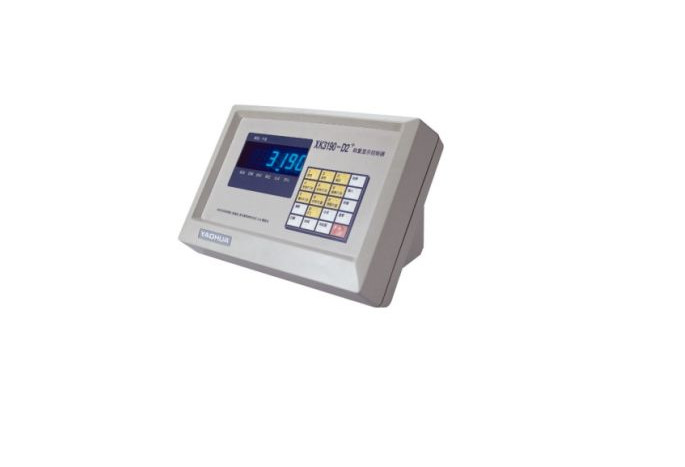

xk3190 D2 digital weighing indicator for industrial truck scales
Specifications:
| Model | D2+ | D2+P |
| Input signal range | 0mV~30mV | |
| Input sensitivity | 1V/e | |
| Load cell Excitation | Dc 15V | |
| Max. load cell connection | 8 at 350 ohm | |
| Display | 6 bits VFD, 6 status indications | |
| Optional interface | 4-20mA analog output | |
| Standard interface | RS232C serial communication, Scoreboard at 20mA current loop Parallel printer |
|
Description:
D2+ Weighing indicator
1. Double integral A/D conversion technology
2. Multi-function and strong adaptability
XK3190 D2+ Weighing indicator
- A/D conversion with readability 1/30000
- Zero range setup (auto/manual)
- Auto/manual, daily/sorted report print setup
- Fast filled weighing bill print setup
- Save 255 vehicle ID/net weight, 100 cargo ID, and 512 weighing records
- Weighing data save protection in case of power off
- Manual linearity-correction calibration
- Max. 5-point non-linearity correction
Applications:
Weighing display
Competitive Advantage:
1. MOQ:
For common products, we don't have MOQ limit, you can order any quantity you want.If you need scales with your specification, logo, packing, etc, please negotiate with us.
2. Shipping:
a. International Express: DHL/TNT/FEDEX/UPS/EMS (For sample)
b. By air (For sample orders.)
c. By sea (15-45 days), port of loading: Shanghai,China
d. By domestic logistics to your forwarder. (2-3 days)
3. Warranty:
All our scales are with 1 year warranty. During the warranty time, if any scales is out of service because of quality problem, we will send you spare parts and teach you how to repair until problem solved.
