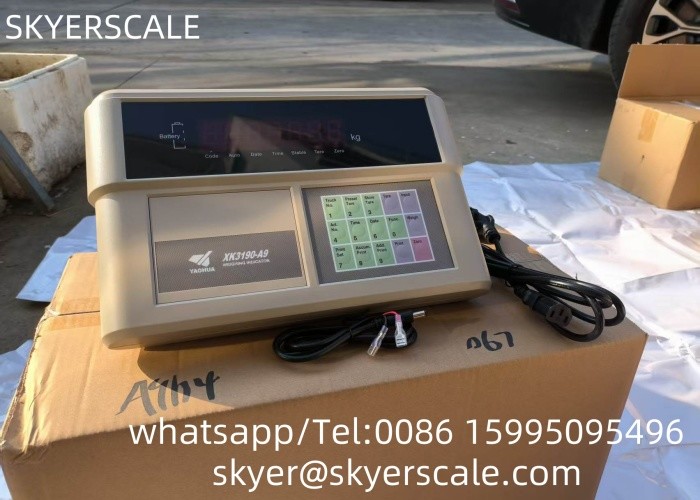

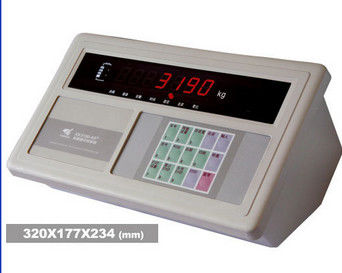

Anti - Disturbance Yaohua Weighing Indicator With LED Display

Industrial Digital Weighing Apparatus Yaohua A9 indicator for truck scale

Specifications:

Standard function

 * AC/DC power supply, standard chargeable battery
* 7-bits 0.8 inch LED display, 3-level battery indications
* Able to setup zero-tracking range, zero(auto/manual) range
* With 2-point calibration correction function, 2 compensation calibration methods
* Able to save 1001 weighing records, 1000 truck records consisting of truck ID and corresponding tare weight, 201 records of goods
* Able to print across and upright weighing bill
* Able to print different statistical reports
* Standard RS232 communication interface(RS422/RS485 optional)
* Standard scoreboard interface with current loop
* Standard parallel print interface
* Able to connect assigned thermal printer
* XK3190-A9+P with built in printer

Technical parameter

* A/D conversion method: ∑-Δ
* Input signal range:-16mV~18mV
* A/D conversion speed: 10times/sec.
* A/D conversion code: 1 million code
* Load cell excitation: DC 5V
* Max. connection number of load cell: 8 at 350 ohm/16 at 700 ohm
* Load cell connection mode: 6 wire, auto compensation for long distance
* Division: 1/2/5/10/20/50/100 optional
* Clock: real clock without effect when power off
* Transimission: current loop/RS 232 signal
* Baud rate:600
* Transimission distance:≤30 meters
* Serial communication:interface
* Transimission method:RS232/RS422(optional)/RS485(optional)
* Baund rate:600/1200/2400/4800/9600(optional)
* Transmission distance:RS232:≤30 meters;RS422/RS485:≤1200 meters Print interface
* Standard parallel output interface

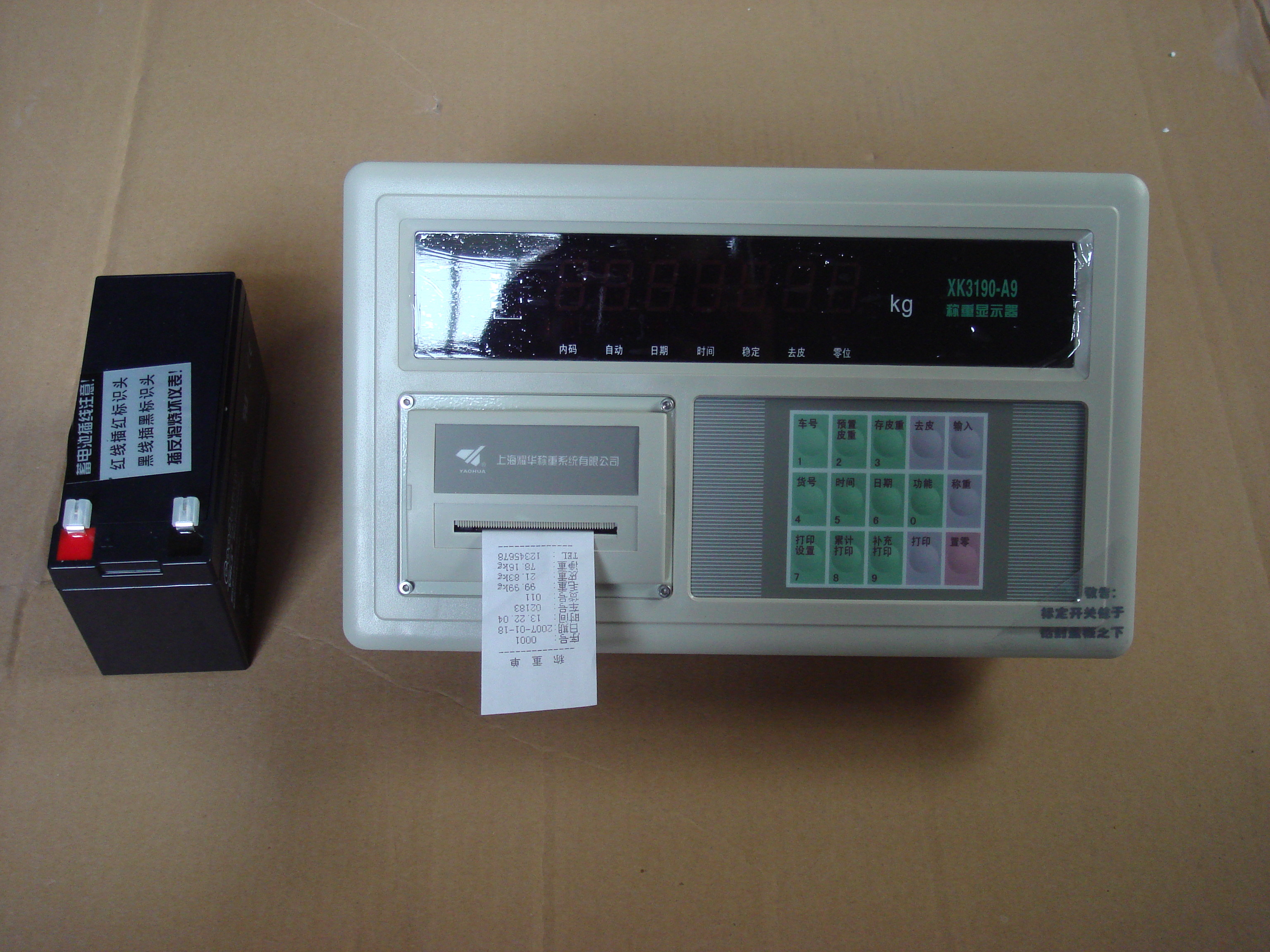

* Built-in micro-printer(A9+P)
* Data storage:1000 truck records consisting of truck ID and corresponding tare weight 201cargo ID.1001 weighting records
* Power supply:AC 220V(-15%-+10%);50Hz(-2%-+2%)
DC 6V/10Ah External battery rechargeable

Description:

Weighing indicator XK3190-A9+ adopts high precision ∑-Δ A/D conversion technology, widely applied in electronic floor scale,electronic truck scale and so on alike static weighing system equipped with 1~8 load cell.

Feature:

* Compatible with all functions of model XK3190-A9;
* ∑-Δ high precision A/D conversion method, able to process input signal from -16mV to 18mV
* Good consistency, no need to re-calibrate a scale if change the former indicator, high precision
* DC power socket with anti-connect and anti-short circuit protection;
* With strong anti-disturbance function

Applications:

Weighing display

Competitive Advantage:

1. Professional manufacturer with 10 years

2. OEM/ODM service acceptable

3. 100% inspection

4. Warranty: one year
