Anti Corrosion High Tensile Strength Wireless Load Cell 30t 120t

Certification
China Changzhou Skyerscale Co.,Limited certification
China Changzhou Skyerscale Co.,Limited certification
I'm Online Chat Now

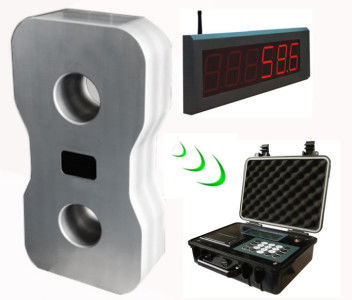

Anti Corrosion High Tensile Strength Wireless Load Cell 30t 120t

Anti Corrosion High Tensile Strength Wireless Load Cell 30t 120t
Anti Corrosion High Tensile Strength Wireless Load Cell 30t 120t

Large Image :  Anti Corrosion High Tensile Strength Wireless Load Cell 30t 120t

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CE
Model Number: SW8W
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: carton
Delivery Time: 25days
Supply Ability: 100pcs/m
Detailed Product Description
Material: Alloy Steel ,stainless Steel Theory: Resistance Sensor
Output: Digital Sensor Sealing Class:: IP67-IP68
Name: Industrial Load Cells
High Light:

Shackle Weighing Load Cell

,

120t Wireless Load Cell

Mutil-Channel Shackle weighing Load Cell 3t 6t 17t 30t 120t



Specifications:



Load Rating Weight A B C D E F G
(Ton) (Kg) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
2 1.3 230 74 24 20 37 156 50
5 1.8 250 84 32 26 37 176 48
12.5 3.5 300 108 50 40 54 192 81
25 7 350 144 65 52 72 206 96
35 10.8 400 168 75 58 84 232 106
50 17.3 450 202 90 71 101 248 121
75 29.5 480 244 110 84 122 236 141
120 56.5 550 270 141 97 130 290 172
150 78.9 620 290 161 110 150 320 192
200 122 730 340 170 133 180 370 201
250 158 790 390 189 143 200 390 220
300 203 860 430 189 153 225 410 220
400 304 1020 520 205 178 270 480 236
500 408 1120 560 230 188 310 500 261



Wireless Load Links Typical Specifications:

Rate Load: 1/205/5/12/25/35/50/75/100/150/200/250/300/500T
Battery Type: 18650 rechargeable batteries or polymer batteries (7.4v 2000 Mah)
Proof Load: 150% of rate load Max. Safety Load: 125% F.S.
Ultimate Load: 400% F.S. Battery Life: ≥40 hours
Power On Zero Range: 20% F.S. Operating Temp.: - 10℃ ~ + 40℃
Manual Zero Range: 4% F.S. Operating Humidity: ≤85% RH under 20℃
Tare Range: 20% F.S. Remote Controller Distance: Min.15m
Stable Time: ≤10seconds; System Range: 500~800m
Overload Indication: 100% F.S. + 9e Telemetry Frequency: 470mhz



Dimension:



Front view cabled                                       Side view cabled

Anti Corrosion High Tensile Strength Wireless Load Cell 30t 120t 0  Anti Corrosion High Tensile Strength Wireless Load Cell 30t 120t 1



Description:



Their rugged construction makes them ideal for lifting and weighing operations in the most extreme environments, including marine, offshore and onshore applications. Manufactured from high tensile, aerospace grade aluminium, the units are anodised to protect against corrosion. The link loading holes are bevelled so that torsional effects are minimised, with an internal antenna for added protection.



At China Industries we have over 10 years experience designing, manufacturing and supplying load cells of the highest quality. We can supply all your load cell requirements and offer expert load cell and applications advice.View our load links range online today or contact our friendly team for specialist load cell and applications advice.



Competitive Advantage:

  • High quality and Durable
  • Competitive Price
  • Adequate Stock
  • Fast Delivery
  • Convenient Transportation
