|Material:||Alloy Steel ,stainless Steel||Rated Load:||500t|
|Type:||Wireless Load Cell||Sealing Class:||IP67/IP68|
|Color:||Silver Or Do As Your Requirement||Warranty:||1year|
Shackle weighing Load Cell,
weighing Load Cell 3t

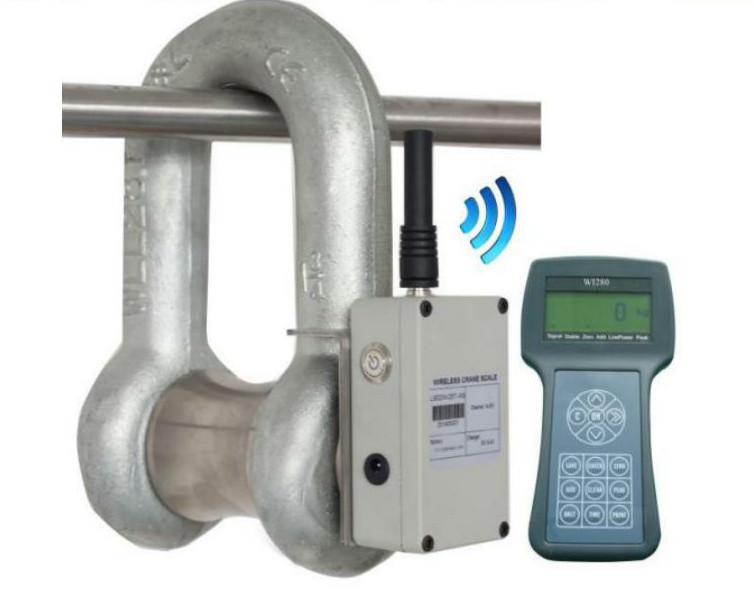

Mutil-Channel Shackle weighing Load Cell 3t 6t 17t 30t 120t
|Full Load Ton||Max. Proof Load Ton||Normal Size ‘A’||Inside Length‘B’||Inside Width ‘C’|
Note: All dimensions are subject to change according actual use as a standard.
Wireless Load Links Typical Specifications:
|Proof Load:||150% of rate load|
|Ultimate Load:||400% F.S.|
|Power On Zero Range:||20% F.S.|
|Manual Zero Range:||4% F.S.|
|Tare Range:||20% F.S.|
|Overload Indication:||100% F.S. + 9e|
|Max. Safety Load:||125% F.S.|
|Battery Life:||≥40 hours|
18650 rechargeable batteries or polymer batteries
|Operating Temp.:||- 10℃ ~ + 40℃|
|Operating Humidity:||≤85% RH under 20℃|
|Remote Controller Distance:||Min.15m|
|System Range:||500~800m (In Open Area)|
1. The WaterWeights range of load shackles complements our standard cabled version, and are ideal for situations where the use of traditional cable shackles would limit distance or movement, or where for safety reasons, a greater distance is needed between the load shackles and the operator.
2. In addition to the benefits of increased safety and maneuverability, the load shackles is far more convenient to use, and eliminates the problems associated with long lengths of trailing cable which become easily snagged and are prone to damage.
3. The hand-held display can store up to 20 different transducer parameters which enables one display to accommodate several load shackle signals, and by using a receiver/ data converter that gives RS485 output, the number of monitored transducers can be increased to as many as 32. Battery check, data protection and error detection are also standard features.
4. The shackle load range starts at 3t , with the top load only limited by the availability of shackle forgings, currently around 500t. Normal operating distance is around 800 meters subject to operating conditions.
5. All load shackles come with calibration certificate. Optional carrying cases are available for size up to a 500t rating.
150t to 1000t available on request.
Where particular requirements are critical or load cells of a higher specification are required, we would be delighted to assist.
Suitable for hopper scale, scale, roller scale,continuous casting ladle electronic scale and various special weighing apparatus
1. We not only provide the weighing device, at the same time to undertake engineering orders, and provide personalized custom services to you.
2. We will work closely with you to analyze your measurement task and design the matching solution. Through rapid engineering (CAD) you get first concepts for your transducer in a short time. Advice on conceptual design is free for you.
3. After having agreed the concept with you, we provide you with a quote for the customized transducer that really meets your unique requirements.
4. We have twenty years of manufacturing experiences, it help us get a prototype of your sensors in a short time.If the prototype meets your requirements, production starts.
