Product Details:
Payment & Shipping Terms:
|
Material: | Alloy Steel ,stainless Steel | Rated Load: | 10t |
---|---|---|---|
Type: | Wireless Dynamometer | Display Type: | LCD |
Color: | Silver | Name: | Telemetry Load Cell |
Highlight: | steel weighing Load Cell sensor,weighing Load Cell 500kg |

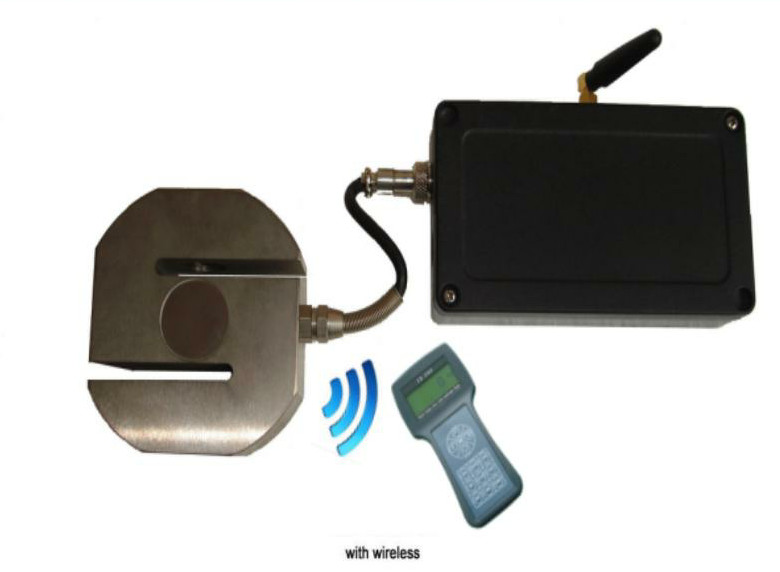

Wireless alloy steel weighing Load Cell sensor 500kg 1t 5t 10t
Specifications:
Cap/Size | A | B | C | H | T |
20~150kg | 70 | 12 | 76 | 64 | M8 |
200~500kg | 70 | 20 | 76 | 64 | M12 |
0.75~1t | 70 | 25 | 76 | 64 | M12 |
1.5~5t | 90 | 32 | 95 | 90 | M20 |
7.5~10t | 90 | 40 | 95 | 90 | M24 |
Technical Parameter:
Rated Load: | 20/50/100/150/200/300/500/750kg/1/2/3/5/7.5/10t | ||
Wireless Frequency: | 240GHz | Input Resistance: | 750±5Ω |
Wireless Distance: | Min:500m(default) | Output Resistance: | 702±2Ω |
A/D Conversion Rate: | ≥50 times/seconds | Insulation Resistance: | ≥5000MΩ |
Battery Life: | ≥50 hours | Operating Temp. Range: | -30~+70℃ |
Sensitivity: | (2.0±0.1%) m V/V | Max. Safe Over Load: | 120%F.S |
Combined Error: | ±0.02% F.S | Ultimate Over Load: | 200%F.S |
Creep Error(30min) : | ±0.02% F.S | Recommend Excitation: | 10~12V DC |
Zero Balance: | ±1% F.S | Maximum Excitation: | 15V DC |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Element Material: | Alloy /Stainless Steel |
Citation: | GB/T7551-2008/ OIML R60 |
Notice:
Do not use the wireless load cell in explosive and unsafe place. The wireless range will be effective when in different weather, the load cell with the indicator in different place, orientation or obstruct from .For charge: according to Li-ion battery. Do not excess discharge.
Description:
LC201W series is special load cell for crane scale. Element material made of alloy steel or stainless steel according to customer’s requirement. High precision, strong overload protection capacity and anti-deflective loading. The load cell with special hook and ring, easy installation.
For more detailed information, please contact us!
Applications:
1. Detection device
2. Industrial automatic detection
Competitive Advantage:
1. High quality and Durable
2. Competitive Price
3. Adequate Stock
4. Fast Delivery
5. Convenient Transportation
6. Good Service
