Lifting Weighing Load Cell Sensor Device IP67 - IP68 Overload Force Load Cell

Certification
China Changzhou Skyerscale Co.,Limited certification
China Changzhou Skyerscale Co.,Limited certification
I'm Online Chat Now

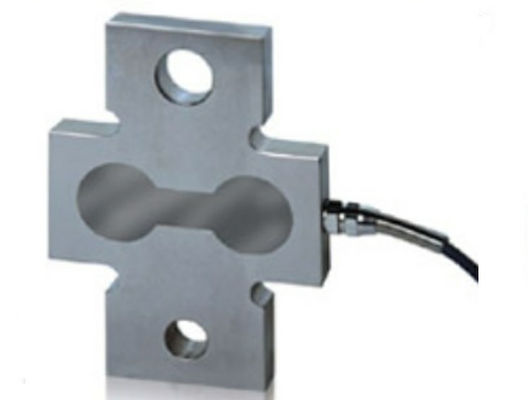

Lifting Weighing Load Cell Sensor Device IP67 - IP68 Overload Force Load Cell

Lifting Weighing Load Cell Sensor Device IP67 - IP68 Overload Force Load Cell
Lifting Weighing Load Cell Sensor Device IP67 - IP68 Overload Force Load Cell

Large Image :  Lifting Weighing Load Cell Sensor Device IP67 - IP68 Overload Force Load Cell

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CE
Model Number: LCE021
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: carton
Delivery Time: 25days
Supply Ability: 100pcs/m
Detailed Product Description
Material: Alloy Steel ,stainless Steel Theory: Resistance Sensor
Output: Analog Sensor, 2.0mv/v Usage: Pressure Sensor
Sealing Class:: IP67-IP68 Name: Stainless Steel Load Cell
High Light:

High Accuracy Load Cell

,

Tension Link Load Cell

Lifting Weight Load Cell Weight Sensor device overload force sensor

Specifications:



Lifting Weighing Load Cell Sensor Device IP67 - IP68 Overload Force Load Cell 0



Rated Load: 1/2/3t Input Resistance: 380±10Ω
Rated Output: 2.0±0.02%m V/V Output Resistance: 350±2Ω
Total Error: ±0.5%FS Insulation Impedance: ≥5000MΩ
Repeatability: ±0.1%FS Safe Overload: 150%F.S
Creep (30min): ±0.05FS/30min Ultimate Overload: 200%F.S
Zero Balance: ±1% F.S Construction: Alloy Steel, SS
TC SPAN: ±0.02%FS/10℃ Protection Class: IP67/IP68
Operating Temp. Range: -30~70℃ Citation: GB/T7551-2008/ OIML R60



Description:



We specialize in design and manufacturing of complete elevators, escalators and related spare parts. So far. supplies various devices included in the elevator overload measurement system , elevator load cell, elevator sensor, control cabinet, controller, elevator push button, elevator door system, elevator car door, landing door.



Applications:



Weighing functions



Competitive Advantage:


1. Professional manufacturer with 10 years

2. OEM/ODM service acceptable

3. 100% inspection

4. Warranty: one year
