Name: Elevator Alloy Steel Weighing Load Cell Sensor 800kg For Automotive Industry
Brand: Changzhou Skyerscale Co.,Limited
SKU: LCE001
Price: 117.00 USD
Availability: InStock

Elevator Alloy Steel Weighing Load Cell Sensor 800kg For Automotive Industry

1pcs

MOQ

negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Alloy Steel ,stainless Steel

Theory: Resistance Sensor

Output: Analog Sensor, 2.0mv/v

Usage: Pressure Sensor

Sealing Class:: IP67-IP68

Name: Alloy Steel Load Cell

Highlight:

Beam Type Load Cell

Tension Link Load Cell

Basic Infomation

Place of Origin: China

Brand Name: OEM

Certification: CE

Model Number: LCE001

Payment & Shipping Terms

Packaging Details: carton

Delivery Time: 25days

Supply Ability: 100pcs/m

Gallery

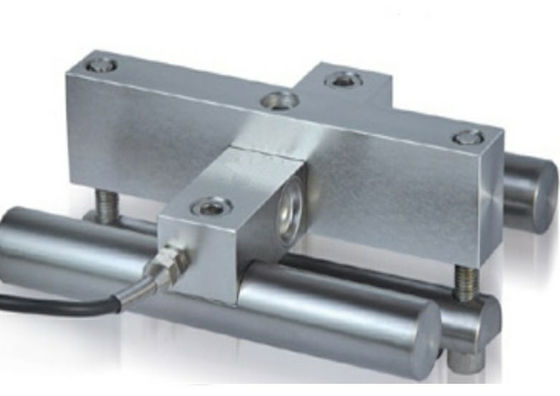

Elevator Alloy Steel Weighing Load Cell Sensor 800kg For Automotive Industry

Product Description

Cheap overload elevator alloy steel weighing load cell sensor 800kg

Specifications:

Rated Load:	5000kg	Input Resistance:	760±10Ω
Rated Output:	2.0±0.02%m V/V	Output Resistance:	700±2Ω
Total Error:	±0.5%FS	Insulation Impedance:	≥5000MΩ
Repeatability:	±0.1%FS	Safe Overload:	150%F.S
Creep (30min)	±0.05FS/30min	Ultimate Overload:	200%F.S
Zero Balance:	±1% F.S	Construction:	Alloy Steel, SS
TC SPAN:	±0.02%FS/10℃	Protection Class:	IP67 / IP68
Operating Temp. Range:	(-30~70) ℃	Citation:	GB/T7551-2008/ OIML R60

Description:

1. LCE001 Elevator load cells are needed to measure weight and force with a high precision and reliability.

2. LCE001 Elevator load cells are most trustworthy systems with application in different industrial sectors, such as cranes, automotive industry, industrial weighing and handling elevators.

3. An improved measuring device for measuring the load of an elevator is specially development .

Applications:

Weighing functions

Competitive Advantage:

1. Professional manufacturer with 10 years

2. OEM/ODM service acceptable

3. 100% inspection

4. Warranty: one year

Please contact us:
whatsapp/Tel:0086 15995095496
skyer@skyerscale.com
www.floorweighingscales.com
