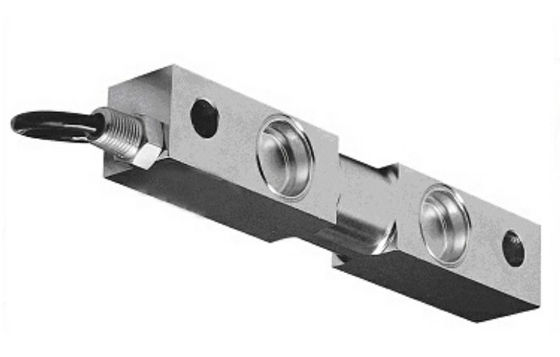

Hermetically Sealed Double Ended Beam Load Cell

1pcs
MOQ
negotiation
Price
Hermetically Sealed Double Ended Beam Load Cell
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Alloy Steel ,stainless Steel
Theory: Resistance Sensor
Output: Digital Sensor
Usage: Pressure Sensor
Sealing Class:: IP67-IP68
Name: Beam Type Load Cell
Highlight:

steel axle load sensor

,

Double Ended Beam Load Cells
Basic Infomation
Place of Origin: China
Brand Name: OEM
Certification: CE
Model Number: DLC101
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 25days
Supply Ability: 100pcs/m
Product Description

Double ended shear beam load cell onboard truck scale,axle load sensor 1klb~75klb



Specifications:

Hermetically Sealed Double Ended Beam Load Cell 0



Cap/Size A B C D E F H
1~5KLB 190.5 158.8 31 31 29 31.5 13
10~25KLB 222.3 190.5 49.3 36.5 42 50.5 20.6
35KLB 222.3 190.5 63.5 38 50 63 20.6
50~75KLB 343 292 75 62 83 76.2 33.3

Dimensions:Unit: mm

Rated Load: 1~75klb Insulation Resistance: ≥5000MΩ
Rated Output: 1000000 Operating Temp. Range: -30~+70℃
Baud Rate:: 9600 Baud Maximum Safe Over Load: 150%F.S
Measuring Rate: 80/sec Ultimate Over Load: 250%F.S
Communication Mode: RS485/4-wire Recommend Excitation Vol.: 10~12V DC
Combined Error: ±0.03% F.S Maximum Excitation Vol.: 15V DC
Creep Error(30min): ±0.02% F.S Sealing Class: IP67/IP68
Zero Balance: ±1% F.S Element Material: Alloy /Stainless Steel
Temp. Effect On Zero: ±0.017% F.S/10℃ Cable: Length=13m
Temp. Effect On Span: ±0.017% F.S/10℃ Citation: GB/T7551-2008/ OIML R60
Mode Of Connection: Red(Input+),Black(Input-),Green(Output+),White(Output-)



Description:

Double Ended Beam Load Cells LC106D is a reliable sealing and mechanical protection of the strain gauge area is ensured by the use of potting compound with a metal cover. LC106D digital load cell. Digital output signal (RS-485/4-Wire). Normal load 1~75 Klb. Self-restoring rocker pin. Easy to install. Hermetically sealed. Produce according OIML R60 to 3000d. Over voltage protection.



Applications:

Weighing functions



Competitive Advantage:
1. Professional manufacturer with 10 years

2. OEM/ODM service acceptable

3. 100% inspection

4. Warranty: one year
