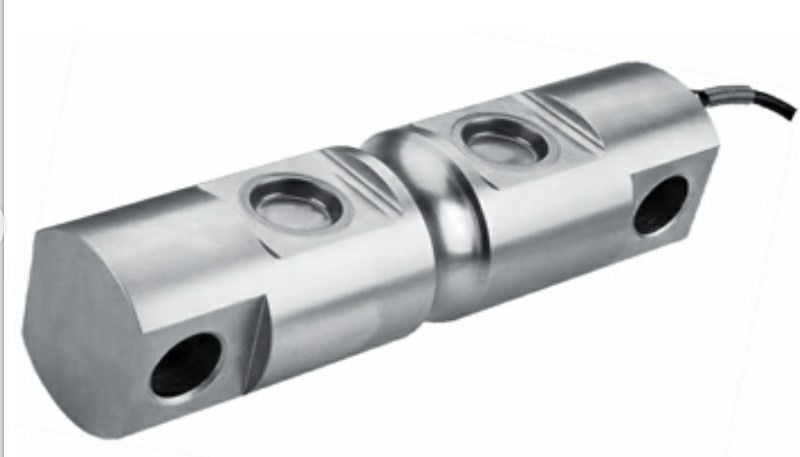

Digital Double Ended Beam weighing Load Cells 200klb used in truck weighbridge
Specifications:
| Cap./Size | A | B | C | D | E | F | G | H |
| 20klb | 206.3 | 174.8 | 133.1 | 28.5 | 49.3 | 37.6 | 12.7 | 16.8 |
| 30~60klb | 260.4 | 215.9 | 164.8 | 60.2 | 76.2 | 69.3 | 25.4 | 26.9 |
| 100klb | 285.8 | 241.3 | 190.2 | 63.5 | 95.3 | 82.3 | 25.4 | 26.9 |
| 150klb | 285.8 | 241.3 | 190.2 | 71.1 | 99.1 | 92.5 | 38.1 | 26.9 |
| 200klb | 409.0 | 330.2 | 254.0 | 116.8 | 136.7 | 131.1 | 50.8 | 39.6 |
| Rated Load: | 5/10/20/30/60/100/150/200klb | ||
| Rated Output: | 1000000 | Insulation Resistance: | ≥5000MΩ |
| Baud Rate:: | 9600 Baud | Operating Temperature Range: | -30~+70℃ |
| Measuring Rate: | 80/sec | Maximum Safe Over Load: | 150%F.S |
| Communication Mode: | RS485/4-wire | Ultimate Over Load: | 250%F.S |
| Combined Error: | ±0.03% F.S | Recommend Excitation Voltage: | 10~12V DC |
| Creep Error(30min): | ±0.02% F.S | Maximum Excitation Voltage: | 15V DC |
| Zero Balance: | ±1% F.S | Sealing Class: | IP67/IP68 |
| Temp. Effect On Zero: | ±0.017% F.S/10℃ | Element Material: | Alloy/ Stainless Steel |
| Temp. Effect On Span: | ±0.017% F.S/10℃ | Cable: | Length=12m~18m |
Description:
Double ended beam load cells LC101D load cell are available in the capacities 50klb~250kl, 20t~100t. LC101D digital load cell. Digital output signal (RS-485/4-Wire). Normal load 10~50t. Self-restoring rocker pin. Easy to install. Hermetically sealed. Produce according OIML R60 to 3000d. Over voltage protection.
Applications:
Double ended shear beam easy instal lation,performance stable, for crane scales, vehicle scales and other weighing systems
Competitive Advantage:
1. Professional manufacturer with 10 years
2. OEM/ODM service acceptable
3. 100% inspection
4. Warranty: one year
