Features Gallery Product Description Request A Quote

Features

Specifications

Material: Alloy Steel ,stainless Steel

Theory: Resistance Sensor

Output: Digital Sensor

Usage: Pressure Sensor

Sealing Class:: IP67-IP68

Name: Torsion Load Cell

Highlight:

10t Spoke Type Load Cell

Pancake Type Load Cell

Basic Infomation

Place of Origin: China

Brand Name: OEM

Certification: CE

Model Number: LC505

Payment & Shipping Terms

Packaging Details: carton

Delivery Time: 25days

Supply Ability: 100pcs/m

Gallery

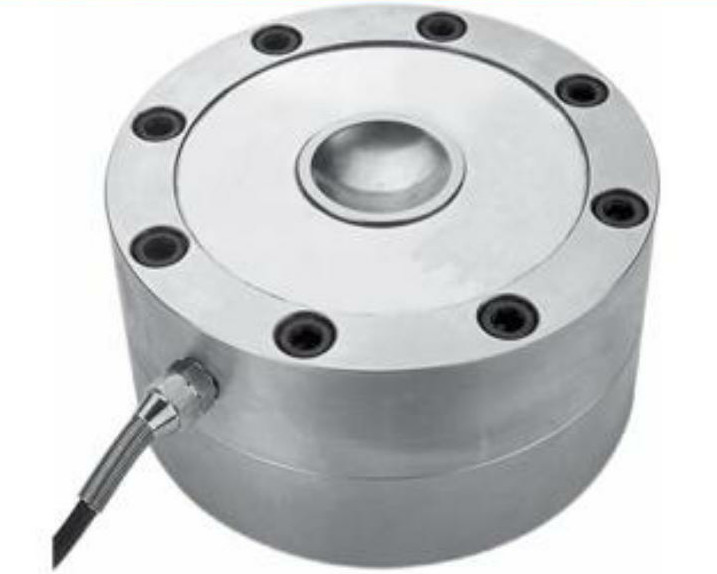

Precision 10t Torsion Ring Spoke / Pancake Load Cell

Product Description

10t High precision Torsional Ring Spoke Type Load Cell/Pancake Type Load Cell made in China

Specifications:

Cap./Size	D	D0	D1	H	H0	H1	H2	M×P
10t	Ø40	Ø138	Ø50	134.5	74	17	35	20×1.5
20,25t	Ø50	Ø165	Ø65	717	86.1	25	50	24×1.5
30t	Ø50.8	Ø165	Ø75	176	86.1	25	55	30×1.5
40t	Ø76.2	Ø165	Ø85	221	95.8	25	65	40×1.5

Rated Load:	10/20/25/30/40t	Operating Temp. Range:	-30~+70℃
Sensitivity:	(2.0±0.1%) m V/V	Max. Safe Over Load:	150%F.S
Combined Error:	±0.02% F.S	Ultimate Over Load:	300%F.S
Creep Error(30min):	±0.02% F.S	Recommend Excitation:	10~12V DC
Zero Balance:	±1% F.S	Maximum Excitation:	15V DC
Temp. Effect On Zero:	±0.02% F.S/10℃	Sealing Class:	IP67/IP68
Temp. Effect On Span:	±0.02% F.S/10℃	Element Material:	Alloy /Stainless Steel
Input Resistance:	385±5Ω	Cable:	Length=L:13m
Output Resistance:	352±2Ω	Citation:	GB/T7551-2008/ OIML R60
Insulation Resistance:	≥5000MΩ	Mode Of Connection:	Red(Input+),Green(Output+), Black(Input-),White(Output-)

Description:

Stronger four-direction side force resistance and overload protection capacity. Moisture proof seal, ideal for hostile environment, Simple to install, good interchangeability. Suitable for various truck scale, railroad scale, etc.

Applications:

Weighing functions

Competitive Advantage:

1. We support small orders,fast delivery for customers to save even more valuable time.

2. We have abundant production and export experience ,best price and good quality.

3. We have global market,has been exported to Chile, UK, Czech, Latvia,Thailand, ViteNam, Chile,Canada,Philippines,Span etc. various countries around the world.

Please contact us:
whatsapp/Tel:0086 15995095496
skyer@skyerscale.com
www.floorweighingscales.com

Tel :	15995095496
Fax :	86-519-83331897
