Product Details:
Payment & Shipping Terms:
|
| Material: | Alloy Steel ,stainless Steel | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Digital Sensor | Usage: | Pressure Sensor |

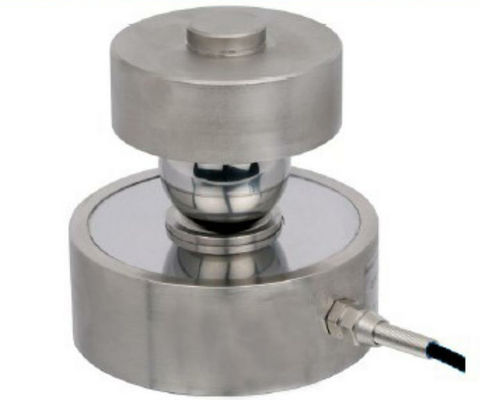

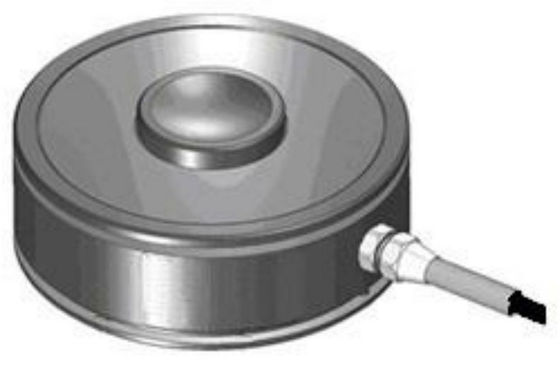

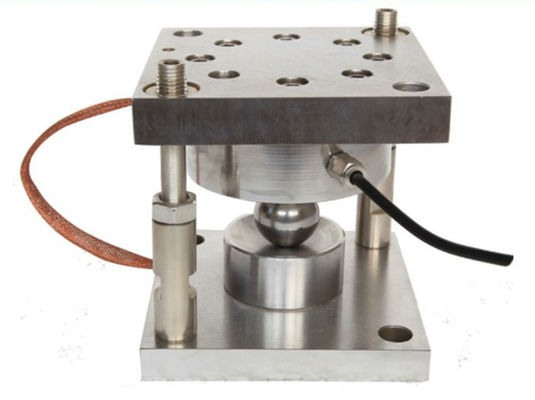

| Sealing Class: | IP67-IP68 | Name: | Torsion Load Cell |
| Highlight: | Torsional Ring Load Cell,Compression Type Pressure Load Cell |
||
Specifications:
| Rated Load: | 10/25/30/40/50/60t | Operating Temp. Range: | -30~+70℃ |
| Sensitivity: | (2.0±0.1%) m V/V | Max. Safe Over Load: | 150%F.S |
| Combined Error: | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
| Creep Error(30min): | ±0.02% F.S | Recommend Excitation: | 10~12V DC |
| Zero Balance: | ±1% F.S | Maximum Excitation: | 15V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Element Material: | Alloy /Stainless Steel |
| Input Resistance: | 750±5Ω | Cable: | Length=L:13m |
| Output Resistance: | 702±2Ω | Citation: | GB/T7551-2008/ OIML R60 |
| Insulation Resistance: | ≥5000MΩ | Mode Of Connection: |
Red(Input+),Green(Output+), Black(Input-),White(Output-) |
Description:
1. The device mainly consists of two parts: main frame buildup from side compression load cell and control indicator, when appear up limited loading, come out sound and light alarm and control start condole to safe direction switch. It make full use of steel wire tension theory, easily assemble, safety performance good, indicator can choose with display or without display double type mode.
2. The lifting weigh limiter meter adopts single chip-controlled technology. Its main function are that measuring and indicating the lifting weight timely as connecting the load cell’s signal, sending out acoustic optic alarm, outputting control signal and cutting off the rising looping power supply when weight reaches the stipulated value.
Applications:
Weighing functions
Competitive Advantage:
1. We provide professional consultation guidance, site installation guidance and debugging guidance.
2. All the products provide 1 year free warranty,life-long maintenance.
3. We provide telephone technical guidance for other provinces and overseas.
