Product Details:
Payment & Shipping Terms:
|
| Material: | Alloy Steel | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Type: | Shear Beam Type |
| Name: | Shear Beam Type Load Cell | Usage: | Load Cell For Scales |
| High Light: | Beam Type Load Cell,Tension Link Load Cell |
||
Specifications:
| Rated Load: | 10/20/30/40t | Operating Temperature Range | -30~+70℃ |
| Sensitivity: | (2.0±0.1%) mV/V | Maximum Safe Over Load: | 150%F.S |
| Combined Error: | ±0.1% F.S | Ultimate Over Load: | 300%F.S |
| Creep Error(30min): | ±0.02% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Zero Balance: | ±1% F.S | Maximum Excitation Vol.: | 15V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Element Material: | Alloy Steel / Stainless Steel |
| Input Resistance: | 750±5Ω | Cable: | Length=L:13m |
| Output Resistance: | 702±2Ω | Citation: | GB/T7551-2008/ OIML R60 |
| Insulation Resistance: | ≥5000MΩ | Mode Of Connection: |
Red(Input+),Green(Output+), Black(Input-),White(Output-) |
Description:

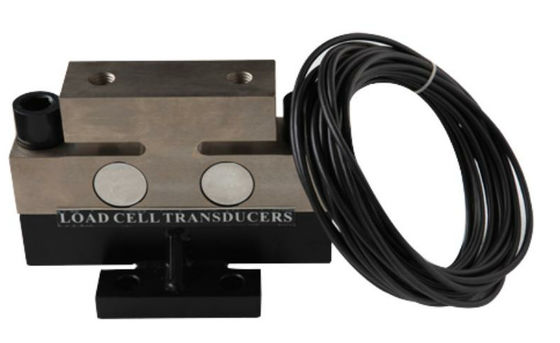

1. LC107 load cell are available in the capacities 10t to 50t.And the customized capacity is available by request.
2. Alloy steel construction, nickel plated , hermetically welded, oil-proof,waterproof and anti-corrosive gas and medium making it suitable for all kinds of environments.
3. Dual shear beam, Suitable for electronic truck scales,railway scales and other electronic weighing devices.
4. It is safety and anti-explosion product that can be used in atrocious weather and hazardous areas.
Applications:
Simple to install, easy to use, good interchangeability suitable for electronic truck scale, railroad scale, hopper scale and various special scales.
Competitive Advantage:
1. We support small orders,fast delivery for customers to save even more valuable time.
2. We have abundant production and export experience ,best price and good quality.
3. We have global market,has been exported to Chile, UK, Czech, Latvia,Thailand, ViteNam, Chile,Canada,Philippines,Span etc. various countries around the world.
