Material: | Alloy Steel | Theory: | Resistance Sensor |
---|---|---|---|
Output: | Analog Sensor | Type: | Compression Type |
Name: | Compression Type Load Cell | ||
Highlight: | alloy steel Lateral pressure load cell,10t compression type load cell |
Specifications:
(1) Application:Single steel wire rope force not more than 10t crane machine
(2) Action errors:≦5%FS
(3) Comprehensive display error:≦5%FS
(4) Alarm Point
Warning: 90%FS
Alarm delay: 05%FS (for 2 consecutive seconds after overrun relay)Immediately Warning: 110% FS
(5) Maximum safe over load :150%FS
(6)Power Supply:AC220V or AC380V (we can do according to customer’s requirement.)
(7) Use Of Environmental Conditions:
Temperature Range:-20℃~+60℃,Relative Humidity:90%RH
(8) Relay Contact Capacity:5A/380V
(9) Load Cell Sealing Class:IP68
(10) Meter Box Protection Class:IP42
Description:

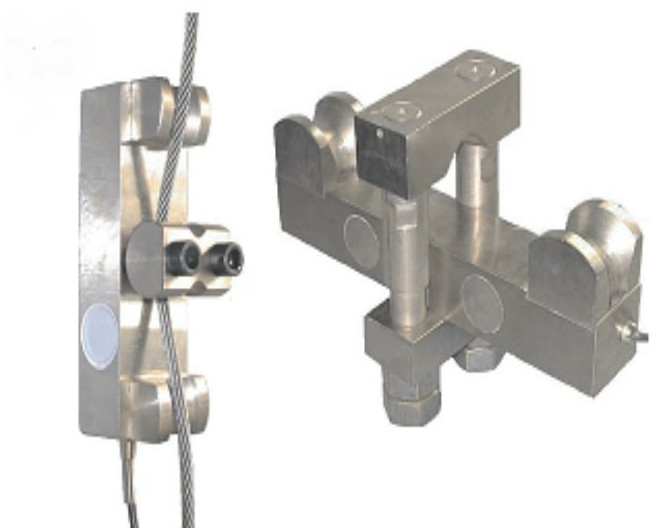

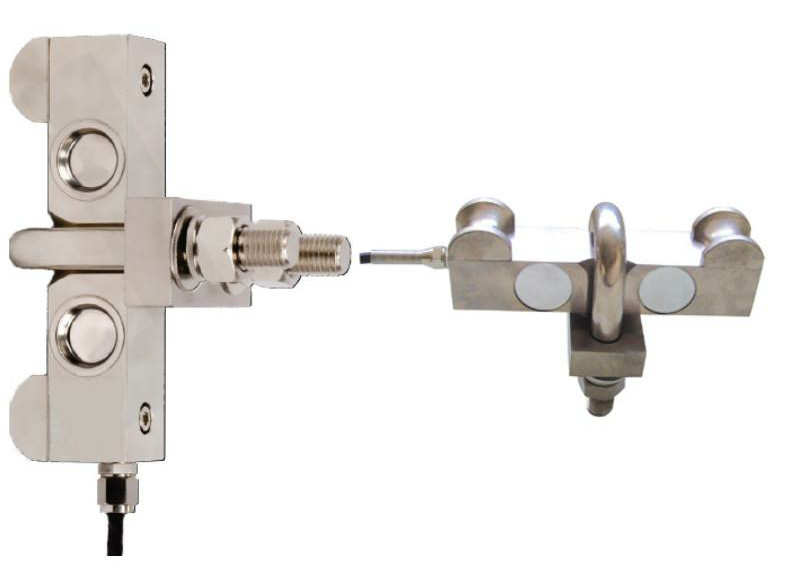

1. Lateral pressure load cell LC104M Lateral press type limiter is main used in electric calabash, steel wire condone etc lift weighing equipment, Prevent overloading state security device running.

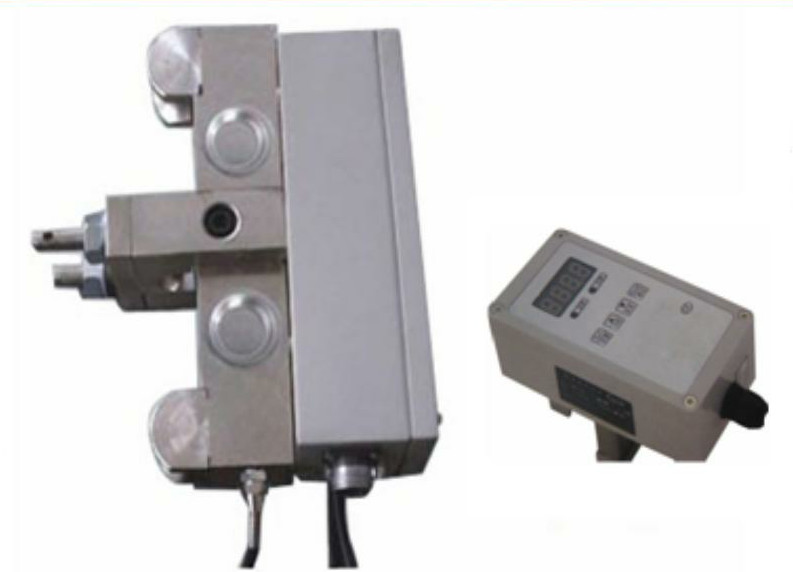

2. The device mainly consists of two parts: main frame buildup from side compression load cell and control indicator, when appear up limited loading, come out sound and light alarm and control start condole to safe direction switch. It make full use of steel wire tension theory, easily assemble, safety performance good, indicator can choose with display or without display double type mode.
3. The lifting weigh limiter meter adopts single chip-controlled technology. Its main function are that measuring and indicating the lifting weight timely as connecting the load cell’s signal, sending out acoustic optic alarm, outputting control signal and cutting off the rising looping power supply when weight reaches the stipulated value.
Applications:
Weighing functions
Competitive Advantage:
1. High accuracy.
2. Stainless steel construction.
3. Four columns construction.
4. Easy installation and reliable performance.
