Name: High Precision 200klb Compression Load Cell For Weighing Scale
Brand: Changzhou Skyerscale Co.,Limited
SKU: LC101
Price: 117.00 USD
Availability: InStock

High Precision 200klb Compression Load Cell For Weighing Scale

1pcs

MOQ

negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Alloy Steel

Theory: Resistance Sensor

Output: Analog Sensor

Type: Compression Type

Name: Weighing Load Cell

Highlight:

200klb compression load cell

compression type load cell

Basic Infomation

Place of Origin: China

Brand Name: OEM

Certification: CE OIML

Model Number: LC101

Payment & Shipping Terms

Packaging Details: carton

Delivery Time: 25days

Supply Ability: 100pcs/m

Gallery

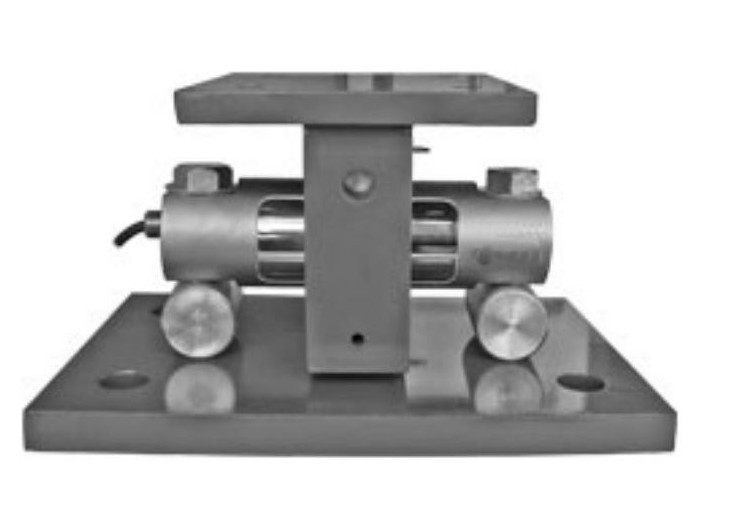

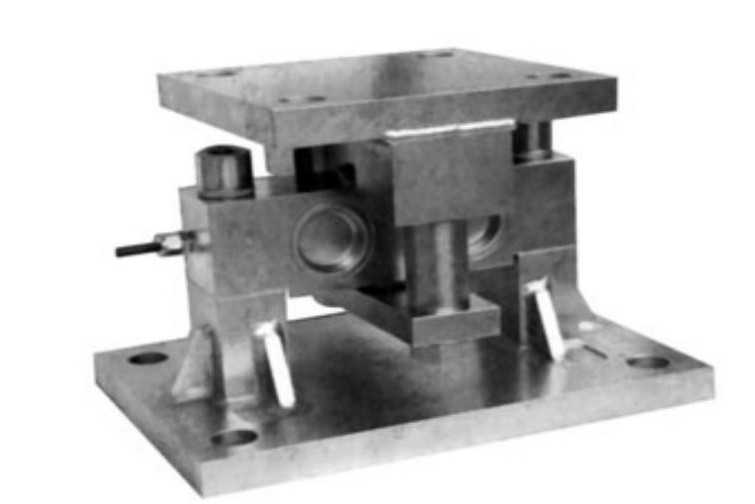

High Precision 200klb Compression Load Cell For Weighing Scale

Product Description

High-precision compression weighing load cell 200klb

Specifications:

Rated Load:	5/10/20/30/60/100/150/200klb
Sensitivity:	(2.0±0.1%) mV/V	Operating Temp. Range:	-30~+70℃
Combined Error:	±0.03% F.S	Maximum Safe Over Load:	150%F.S
Creep Error(30min):	±0.02% F.S	Ultimate Over Load:	250%F.S
Zero Balance:	±1% F.S	Recommend Excitation:	10~12V DC
Tco:	±0.02% F.S/10℃	Maximum Excitation:	15V DC
Tc Span:	±0.02% F.S/10℃	Sealing Class:	IP67/IP68
Input Resistance:	750±5Ω	Element Material:	A: Alloy Steel, SS: Stainless Steel
Output Resistance:	703±2Ω	Cable:	Length=L:12m
Insulation Resistance:	≥5000MΩ	Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)

High Precision 200klb Compression Load Cell For Weighing Scale 0

Description:

1. LC101 load cell are available in the capacities 5Klb to 200Klb.

2. Alloy steel construction,potted by adhesive inside, oil-proof,waterproof anti-corrosive gas or medium making it suitable for all kinds of environments.

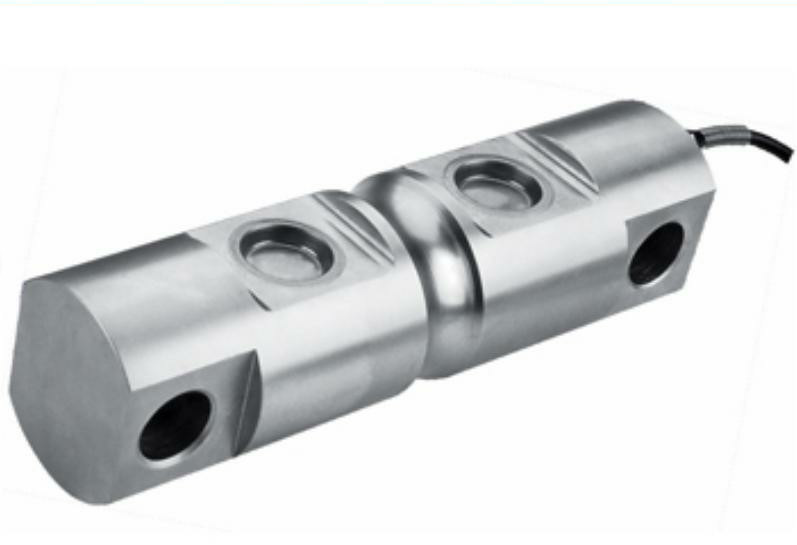

3. Dual shear beam,easy installation, suitable for electronic truck scales, track scales,automobile testing facilities and other electronic weighing devices.

Applications:

Weighing functions

Competitive Advantage:

1. High accuracy.
2. Stainless steel construction.
3. Four columns construction.
4. Easy installation and reliable performance.
