KELI Weighbridge Truck Scale Dual Shear Beam Weighing Load Cell

1pcs

MOQ

negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Alloy Steel

Theory: Resistance Sensor

Output: Analog Sensor

Type: Column Type

Name: Weighing Load Cell

Highlight:

bridge type weighing load cell

truck scale Load Cell

Basic Infomation

Place of Origin: China

Brand Name: Keli

Certification: OIML

Model Number: QS

Payment & Shipping Terms

Packaging Details: carton

Delivery Time: 25days

Supply Ability: 100pcs/m

Gallery

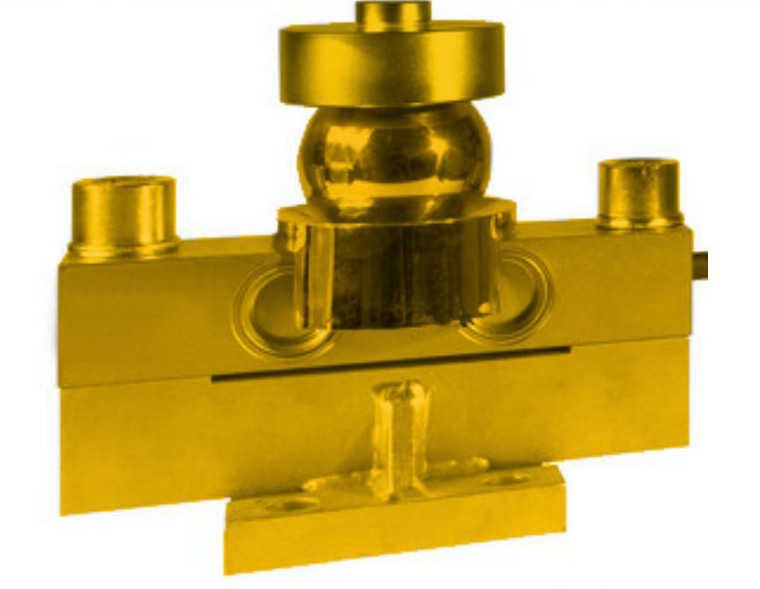

KELI Weighbridge Truck Scale Dual Shear Beam Weighing Load Cell

Product Description

keli QS Bridge type weighing load cell used for weighbridge truck scale

Specifications:

Rated Load:	5/10/20/25/30/40/50t	Operating Temp. Range:	-30~+70℃
Sensitivity:	(2.0±0.1%) mV/V	Max. Safe Over Load:	150,120 (40~50t)%F.S
Combined Error:	±0.02% F.S	Ultimate Over Load:	300,200(40~50t)%F.S
Creep Error(30min):	±0.01% F.S	Recommend Excitation:	10~12V DC
Zero Balance:	±1% F.S	Maximum Excitation:	15V DC
Tco:	±0.02% F.S/10℃	Sealing Class:	IP67/IP68
Tc Span:	±0.02% F.S/10℃	Element Material:	Alloy/Stainless Steel
Input Resistance:	750±5Ω	Citation:	GB/T7551-2008/ OIML R60
Insulation Resistance:	≥5000MΩ	Cable:	Length=13m
Output Resistance:	703±2Ω,703±5 Ω(L≥15m)	Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)

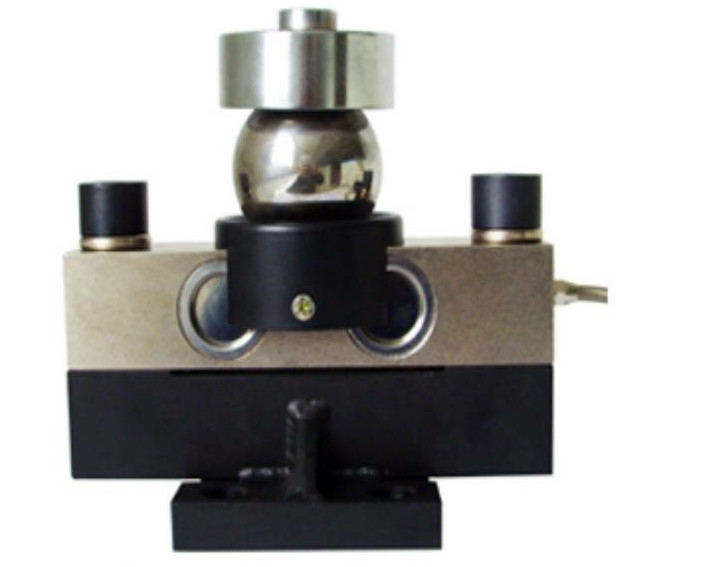

KELI Weighbridge Truck Scale Dual Shear Beam Weighing Load Cell 0

Description:

Double Ended Beam Load Cells

1. Alloy steel

2. Hermetically sealed ,Legal for trade verification according to OIML R60 up to 3000d

3. Nominal load 10t-50t

4. Dual-shear Beam

5. Easy to install

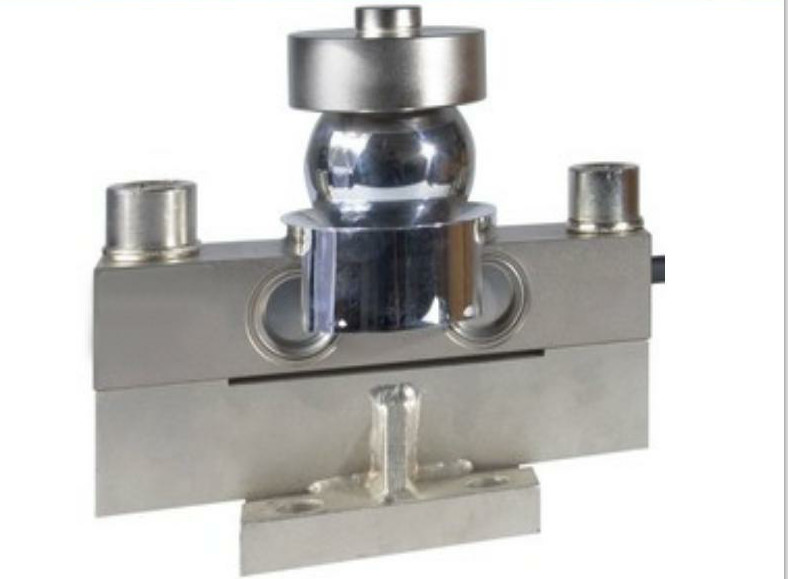

KELI Weighbridge Truck Scale Dual Shear Beam Weighing Load Cell 1

Applications:

Weighing functions

Competitive Advantage:
1. We provide professional consultation guidance, site installation guidance and debugging guidance.

2. All the products provide 1 year free warranty,life-long maintenance.

3. We provide telephone technical guidance for other provinces and overseas.

Please contact us:
whatsapp/Tel:0086 15995095496
skyer@skyerscale.com
www.floorweighingscales.com
