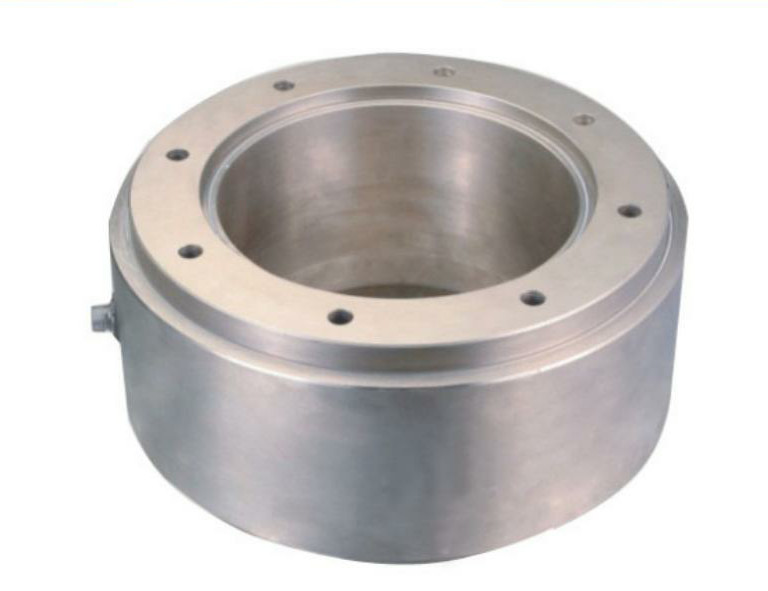

Multi Column 6500KN Miniature Load Cell For Weighing Machine

1pcs

MOQ

negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Alloy Steel

Theory: Resistance Sensor

Output: Analog Sensor

Type: Column Type

Name: Column Type Load Cell

Highlight:

6500KN weighing scale load cell

multi column weighing load cell

Basic Infomation

Place of Origin: China

Brand Name: OEM

Certification: CE

Model Number: LC463

Payment & Shipping Terms

Packaging Details: carton

Delivery Time: 25days

Supply Ability: 100pcs/m

Gallery

Multi Column 6500KN Miniature Load Cell For Weighing Machine

Product Description

Compression Load Cells,Multi Column 6500kN weighing sensor

Specifications:

Cap. /Size	D		D1	D2	d		d1	H	H1	H2	M
600	160		140	120	80		100	100	5	5	4-M12
1000	200		170	145	100		120	110	5	5	4-M12
1500	225		190	160	120		135	120	5	5	4-M12
2000	260		230	195	140		160	130	5	5	4-M12
3000	270		245	225	160		180	150	10	5	4-M12
4000	295		275	235	195		175	160	10	10	8-M16
5000	340		310	265	196		215	165	10	10	8-M16
6500	385		355	305	240		260	180	10	20	8-M16
Capacity:		600/1000/1500/2000/3000/4000/5000/6500kN
Accuracy:		0.2%FS				Insulation Resistance:						＞2000MΩ
Sensitivity:		2.0 V/V				Temperature Effect On Sensitivity:						＜0.1%FS/ 10℃
Non-Linearity:		≤0.2%FS				Temperature Effect On Zero Balance:						＜0.1%FS/ 10℃
Repeatability:		≤0.05%FS				Reference Excitation Voltage:						10V (DC)
Hysteresis:		≤0.2%FS				Nominal Range Of Excitation Voltage:						6~12V(DC)
Input Resistance:		380Ω				Service Temperature:						-30~70℃
Out Resistance:		350Ω				Safe Load Limit:						120%FS

Multi Column 6500KN Miniature Load Cell For Weighing Machine 0

Description:

1. Aluminum alloy or stainless stel structure
2. Super miniature load cell
3. Specially made for force measuring with limited space

4. Application to truck scale, railway scale, axle scale, storage scale and other weighing equipment.

Applications:

Weighing parts

Competitive Advantage:
1. Low MOQ: It can meet your promotional business very well;

2. Good Service: We treat clients as friends;

3. High Quality: We have strict quality control system. Good reputation in the market.
