Name: Self Centering Rocker Compression Weighing Load Cell Pressure Sensor
Brand: Changzhou Skyerscale Co.,Limited
SKU: LC418
Price: 117.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Alloy Steel

Theory: Resistance Sensor

Output: Analog Sensor

Type: Column Type

Out-wire: 4-wire

Pattern:: Column Type

Highlight:

column type Load Cell

weighing load cell 300t

Basic Infomation

Place of Origin: China

Brand Name: OEM

Certification: CE

Model Number: LC418

Payment & Shipping Terms

Packaging Details: carton

Delivery Time: 25days

Supply Ability: 100pcs/m

Gallery

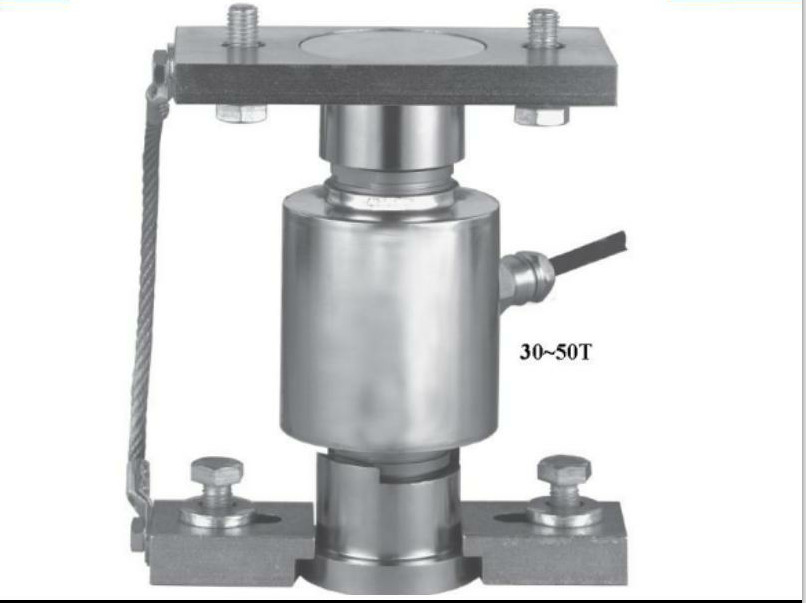

Self Centering Rocker Compression Weighing Load Cell Pressure Sensor

Product Description

compression column weighing load cell pressure sensor 300t

Specifications:

Rated Load:	7.5/15/22.5/30/40/50/100/150/300t
Sensitivity:	(3.0±0.1%) mV/V	Operating Tem. Range:	-30~+70℃
Combined Error:	±0.05% F.S	Max. Safe Over Load:	150%F.S
Creep Error(30min):	±0.02% F.S	Ultimate Over Load:	250%F.S
Zero Balance:	±1% F.S	Recommend Excitation:	10~12V DC
Temp. Effect On Zero:	±0.017% F.S/10℃	Maximum Excitation:	15V DC
Temp. Effect On Span:	±0.017% F.S/10℃	Sealing Class:	IP67/IP68
Input Resistance:	750±5Ω	Element Material:	-A: Alloy Steel, -SS: Stainless Steel
Output Resistance:	702±2Ω	Cable:	Length=12m(7.5~22.5t), 18m(30~300t)
Insulation Resistance:	≥5000MΩ	Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)

Cap./Size	H1	H2	H3	H4	H5	H6	D1	D2
7.5t	89	44	17	23	11	6	28	65
15t	89	44	17	23	11	6	28	65
22.5t	89	44	17	23	11	6	28	65
30t	140	70	26	28	13	6.5	39	81
40t	150	75	31	33	13	11.7	39	81
50t	178	89	32	34	17	8.5	44	99
100t	178	89	38.5	38.5	17	12	62	141.3
150t	210	105	42.7	42.7	20.6	12.8	76.2	165.1
300t	280	140	55.9	55.9	25	21.5	100	165.1

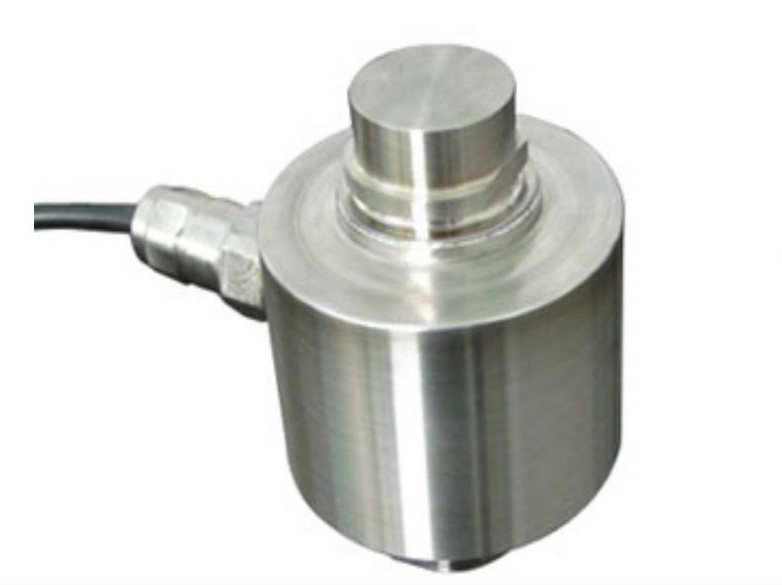

Self Centering Rocker Compression Weighing Load Cell Pressure Sensor 0

Description:

1.The type LC418 is a stainless steel self centering rocker compression load cell with complete hermetic sealing.

2.It is a perfect fit for use in harsh industrial environments. Application for Weighbridges, hoppers, tanks and silos scale, explosion-proof truck scale, weighbridge, weighing systems.

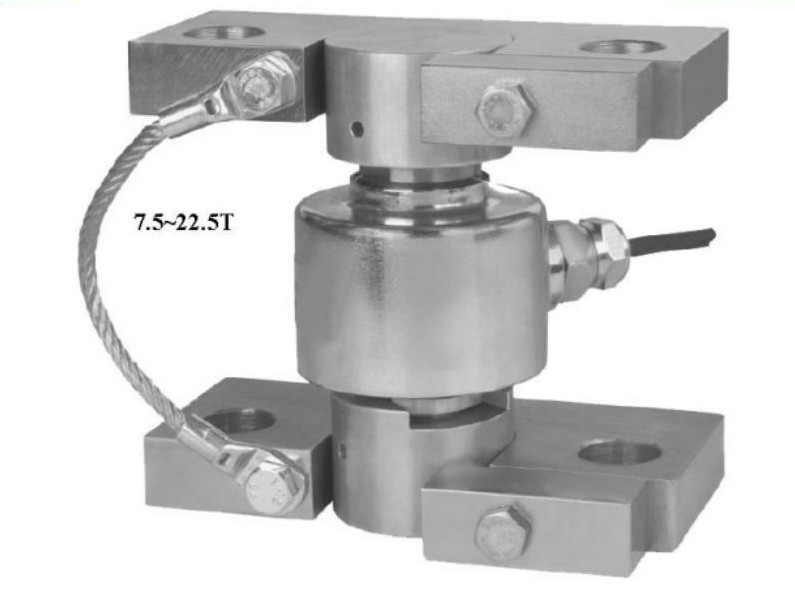

Self Centering Rocker Compression Weighing Load Cell Pressure Sensor 1

Applications:

Electronic platform scale, hopper scale and various special scales.

Competitive Advantage:
1. 24Hr for response time.

2. 15-30days for delivery time.

3. 12 months for quality assurance time.

4. ODM, OEM support
