Product Details:
Payment & Shipping Terms:
|
Material: | Alloy Steel | Theory: | Resistance Sensor |
---|---|---|---|
Output: | Analog Sensor | Type: | Column Type |
Highlight: | 200ton weighing load cell,column type weighing load cell |

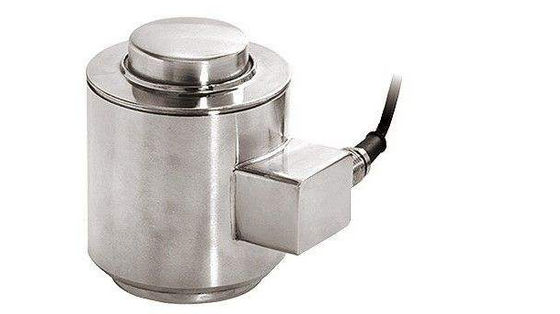

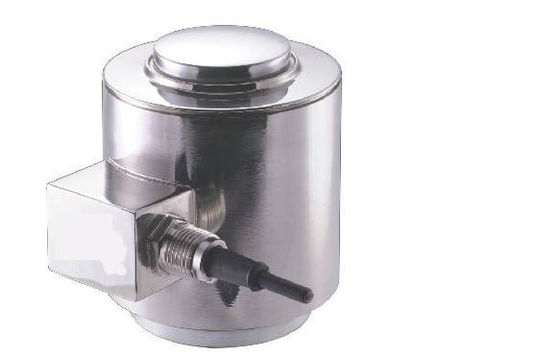

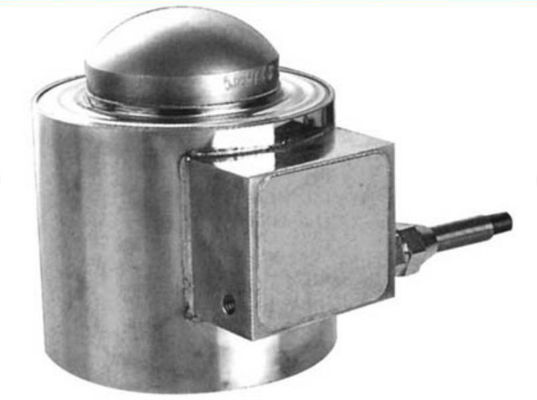

Compression force column type weighing load cell 200 ton
Specifications:
Rated Load: | 12/3/5/15/20/25/30/40/50t | Operating Temp. Range: | -30~+70℃ |
Sensitivity: | (2.0±0.1%) mV/V | Max. Safe Over Load: | 150%F.S |
Combined Error: | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
Creep Error(30min) | ±0.02% F.S | Recommend Excitation: | 10~12VDC |
Zero Balance: | ±1% F.S | Maximum Excitation: | 15V DC |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Element Material: | -A: Alloy Steel, -SS: Stainless Steel |
Input Resistance: | 750±5Ω | Cable: | Length=13m |
Output Resistance: | 702±2Ω | Citation: | GB/T7551-2008/ OIML R60 |
Insulation Resistance: | ≥5000MΩ | Mode Of Connection: |
Red(Input+),Black(Input-), Green(Output+White(Output-) |
Cap/Size | D1 | D2 | D3 | H1 | H2 | F | G |
20~50t | 87 | 70 | 56 | 138.5 | 112 | 35 | 62 |
80~150t | 120 | 105 | 76 | 200 | 167 | 50 | 78 |
200t | 159 | 143 | 108 | 270 | 220 | 70 | 100 |
Description:
1.Load cells &weigh modules LC414 is a column, low profile, compression load cell.
2.We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. 3.The fully leak-tested welded construction, advanced cable entry and built-in surge protection tubes ensure this product can be used successfully in harsh environments. This product meets the stringent weights and measures requirements.
4.This product is suitable for use in road and rail weighbridges and process weighing applications, truck and rail weighbridges, silo and hopper weighing, process weighing and weighing equipment.
Applications:
Digital loadcell is a latenew electric weighing technology combined with modern microelectronics Tech & microcomputer Tech,based on the strain gauge load cells, it is used in truck scale, railroad scale, hopper scale etc.
Competitive Advantage:
1.High accuracy.
2.Stainless steel construction.
3.Four columns construction.
4.Easy installation and reliable performance.
