Product Details:
Payment & Shipping Terms:
|
Material: | Alloy Steel | Theory: | Resistance Sensor |
---|---|---|---|
Output: | Switching Transducer,Analog | Type: | Column Type |
Ultimate Overload: | 300%FS | Excitation Voltage: | 9 ~ 12Vdc |
Highlight: | 30T Weighing load sensor,Column Type Pressure Load Cell |
Specifications:
Rated Load: | 10/20/30/40/50t | Operating Temp. Range: | -30~+70℃ |
Sensitivity: | (3.0±0.1%) mV/V | Maximum Safe Over Load: | 150%F.S |
Combined Error: | ±0.05% F.S | Ultimate Over Load: | 250%F.S |
Creep Error(30min): | ±0.02% F.S | Recommend Excitation: | 10~12V DC |
Zero Balance: | ±1% F.S | Maximum Excitation: | 15V DC |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Element Material: | -A: Alloy Steel, -SS: Stainless Steel |
Input Resistance: | 750±5Ω | Cable: | Length=15m |
Output Resistance: | 702±2Ω | Citation: | GB/T7551-2008/ OIML R60 |
Insulation Resistance: | ≥5000MΩ | Mode Of Connection: |
Red(Input+),Black(Input-), Green(Output+),White(Output-) |
Description

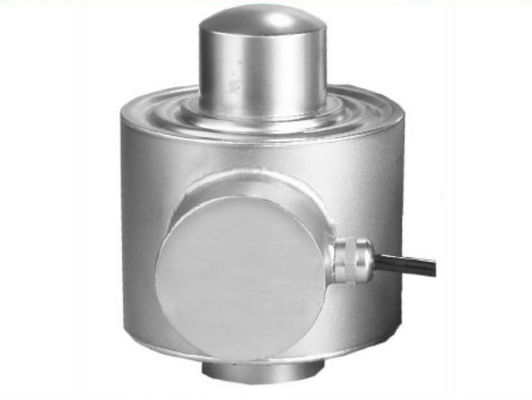

1.LC402 load cells are available in the capacities 0.5t to 50t .
2.Alloy steel/Strainless steel construction,hermetically welded,oil-proof,
waterproof and anti-corrosive gas and medium making it lightning protected in all kinds of environments.

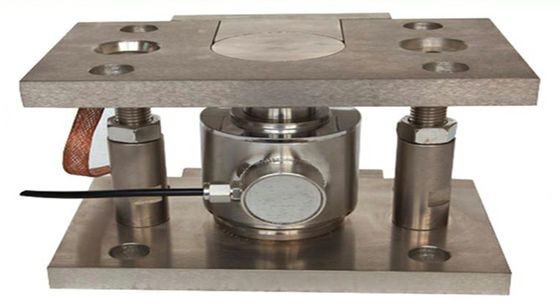

3.Column structure, anti-reversal design,good self-aligning ability,suitable for electronic platform scales,automobile testing facilities,hopper scales and other electronic weighing devices.
4.Safe and anti-explosive product,can be used in atrocious environment and hazardous areas.
Applications:
Simple to install, easy to use, good interchangeability suitable for electronic truck scale, railroad scale, hopper scale and various special scales.
Competitive Advantage:
1. Assurance quality 1 year
2. Competitive price
3. 7x24hours online service
4. Professional delivery
5. CE OIML approved
