Product Details:
Payment & Shipping Terms:
|
Material: | Aluminum | Theory: | Resistance Sensor |
---|---|---|---|
Output: | Analog Sensor | Usage: | Weighing Scale |
Highlight: | single point aluminum weighing sensor,100kg single point load cell |
Specifications:
Rated Load: | 20/30/50/60/100/150/200/250/300kg | ||
Comprehensive Error: | 0.02%F.S | Insulation Resistance: | ≥5000MΩ(100VDC) |
Rated Output: | 2±0.1mV/V | Excitation Voltage: | 9VDC~12VDC |
Non-Linearity: | 0.02%F.S | Compensated Temp. Range: | -10℃~+40℃ |
Hysteresis: | 0.02%F.S | Use Temp. Range: | -20℃~+60℃ |
Repeatability: | 0.02%F.S | Temp. Effect On Zero: | 0.03%F.S/10℃ |
Creep: | & 0.02%F.S/10min | Temp. Effect On Span: | 0.02%F.S/10℃ |
Zero Balance: | ±1%F.S | Safe Overload: | 120% |
Input Resistance: | 405±10Ω | Ultimate Overload: | 150% |
Output Resistance: | 350±3Ω | Defense Class: | IP65 |
Description:

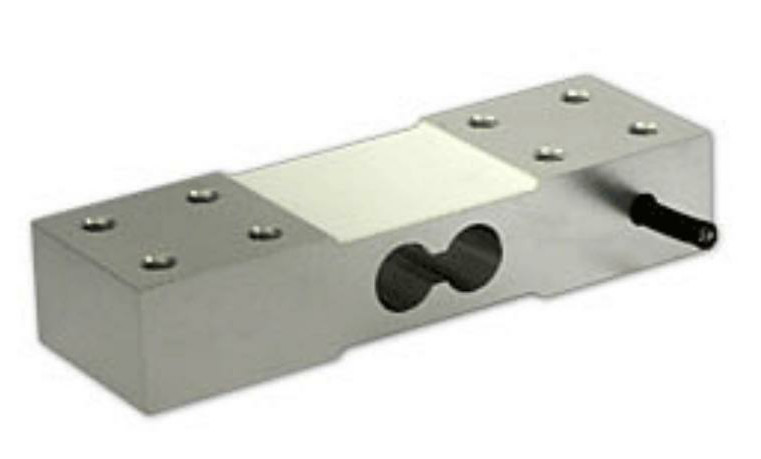

1. AM619 load cells are available in the capacities 20~300kg .And the customized capacity is available by request.
2. Aliminum construction,making it in all kinds of environments.
3. good self-aligning ability, suitable for electronic platform scales,automobile testing facilities,hopper scales and other electronic weighing devices.
Applications:
Suitable for pricing scales, platform scales and
other electronic weighing devices
Competitive Advantage:
1.Low MOQ: It can meet your promotional business very well.
2.OEM Accepted : We can produce any your design .
3.Good Service : We treat clients as friend.
4.Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
