Product Details:
Payment & Shipping Terms:
|
Name: | Truck Weigh Scales | Accuracy: | 10kg |
---|---|---|---|
Display Type: | LCD/LED | Power Supply:: | 220v/50HZ Or 110V/60HZ |
Rated Load: | 60t | Material: | Q235 |
Highlight: | 60t Truck Platform Scales,Q235 Vehicle Weighing Scales |
Specifications:
size | Length of module | QTY of bearing frame | Actual length(m) |
3X6 | 5.55 | 2 | 6.25 |
3X8 | 3.55+3.55 | 3 | 8.15 |
3X9 | 4.55+3.55 | 3 | 9.15 |
3X10 | 4.55+4.55 | 3 | 10.15 |
3X12 | 5.55+5.55 | 3 | 12.15 |
3X15 | 4.55+4.55+4.55 | 4 | 15.05 |
3X16 | 4.55+5.55+4.55 | 4 | 16.05 |
3X18 | 5.55+5.55+5.55 | 4 | 18.05 |
3X20 | 4.55+4.55+4.55+4.55 | 5 | 19.95 |
3X21 | 5.55+4.55+4.55+4.55 | 5 | 20.95 |
3X22 | 5.55+4.55+4.55+5.55 | 5 | 21.95 |
3X24 | 5.55+5.55+5.55+5.55 | 5 | 23.95 |
1. One set truck scale is composed of with 4-10pcs load cell according to various size, with 1 unit indicator, with 1 junction box
2. Printer, scoreboard is optional
3. OEM ODM is provided
4.The whole design process is made by our smart enigneer by computer
Description:

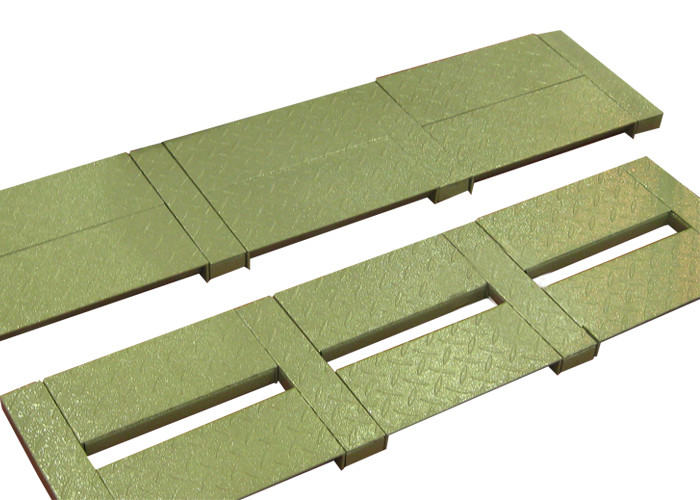

1. It is made with u shape beams and channel steel.
2.This structure is modularized and made from mould. The customer can buy the scale body and the box separately and match to any size they need.
3. This is very economical in container shipping, as one 20 feet container can put 2pcs 3X18m
4. TS-PSeries truck scale.Also it is very easy in installation,4.we don’t have to turn the truck scale all upside and down, only one forklift will be enough for all installation.
Applications:
1). Weighing
2). Net weight/tare
3). Weight accumulation
Competitive Advantage:
1. We develop this export style structure, suitable for container transportation, and becomes the most popular export style structures in China market.
2. Our engineer has the unique designing ideas for this structure that the other imitators cannot imitate, which makes our truck scales with the best ratio between the quality and price.
3. Easy installation, robust structure.
