Product Details:
Payment & Shipping Terms:
|
| Name: | Mobile Weighbridge | Accuracy: | 10kg |
|---|---|---|---|
| Display Type: | LCD/LED | Power Supply:: | 220v/50HZ Or 110V/60HZ |
| Place Of Origin: | China | Rated Load: | 80t |
| High Light: | Q235 portable weighbridge,80t portable weighbridge |
||
3x18m 80t Q235 carbon steel material portable weighbridge with hot galvanized truck weigh scale
Specifications:
| size | Length of module | QTY of Module | Load cell Qty. |
| 3X6 | 1.5x6m | 2 | 4 |
| 3X7 | 1.5x7m | 2 | 4 |
| 3X8 | 1.5x4m | 4 | 6 |
| 3X9 | 1.5x4.5m | 4 | 6 |
| 3X10 | 1.5x5m | 4 | 6 |
| 3X12 | 1.5x6m | 4 | 6 |
| 3X15 | 1.5x5m | 6 | 8 |
| 3X16 | 1.5x5.33m | 6 | 8 |
| 3X18 | 1.5x6m | 6 | 8 |
1. Weighing Capacity: 10T-200T
2. Structure: U-shape beams
3. Thickness of smooth plate (8-12mm)
Chequer plate optional
4. Painting: Anti rust and anti corrosion painting
5. Accuracy class: OIML(III)
6. Safe Overload: 150%
7. Load cells: KELI or ZEMIC LOAD CELLS
8. With indicator: Yaohua A9P
9. All the screws and tools used for installation has been included in the price

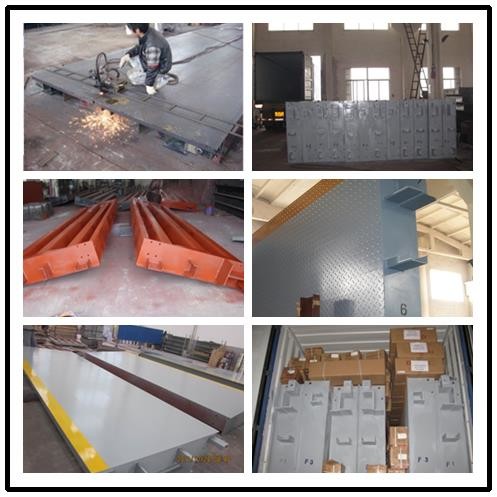

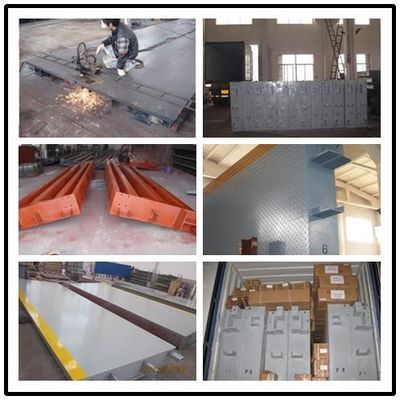

Description:

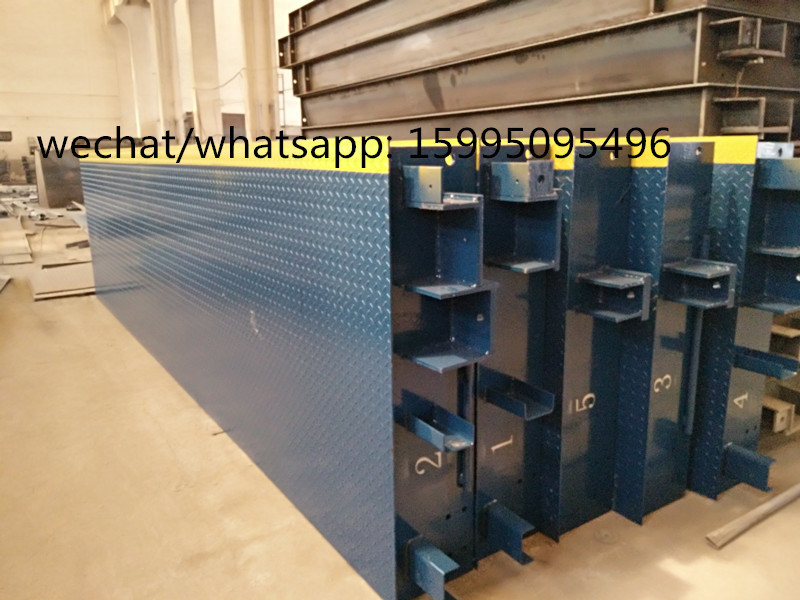

1. Design 6 pieces U beam design
2. U beam thickness design with 6mm
3. Pre camber machine to making platform have a high curves in Middle of platform
4. Auto welding machine to ensure welding is smooth and good strength
5. Shot blasting clean all dirty before painting
1. Optional in platform size, Max. Cap.
2. Optional in load cell, indicator.
3. Optional RS232 interface
4. Optional ramps or rails.
5. Optional big screen.
6. Optional extra printer
7. Optional software
8. Optional computer
9. Optional double shielded cable
Applications:
1). Weighing
2). Net weight/tare
3). Weight accumulation
Competitive Advantage:
1. We support small orders,fast delivery for customers to save even more valuable time.
2. We have abundant production and export experience ,best price and good quality.
3. We have global market,has been exported to UK, Czech, Latvia,Thailand, ViteNam, Chile,Canada,Philippines,Span etc. various countries around the world.
