100kg Stainless Steel Waterproof Single Point BM6G Loadcell For Bench Weighing Scale

1pcs
MOQ
negotiation
Price
100kg Stainless Steel Waterproof Single Point BM6G Loadcell For Bench Weighing Scale
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Stainless Steel
Theory: Resistance Sensor
Output: Analog Sensor
Usage: Weighing Scale
Rated Load: 100kg
Waterproof Grade: IP68
Highlight:

100kg single point loadcell

,

BM6G waterproof loadcell

,

100kg waterproof loadcell

Basic Infomation
Place of Origin: China
Brand Name: ZEMIC
Certification: OIML
Model Number: BM6G
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 3-20days
Supply Ability: 100pcs/m
Product Description

100kg stainless steel waterproof single point BM6G loadcell for bench weighing scale



Specifications:



Rated Load: 50kg~1000kg Insulation Resistance: ≥5000MΩ
Sensitivity: (2.0±0.1%) mV/V Operating Temp.Range: -30~+70℃
Combined Error: ±0.03% F.S Maximum Safe Over Load: 150%F.S
Creep Error(30min): ±0.03% F.S Ultimate Over Load: 200%F.S
Zero Balance: ±1% F.S Recommend Excitation Vol.: 10~12V DC
Temp. Effect On Zero: ±0.02% F.S/10℃ Maximum Excitation Vol.: 15V DC
Temp. Effect On Span: ±0.02% F.S/10℃ Sealing Class: IP65
Input Resistance: 385±5Ω Element Material: Aluminum
Output Resistance: 353±2Ω Cable: Length=L:3m
Insulation Resistance: ≥5000MΩ Citation:

GB/T7551-2008

/ OIML R60

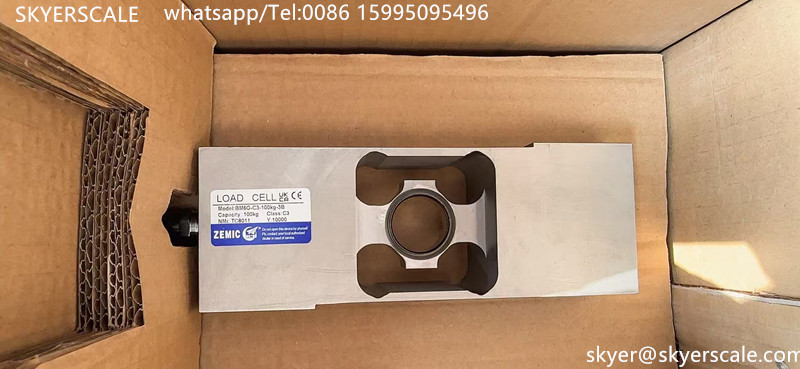

100kg Stainless Steel Waterproof Single Point BM6G Loadcell For Bench Weighing Scale 0

Description:



1. Zemic L6G load cells are available in the capacities 50~1000kg .And the customized capacity is available by request.
2. Aliminum construction,making it in all kinds of environments. Silicon adhesive sealed, surface anodized and anti-corrosion.
3. good self-aligning ability, suitable for electronic platform scales,automobile testing facilities,hopper scales and other electronic weighing devices.

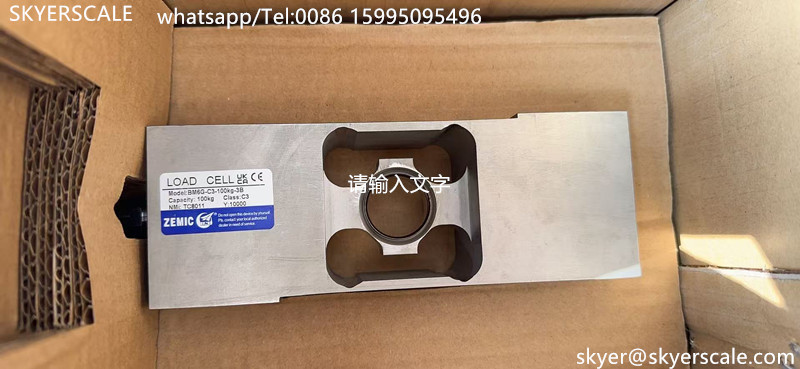

100kg Stainless Steel Waterproof Single Point BM6G Loadcell For Bench Weighing Scale 1





Applications:



Suitable for pricing scales, platform scales and other electronic weighing devices.



Competitive Advantage:



1. Low MOQ: It can meet your promotional business very well.

2. OEM Accepted : We can produce any your design .

3. Good Service : We treat clients as friend.

4. Good Quality :We have strict quality control system .Good reputation in the market.

5. Fast & Cheap Delivery: We have big discount from forwarder.
