|Name:||Truck Scale Weighbridge||Display Type:||LCD Or LED|
|Width:||3 Meter||Platform:||Checker Plate Or Smooth Plate|
|Sensor:||Analog Scale||Construction:||Carbon Steel, Stainless Steel Optional|
100 Ton Electric Portable Weighbridge,
OEM Weighing Truck Scales

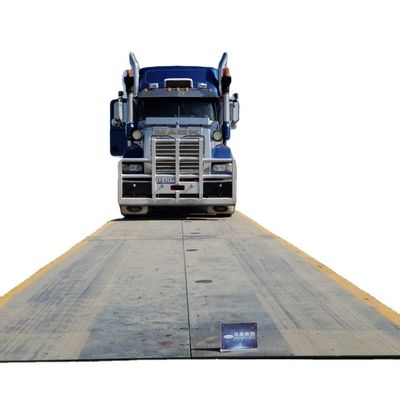

100 Ton Electronic Portable Weighbridge Heavy Duty Weighing Truck Scales
1. Accurate: division is 10kg
2. Durable: over 10 years of service life for normal operation
3. High standard, OEM available
4. Reasonable Price
1. High-accuracy OIML approved Load Cells
3. Weighing Platform
4. Junction box
5. All bolts and nuts are included.
|size||Length of module||QTY of Module||Load cell Qty.|
1. Supply status: steel frame in H300 steel, more convenient for container
transportation and economic for transportation charge
2. Reinforcement bars to be welded at the customer's site.
3. With OIML R60 approved double shear beam load cells, KELI QS-30t or ZEMIC HM9B-30t
4. Width available: 3m,3.2m,3.4m
5. Standard length available:6m,7m,8m,9m,10m,12m,14m,16m,18m,20m,21m,24m
6. Max.Capacity available: 30t,40t,60t,80t,100t,120t
7. In one 40'container,7 pcs of 18m can be loaded in.
2). Net weight/tare
3). Weight accumulation
1. We develop this export style structure, suitable for container transportation, and becomes the most popular export style structures in China market.
2. Our engineer has the unique designing ideas for this structure that the other imitators cannot imitate, which makes our truck scales with the best ratio between the quality and price.
3. Easy installation, robust structure.
