100kg Single Point Bellow Bending Beam Load Cell For Pallet Platform

10pcs
MOQ
negotiation
Price
100kg Single Point Bellow Bending Beam Load Cell For Pallet Platform
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Stainless Steel
Usage: PRESSURE SENSOR
Output: Analog Sensor
Input Resistance: 350±3.5 Ohm
Safe Overload:: ≤150% FS
Capacity: 1Klb To 20Klb And 0.5t To 10t
Highlight:

bellow bending beam load cell

,

single point beam load cell

,

100kg pallet load cell
Basic Infomation
Place of Origin: China
Brand Name: ZEMIC
Certification: OIML
Model Number: BM11-C3-100kg
Payment & Shipping Terms
Packaging Details: cartons and pallet
Delivery Time: 15days
Supply Ability: 1000pcs/m
Product Description

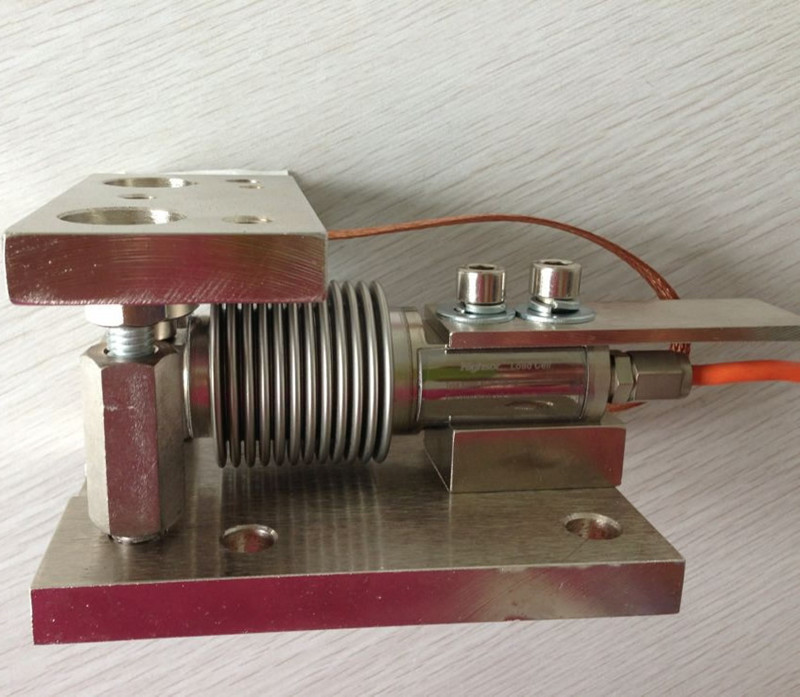

Zemic BM11-100kg single point bellow bending beam load cell C3 pallet platform load cell



Description


Features and Application:

  • BM11 load cell is available in the load capacity from 5 kg to 500kg, could meet different requirements.
  • Stainless steel construction, weld with bellow structure, potted by adhesive inside, oil-proof, waterproof and anti-corrosiver gas, it's able to perform well in all kinds of enviroment.
  • Single point with bellow, easy installation, suitable for crane scales, mechanical conversion scales, hopper scale etc electronic weighing device.
  • Safe and anti-explosive products, can be used in atroncious enviroment and hazardous areas.
  • Low profile and nice exterior, with OIML approval.





Technical Parameter:



Rated capacities(Emax) 5kg,10kg,20kg,30kg,50kg,100kg,150kg,200kg,250kg,300kg,350kg,500kg
Accuracy Class C3
Sensitivity (2.0±0.02)mV/V
TCO ±0.02%F.S/10°C
TC SPAN ±0.02%F.S/10°C
Creep error(30min) ±0.02%F.S
Working voltage, recommend 5V~12V(AC or DC)
Zero balance ±1% F.S
Input impedance (460±50)Ω
Output impedance (350±3.5)Ω
Insulation impedance ≥5000MΩ
Safe overload 150%F.S
Ultimate overload 300% F.S
Service Temp Range (-10~+40)°C
Material Stainless Steel
Protection class IP68
Wiring method Red: Exc+, Black: Exc-, Green: Sig+, White: Sig-





Dimensions:



100kg Single Point Bellow Bending Beam Load Cell For Pallet Platform 0100kg Single Point Bellow Bending Beam Load Cell For Pallet Platform 1





Application:Electronic platform scales,hopper scales, electronic platform scale.







Competitive Advantage:
1. Professional manufacturer with 10 years

2. OEM/ODM service acceptable

3. 100% inspection

4. Warranty: one year
