| Material: | Alloy Steel ,stainless Steel | Rated Load: | 500t |
|---|---|---|---|
| Type: | Wireless Dynamometer | Display Type: | LCD |
| Color: | Silver | Name: | Wireless Load Cell |
| Power Supply: | 3 X AA Size Batteries | ||
| High Light: | wireless dynamometer crane load cell,100t crane load cell,100t hoist load cells |
||

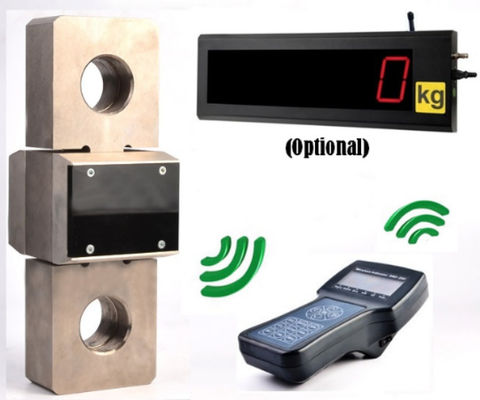

10t 50t 100t Industrial weighing wireless dynamometer car dynamometer crane load cell
Building upon the ever popular and industry leading loadlink, we once again set the bar for the digital Dynamometer market. By adding industry leading wireless capabilities to we advanced microprocessor based electronics,the radiolink plus adds flexibility and increases safety, allowing the load to be monitored from up 500t meters away.
The Wireless system providing high integrity,error free transmission of data, and is unmatched in performance,capable of providing a license free transmission range of up to 500~800 meters. it features a range of cost effective high accuracy load link load cells offering high safety factor and resolution, and a robust carry/storage case.
The standard range of the load link load cells is from 1tonnes to 500 tonnes and includes wireless load links that link to a hand held display (or a display with printer optional), load links with built in display and load links with analogue output.
Their rugged construction makes them ideal for lifting and weighing operations in the most extreme environments, including marine, offshore and onshore applications. Available with a wide variety of applications from testing and overhead weighing to bollard pulling and tug testing.
At China Industries we have over 10 years experience designing, manufacturing and supplying load cells of the highest quality. We can supply all your load cell requirements and offer expert load cell and applications advice.
View our load links range online today or contact our friendly team for specialist load cell and applications advice.
Available Options:
◎Hazardous area Zone 1 and 2
◎Built-in-display option
◎Available with a range of displays to suit each application
◎Environmentally sealed to IP67 or IP68
◎Can be used singularly or in sets
Dimension:
| Cap./t | H | W | L | L1 | A |
| 1~5t | 76 | 34 | 230 | 160 | 38 |
| 7.5~10t | 90 | 47 | 280 | 180 | 40 |
| 20~30t | 125 | 55 | 370 | 230 | 53 |
| 40~60t | 150 | 85 | 430 | 254 | 73 |
| 80~150t | 220 | 115 | 580 | 340 | 98 |
| 200t | 265 | 183 | 725 | 390 | 280 |
| 250t | 300 | 200 | 800 | 425 | 305 |
| 300t | 345 | 200 | 875 | 460 | 305 |
| 500t | 570 | 200 | 930 | 510 | 305 |
Wireless Load Links Typical Specifications:
| Rate Load: | 1/5/10/20/30/50/80/100/150/200/250/300/500T | ||
| Battery Type: | 18650 rechargeable batteries or polymer batteries (7.4v 2000 Mah) | ||
| Proof Load: | 150% of rate load | Max. Safety Load: | 125% F.S. |
| Ultimate Load: | 400% F.S. | Battery Life: | ≥40 hours |
| Power On Zero Range: | 20% F.S. | Operating Temp.: | - 10℃ ~ + 40℃ |
| Manual Zero Range: | 4% F.S. | Stable Time: | ≤10seconds; |
| Tare Range: | 20% F.S. | Remote Controller Distance: | Min.15m |
| Operating Humidity: |
≤85% RH under 20℃ |
System Range: |
500~800m (In Open Area) |
| Overload Indication: | 100% F.S. + 9e | Telemetry Frequency: | 470mhz |
Accessories / Related Products:
Applications:
1. Detection device
2. Industrial automatic detection
Competitive Advantage:
1. 1. High quality and Durable
2. 2. Competitive Price
3. 3. Adequate Stock
4. 4. Fast Delivery
5. 5. Convenient Transportation
6. 6. Good Service
