Product Details:
Payment & Shipping Terms:
|
| Model Number: | XK315A1-13 | Dimensions: | 255 X 170 X 130 Mm |
|---|---|---|---|
| Weight: | 1.5 Kg | Packing: | Carton |
| Display Type: | LCD | Name: | Weight Scale Indicator |
| High Light: | Load Cell Indicator,Weighing Scale Indicator |
||
Digital Weighing indicator for carbon steel or 304 stainless steel platform scale, bench weighing scale
OIML R76/2006 MAA Compliant Weighing Indicator
Specifications:
| Accuracy class: | III |
| Maximum number of verification scale intervals: |
nind = 3000 |
| Load cell excitation voltage: | Uexc = 5 V |
| Minimum input voltage: | Umin = 0.5 mV |
| Minimum input voltage per verification scale interva: | Δumin = 1 μV |
| Minimum/maximum load cell impedance: | 87 Ω to 1000 Ω |
| Fraction of mpe: | pind = 0.5 |
| Cable connection: | 6 wires |
| Maximum value of cable length per wire cross section: | (L/A)max = 150 m/mm2 |
| Maximum number of load cells: | 4 x 350 Ω load cells 8 x 700 Ω load cells |
| Display: | 6-digit 25.4mm LED High Resolution (×10) display Weight unit in kg |
| Weighing Modes: | Gross and net weight weighing Manual and automatic weight accumulation Set point function |
| Serial interface: |
RS232 interface with continuous data output or command protocol Baud rate 1200, 2400, 4800, 9600 Optional RS485 interface |
| External AC adapter: | 100-240VAC 50/60Hz |
| Rechargeable internal battery: | XK315A1-23:6V/4AH |
| Full charge battery operation: | 30 hours |
| Full charge battery recharge time: | 12 hours |
| Operating temperature: | –10 °C to +40 °C |
| Storage temperature: | –25 °C to +55 °C |
| Relative humidity: | 10% to 85% non-condensing |
| Housing: | XK315A1-13:plastic |
| Dimensions: | XK315A1-13:255 x 170 x 130 mm |
| Weight: | XK315A1-13:1.5 kg |

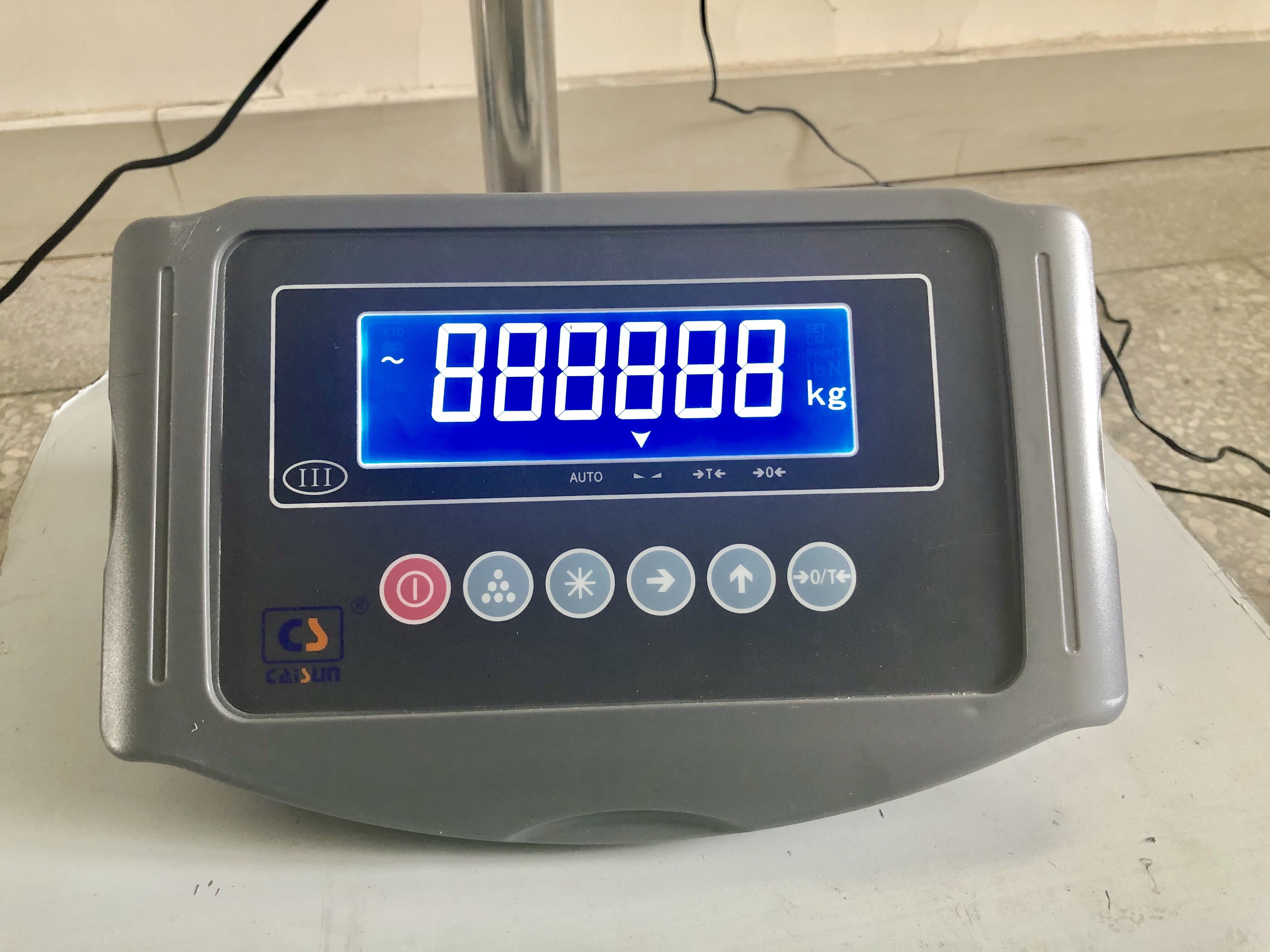

Front Panels
Description:
The purpose of this manual is to help the user get to know the indicator’s various weighing modes, keys’ functions and display indications. In addition to having all the characteristics of a high precision scale, the indicator has weight unit in kg, gross and net weighing, manual and automatic weight accumulation with serial output, counting functions and 4 set points. The indicator is applicable in either industrial settings or legal for trade applications. It provides the frequently needed ability to transmit and print the data through its serial ports. Please carefully follow the instructions to configure the indicator. By taking actions not indicated this manual, one could cause the indicator to not work properly.
Features:
1) 10V/m immunity to radiated electromagnetic fields
2) 6-digit 25.4mm LCD
3) Drive up to 4 x 350Ω or 8 x 700Ω load cell
4) 5V Load cell excitation voltage
5) 1,000,000 internal ADC counts
6) Manual weight accumulation
7) Automatic zero tracking
8) RS-232C/RS-485 interface with continuous data output or
9) Connection to 4-wire or 6-wire load cell
10) RS-232C serial printer interface
11) HI/OK/LO set point
12) Low battery warning
13) Plastic housing
Services:
Services include a full range of technical on site services and workshop repair, preventative maintenance and calibration facilities.
NOTE: Battery is not under warranty
