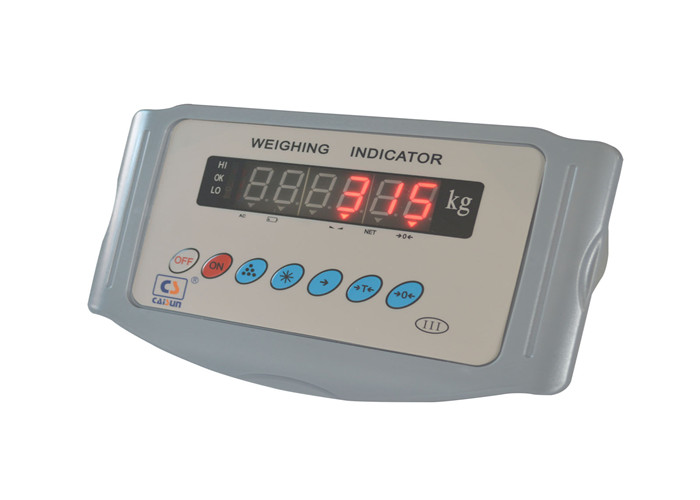

Plastic Housing 6 - Digit LED Weighing Scale Indicator

Plastic Housing 6 - Digit LED Weighing Scale Indicator
Plastic Housing 6 - Digit LED Weighing Scale Indicator Plastic Housing 6 - Digit LED Weighing Scale Indicator Plastic Housing 6 - Digit LED Weighing Scale Indicator

Large Image :  Plastic Housing 6 - Digit LED Weighing Scale Indicator

Product Details:
Place of Origin: China
Brand Name: SKYERSCALE
Certification: OIML R76/2006 MAA
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD50~USD300
Packaging Details: Carton
Delivery Time: 7days
Payment Terms: T/T
Supply Ability: 2000sets/M
Detailed Product Description
Model Number: XK315A1-23 Series Dimensions: 255 X 170 X 130 Mm
Weight: 1.5 Kg Packing: Cardboard
Display Type: LED Name: Weight Scale Indicator
High Light:

LED Digital Weighing indicator

,

floor weighing scale Indicator

XK series 6-digit red LED Digital Weighing indicator for weighbridge and floor weighing scale



OIML R76/2006 MAA Compliant Weighing Indicator



Specifications:



Accuracy class: III
Maximum number of verification scale
intervals:
nind = 3000
Load cell excitation voltage: Uexc = 5 V
Minimum input voltage: Umin = 0.5 mV
Minimum input voltage per verification scale interva: Δumin = 1 μV
Minimum/maximum load cell impedance: 87 Ω to 1000 Ω
Fraction of mpe: pind = 0.5
Cable connection: 4 wires
Maximum number of load cells: 4 x 350 Ω load cells
8 x 700 Ω load cells
Display: 6-digit 20mm LED
High Resolution (×10) display Weight unit in kg
Weighing Modes: Gross and net weight weighing Manual and automatic weight accumulation
Set point function
Serial interface: RS232 interface with continuous data output or command protocol Baud rate 1200, 2400, 4800, 9600
Optional RS485 interface
External AC adapter: 100-240VAC 50/60Hz
Rechargeable internal battery: XK315A1-23:6V/4AH
Full charge battery operation: 30  hours
Full charge battery recharge time: 12  hours
Operating temperature: –10 °C to +40 °C
Storage temperature: –25 °C to +55 °C
Relative humidity: 10% to 85% non-condensing
Housing: XK315A1-23:plastic
Dimensions: XK315A1-23:255 x 170 x 130 mm
Weight: XK315A1-23:1.5 kg

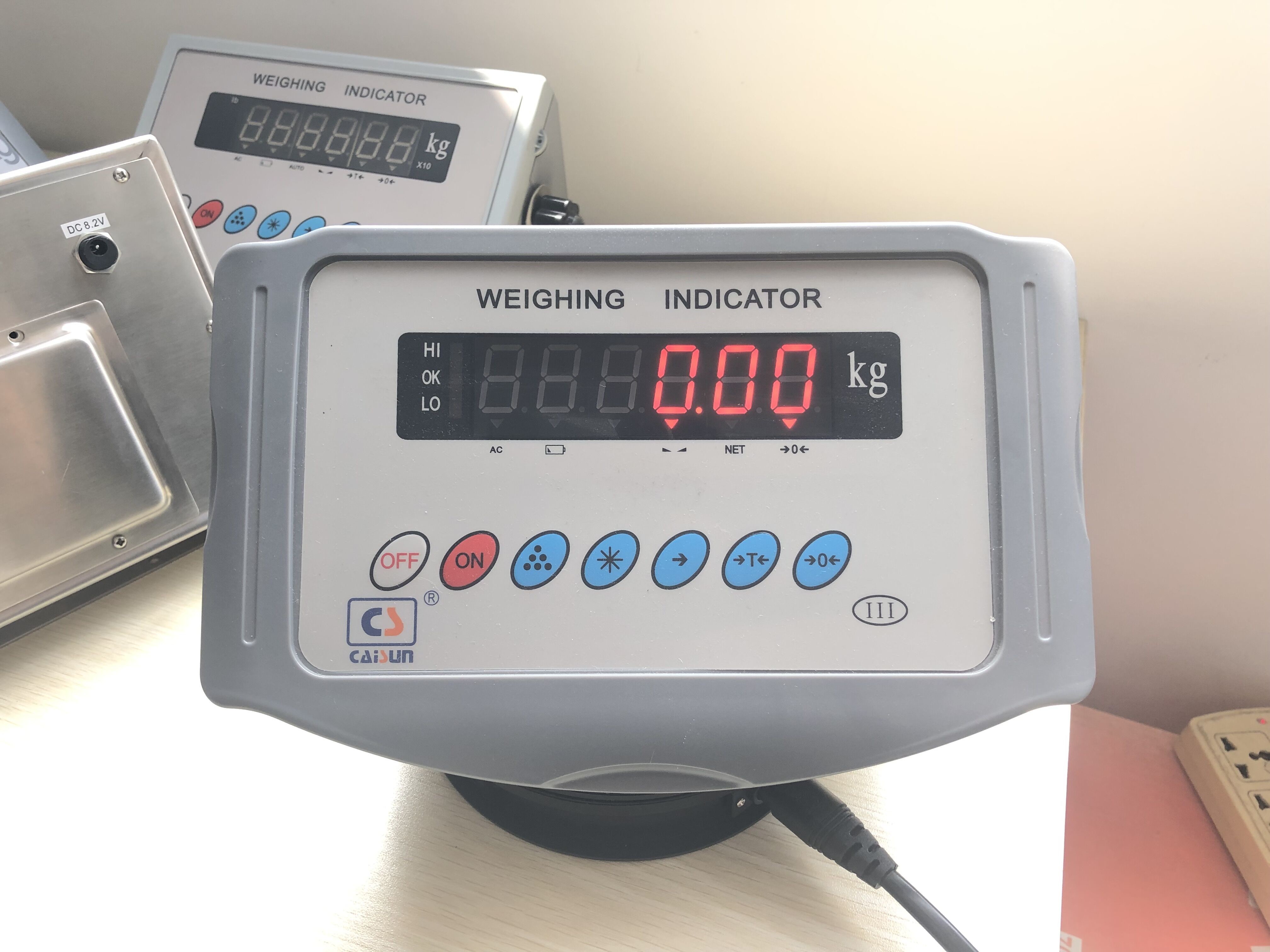

Front Panels

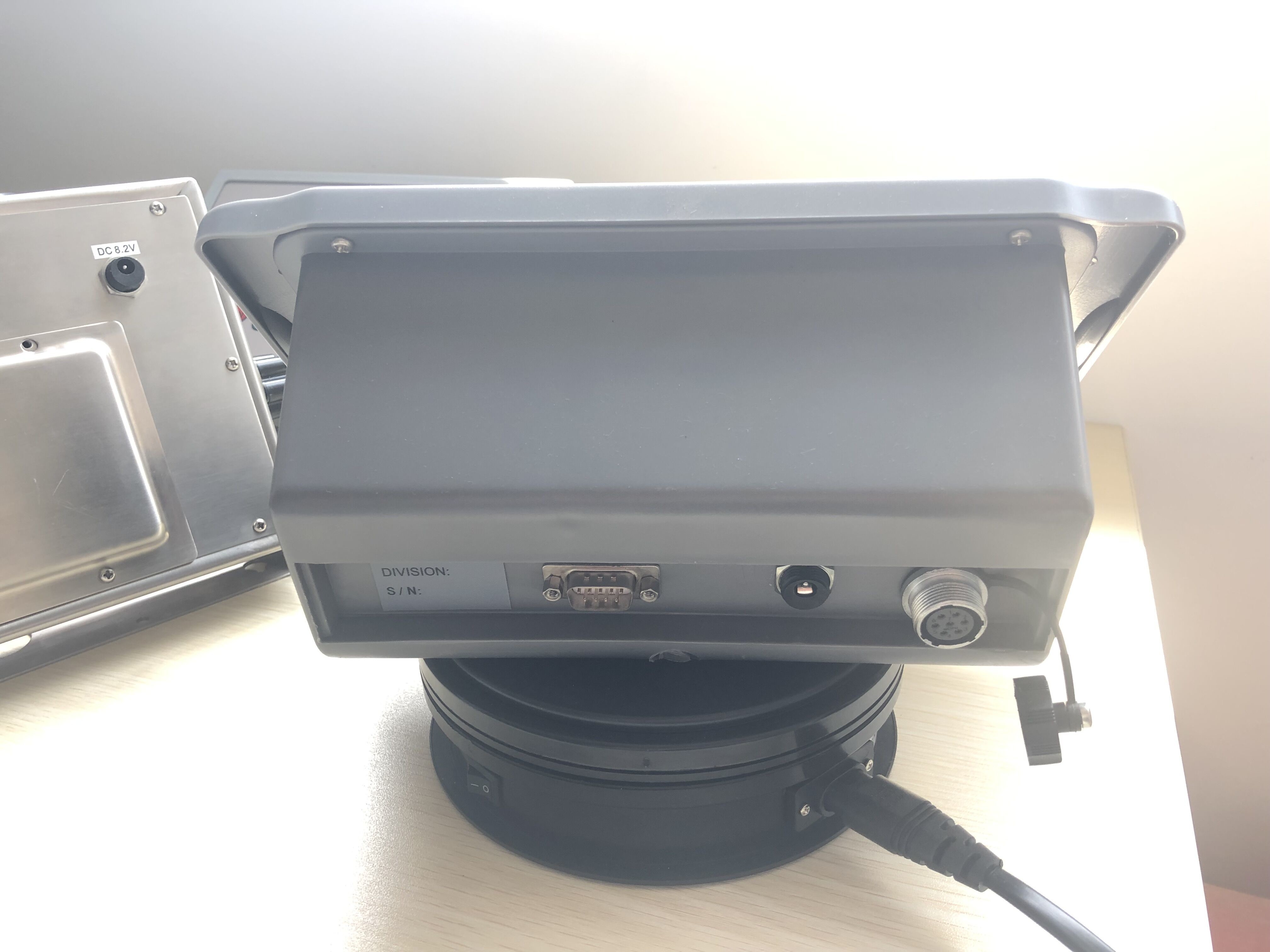

Plastic Housing 6 - Digit LED Weighing Scale Indicator 0                   Plastic Housing 6 - Digit LED Weighing Scale Indicator 1



Description:
The purpose of this manual is to help the user get to know the indicator’s various weighing modes, keys’ functions and display indications. In addition to having all the characteristics of a high precision scale, the indicator has weight unit in kg, gross and net weighing, manual and automatic weight accumulation with serial output, counting functions and 4 set points. The indicator is applicable in either industrial settings or legal for trade applications. It provides the frequently needed ability to transmit and print the data through its serial ports. Please carefully follow the instructions to configure the indicator. By taking actions not indicated this manual, one could cause the indicator to not work properly.





Features:
1)  10V/m immunity to radiated electromagnetic fields
2)   6-digit 20.2mm red/green LED
3)   Drive up to 4 x 350Ω or 8 x 750Ω load cell
4)   5V Load cell excitation voltage
5)   1,000,000 internal ADC counts
6)   Manual weight accumulation
7)   Automatic zero tracking
8)   RS-232C/RS-485 interface with continuous data output or
9)   command protocol
10) RS-232C serial printer interface
11)  HI/OK/LO set point
12)  Low battery warning
13)  Plastic housing




Services:
Services include a full range of technical on site services and workshop repair, preventative maintenance and calibration facilities.
NOTE: Battery is not under warranty



 1. Q: How long is the warranty time?

A: 12 Months

2. Q: What is the payment method?

A: Westunion, TT.

3. Q: When do you delivery?

A: Usually in 7-30 days.

4. Q: Could you offer intallation or tranning oversea?

A: Yes, we offer the service for complex machine in charge.

5. Q: It is my 1st time purchase products oversea, how to promise its safe?

A: We are vertified company , and we attend many Intl.Fair.

Welcome to visit our  company.
