Product Details:
Payment & Shipping Terms:
|
| Rated Load:: | 5t/10t | Platform Size: | 1.2*2.2m |
|---|---|---|---|
| Color: | Optional | Packing: | Cardboard |
| Power Supply: | 110-240V(AC) | Type: | Floor Scale |
| Product Name: | Weighing Floor Scale | ||
| High Light: | 5 tons weighing floor scales,carbon steel platform floor scales |
||

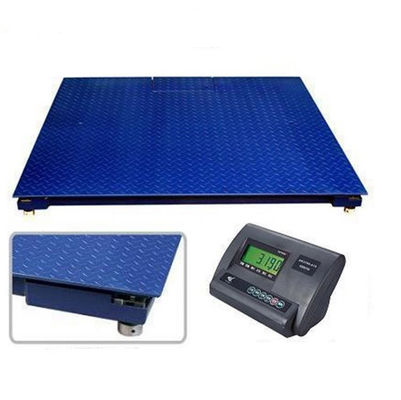

1.2x2.2m 5 tons heavy duty single desk without frame carbon steel platform weighing floor scales
Specifications:
|
Model |
Size(m) |
Capacity(t) |
|
| 1010 | 1.0*1.0 | ||
| 1~3 | |||
| 1212 | 1.2*1.2 | 1~3 | |
| 5 | |||
| 1215 | 1.2*1.5 | 1~3 | |
| 5 | |||
| 1515 | 1.5*1.5 | 1~3 | |
| 5 | |||
| 1520 | 1.5*2.0 | 1~3 | |
| 5 | |||
| 1220 | 1.2*2.0 | ||
| 5 | |||
| 1222 | 1.2*2.2 | 5 | |
Optional in platform size, Max. Cap.
Optional in load cell, indicator.
Be suitable for weighing vehicles and goods
Ramp is optional
Color is optional—grey, black, blue, green or other colors.
Description:
1). Checker plate platform, 5mm or 6mm or 8mm thick, single deck without frame.
2). Sandblasting before powder coated.

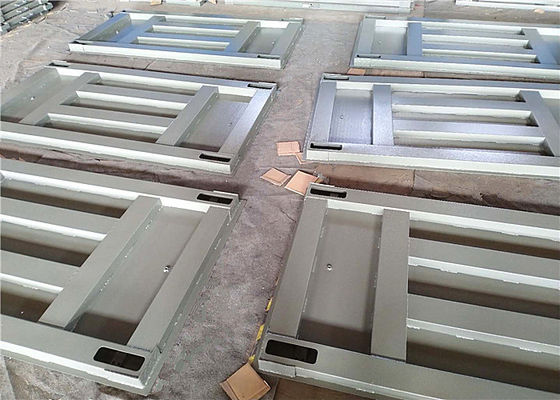

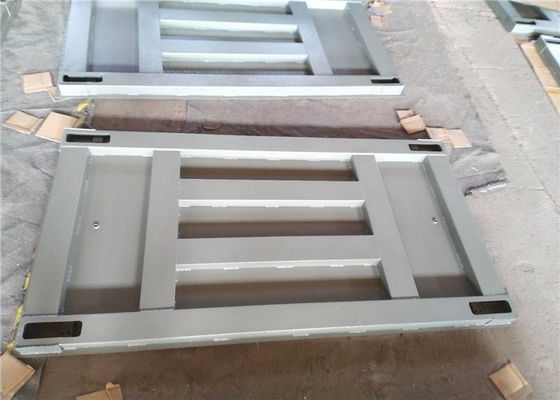

3). Mild-steel structure, U shape beams by modules.

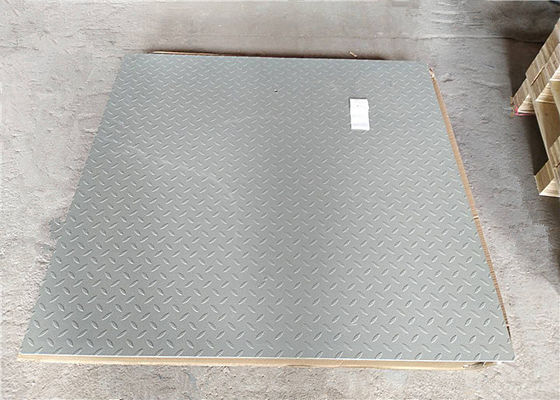

4). 5mm or 6mm thick checker top plate platform.
5). 4 load cell construction.
6). With KELI SQB /ZEMIC H8C/ Guangce YZC shear beam load cells.

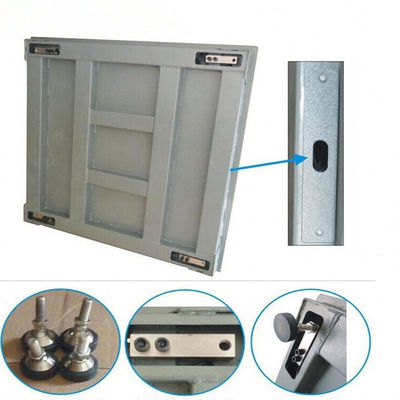

7). Adjustable heavy duty rubber feet.
8). With stainless steel or plastic junction box, and 5m cable in protection of metal-plastic jacket cable.
Applications:
1. Weighing
2. Weight accumulation
3. Net weight/tare
Advantages:
1.Convenient Transportation
2.High quality and Durable
3.Competitive Price
4.Fast Delivery
5.Good Service
