Overload Protection Digital Weighbridge Indicator Load Cell

1pcs

MOQ

negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Alloy Steel

Theory: Resistance Sensor

Output: Digital Sensor

Usage: Pressure Sensor

Sealing Class:: IP67-IP68

Name: Weight Indicator Load Cell

Highlight:

Digital Weighbridge Senor

DHT Based Electric Chain Hoist

Basic Infomation

Place of Origin: China

Brand Name: OEM

Certification: CE

Model Number: LC109

Payment & Shipping Terms

Packaging Details: carton

Delivery Time: 25days

Supply Ability: 100pcs/m

Gallery

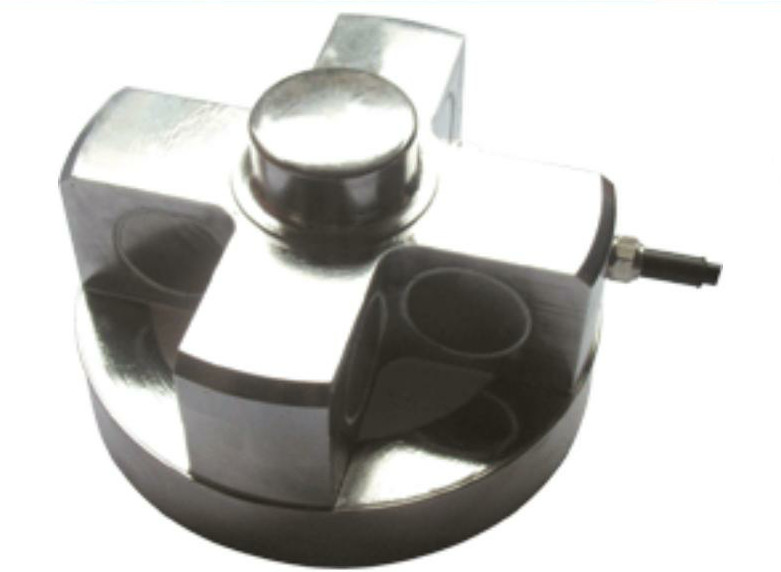

Overload Protection Digital Weighbridge Indicator Load Cell

Product Description

Digital Weighbridge Senor/DHT Based Electric Chain Hoist 30t

Specifications:

Rated Load:	10/20/30t	Operating Temperature Range:	-30~+70℃
Sensitivity:	(2.0±0.1%) mV/V	Maximum Safe Over Load:	150%F.S
Combined Error:	±0.02% F.S	Ultimate Over Load:	250%F.S
Creep Error(30min):	±0.02% F.S	Recommend Excitation Vol.:	10~12V DC
Zero Balance:	±1% F.S	Maximum Excitation Voltage:	15V DC
Temp. Effect On Zero:	±0.02% F.S/10℃	Sealing Class:	IP67/IP68
Temp. Effect On Span:	±0.02% F.S/10℃	Element Material:	Alloy Steel, Stainless Steel
Input Resistance:	750±5Ω	Cable:	Length=L:12m
Output Resistance:	701±2Ω	Citation	GB/T7551-2008/ OIML R60
Insulation Resistance:	≥5000MΩ	Mode Of Connection	Red(Input+),Black(Input-),Green(Output+),White(Output-)

Description:

Stronger four-direction side force resistance and overload protection capacity. Moisture proof seal, ideal for hostile environment, Simple to install, good interchangeability. Suitable for various truck scale, railroad scale, etc.

Overload Protection Digital Weighbridge Indicator Load Cell 1

Applications:

Suitable for various truck scale, weighbridge,railroad scale, etc.

Competitive Advantage:

1. We support small orders,fast delivery for customers to save even more valuable time.

2. We have abundant production and export experience ,best price and good quality.

3. We have global market,has been exported to Chile, UK, Czech, Latvia,Thailand, ViteNam, Chile,Canada,Philippines,Span etc. various countries around the world.
