Name: Column Type Low Profile 60 Tons Compression Load Cell
Brand: Changzhou Skyerscale Co.,Limited
SKU: LC404M
Price: 117.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Alloy Steel Or Stainless Steel

Theory: Resistance Sensor

Output: Analog Sensor

Type: Column Type

Comprehensive Error (%F.S): ±0.03/±0.02

Ultimate Overload (%F.S): 300

Highlight:

alloy steel compression load cell

60t load cell pressure sensor

Basic Infomation

Place of Origin: China

Brand Name: OEM

Certification: CE

Model Number: LC404M

Payment & Shipping Terms

Packaging Details: carton

Delivery Time: 25days

Supply Ability: 100pcs/m

Gallery

Column Type Low Profile 60 Tons Compression Load Cell

Product Description

compression column alloy steel 60t load cell pressure sensor

Specifications:

Rated Load:	10/20/25/30/40/50/60t	Operating Temp. Range:	-30~+70℃
Sensitivity:	(2.0±0.1%) mV/V	Max. Safe Over Load:	150%F.S
Combined Error:	±0.02% F.S	Ultimate Over Load:	300%F.S
Creep Error(30min):	±0.02% F.S	Recommend Excitation:	10~12VDC
Zero Balance:	±1% F.S	Maximum Excitation:	15V DC
Temp. Effect On Zero:	±0.02% F.S/10℃	Sealing Class:	IP67/IP68
Temp. Effect On Span:	±0.02% F.S/10℃	Element Material:	-Alloy / Stainless Steel
Input Resistance:	750±5Ω	Cable:	Length=13m
Output Resistance:	702±2Ω	Citation:	GB/T7551-2008/ OIML R60
Insulation Resistance:	≥5000MΩ	Mode Of Connection:	Red(Input+),Green(Output+, Black(Input-),White(Output-)

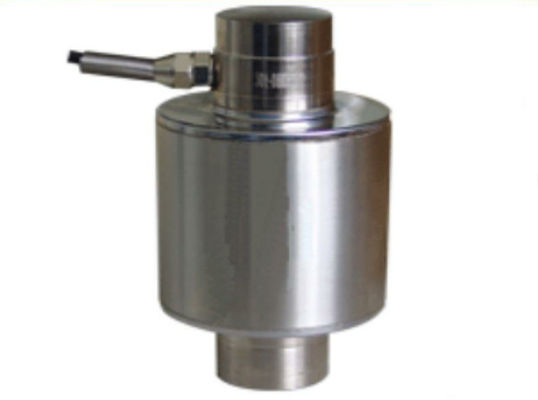

Column Type Low Profile 60 Tons Compression Load Cell 0

Description:

1.Load cells &weigh modules LC404M is a column, low profile, compression load cell.

2.We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. 3.The fully leak-tested welded construction, advanced cable entry and built-in surge protection tubes ensure this product can be used successfully in harsh environments.

3.This product meets the stringent weights and measures requirements.

4.This product is suitable for use in road and rail weighbridges and process weighing applications, truck and rail weighbridges, silo and hopper weighing, process weighing and weighing equipment

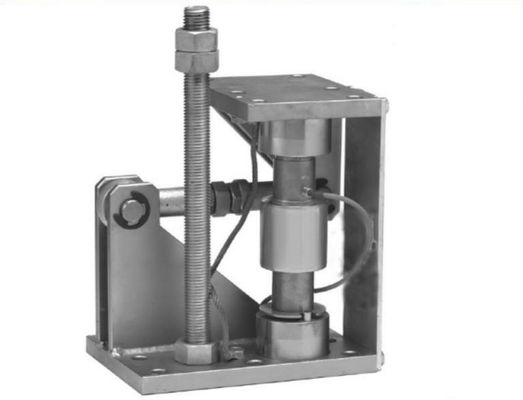

Column Type Low Profile 60 Tons Compression Load Cell 1

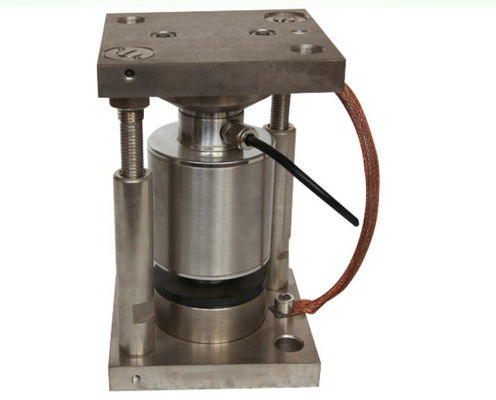

Column Type Low Profile 60 Tons Compression Load Cell 2

Applications:

Suitable for proportioning control system, detecting equipment and other weighing devices

Competitive Advantage:

1.High accuracy.
2.Stainless steel construction.
3.Four columns construction.
4.Easy installation and reliable performance.
