Name: Platform Scales Single Point Weighing Load Cell
Brand: Changzhou Skyerscale Co.,Limited
SKU: AM649D
Price: 117.00 USD
Availability: InStock

Platform Scales Single Point Weighing Load Cell

1pcs

MOQ

negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Aluminum

Theory: Resistance Sensor

Output: Analog Sensor

Usage: Weighing Scale

Operating Temperature Range: -35-+80 ℃

Precision: C2 / C3

Recommended Excitation Voltage: 10-15V

Combined Error: ≤±0.02% RO

Highlight:

single point aluminum load cell

500kg Accuracy Load Cell

Basic Infomation

Place of Origin: China

Brand Name: SKYERSCALE

Certification: CE

Model Number: AM649D

Payment & Shipping Terms

Packaging Details: carton

Delivery Time: 20days

Supply Ability: 100pcs/m

Gallery

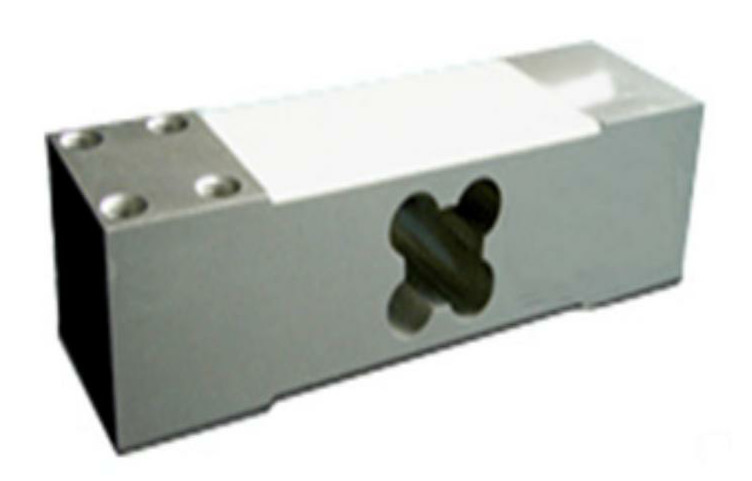

Platform Scales Single Point Weighing Load Cell

Product Description

Aluminum single point load cell AM649D(keli UDN,zemic L6E3) from 100kg to 500kg for platform scales

Specifications:

Rated Load:	60/100/150/200/250/300/350/500kg
Comprehensive Error:	0.017&0.02%F.S	Insulation Resistance:	≥5000MΩ(100VDC)
Rated Output:	2±0.1mV/V	Excitation Voltage:	9VDC~12VDC
Non-Linearity:	0.017&0.02%F.S	Compensated Temp. Range:	-10℃~+40℃
Hysteresis:	0.017&0.02%F.S	Use Temp. Range:	-20℃~+60℃
Repeatability:	0.01%F.S & 0.02%F.S	Temp. Effect On Zero:	0.017&0.03%F.S/10℃
Creep:	& 0.02%F.S/10min	Temp. Effect On Span:	0.014&0.02%F.S/10℃
Zero Balance:	±1%F.S	Safe Overload:	120%
Input Resistance:	405±10Ω	Ultimate Overload:	150%
Output Resistance:	350±3Ω	Defense Class:	IP65

Description:

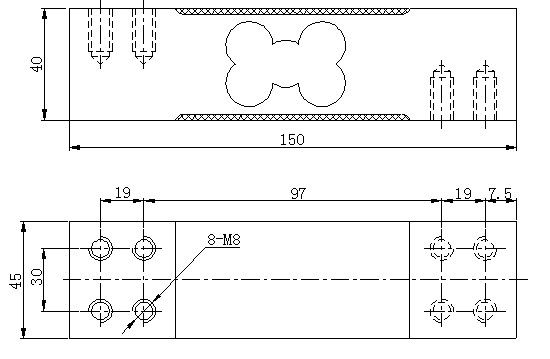

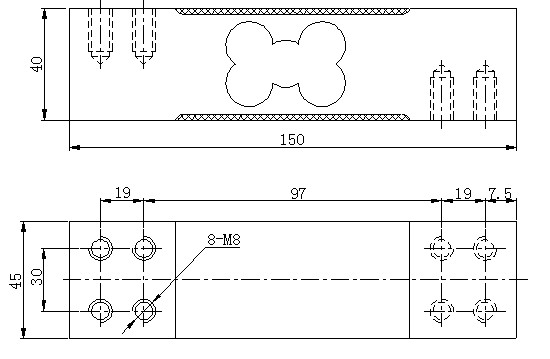

Size: 150x40x45(mm) Thread hole:8-M8

It uses 4-core shielded cable (φ5×1500mm). The length of the cable can be adjusted according to clients' request, but we suggest to use this standard length to ensure the output precision

Platform Scales Single Point Weighing Load Cell 0

Applications:

Electronic scale, Platform scale, pricing scale, fore test equipment

Competitive Advantage:

1. High quality and Durable,Competitive Price

2. OEM Accepted : We can produce any your design .

3. 3. Good Service and Adequate Stock

4. 4. Good Quality :We have strict quality control system .Good reputation in the market.

5. 5. Convenient Transportation and fast delivery
