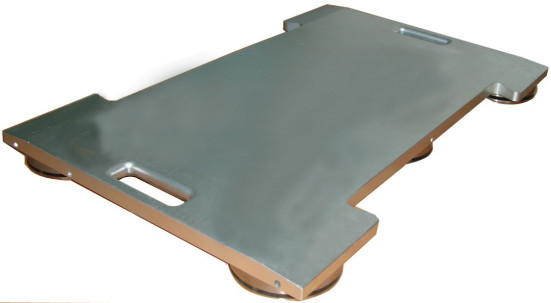

Wired Wireless Portable Axle Scales pads For Trucks

Wired Wireless Portable Axle Scales pads For Trucks
Wired Wireless Portable Axle Scales pads For Trucks Wired Wireless Portable Axle Scales pads For Trucks Wired Wireless Portable Axle Scales pads For Trucks Wired Wireless Portable Axle Scales pads For Trucks

Large Image :  Wired Wireless Portable Axle Scales pads For Trucks

Product Details:
Place of Origin: China
Brand Name: SKYERSCALE
Certification: CE
Model Number: WP17CW
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Aluminium box, carton
Delivery Time: 15days
Supply Ability: 500pcs/M
Detailed Product Description
Type: Axle Scale, Aluminum Pad Power Supply: 220V/50HZ
Display Type:: LCD Or LED, LCD Safe Overload:: 120%FS
Material: Aluminum
High Light:

portable axle weighing pads

,

Wireless Portable Vehicle Scales

Dynamic static wired wireless portable axle weighing pads



Specifications:



Technical Parameter:



Wireless Frequency: 470MHz
Wireless Distance: Min:100m(default)
A/D Conversion Rate: ≥50times/seconds
Operating Temp. Range: -20~+80℃
Operating Humidity: ≤85%RH under 20℃
Battery Life: ≥50 hours
Non-Linearity: 0.01%F.S
Stable Time: ≤5 seconds
Citation: GB/T7551-1997/ OIML R60



Portable truck scale product configuration

a. 2 pieces weighing pad;

b. 1pc indicator;

c. standard accessories (Chargers, printer paper, ribbons and so on)



WI280 Wireless Indicator



Work Principle:



The load cell’s out–put signal is digital, parameter adjustment and temperature compensation will be finished in internal. Though 470MHz wireless module to launch after reasonable.

Handheld receive load cell output and its internal battery power consumption values then show them on the LCD display ,and handheld through RS232 output to computer or large-screen display.



Product Characteristics:



1. Display: LCD 71×29 with backlighting , 6 bit show weight value

2. Hold on the peak value, can contact with computer or large-screen display by RS232

3. Unit:kg,lb,t



Wireless Weighing Scoreboard



Weighing the results of long-range wireless observation, weighing device can be used as the auxiliary display. Connection with the weighing indicator, as a system of auxiliary displays. (weighing indicator should be equipped with the appropriate means of communication.). Dynamic scan latch technology. High brightness digital model, a special optical filter film, Perspective range; Display system or the output of the gross, net; Display the gross weight and net weight of system or indicator output.



Technical Parameters:



Power Supply: AC 187 ~ 242V; 49 ~ 51Hz;

Ambient temperature: 0 ~ 40 ℃;

Ambient Humidity: ≤ 85% RH;

Radio Frequency: 240HZ

Wireless transmission distance: Min: 80 meters [200 meters (optional)]



Display Character And Specifications:



6-bit digital tube LED character height 25mm (1 inch)

6-bit digital tube LED character height 75mm (3 inches)

6-bit digital tube LED character height 125mm (5 inch)

6-bit digital tube LED character height 200mm (8 inches)



Description:



1. Light in weight, and convenient transportation.
2. Integral flat plate construction, high frequency in dynamic response, and high precision.
3. Applied special treatment, offering high protection class that are suitable for all kinds of environments.
4. Adopted special material in aero-industry, with good anti-over loading ability.
5. Assembled with rubber handles, avoided destroying of the handles.
6. Mounted with connector and protection block, easy for changing of cables.
7. Completed with dovetail approach, offering tight connection of the approach and the scale.
8. Easy for loading on/off of the vehicles.

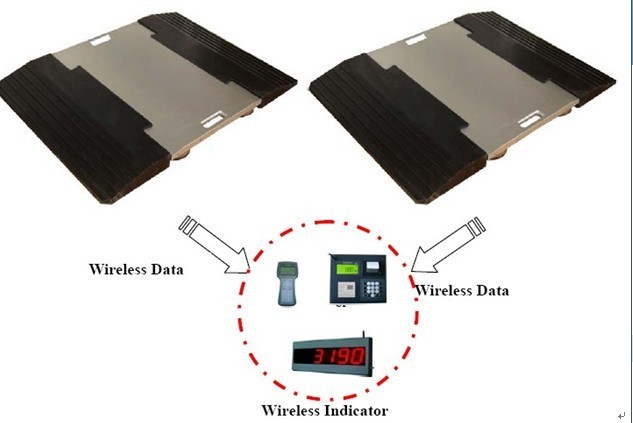

Wired Wireless Portable Axle Scales pads For Trucks 0

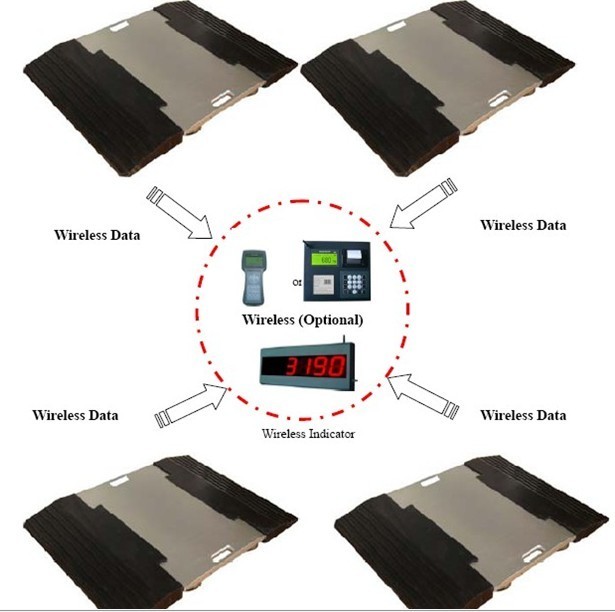

Wired Wireless Portable Axle Scales pads For Trucks 1



Notice:



Do not use the wireless load cell in explosive and unsafe place. The wireless range will be effective when in different weather, the load cell with the indicator in different place, orientation or obstruct from .For charge :according to Li-ion battery .Do not excess discharge.





Applications:



1. Load control and weighing for the vehicles.
2. Measuring the weight and barycenter of aeroplane.

3. Measuring weight for special purpose.



Competitive Advantage:


1. your inquiry and e-mail will be replied within 12 hours.

2. If you need to develop product with your own specification, we have professional engineers to work it out.

3. Never leave customer alone, solve problems with customer together.

4. Customer first, quality first, service first!
