Product Details:
Payment & Shipping Terms:
|
| Material: | Alloy Steel ,stainless Steel | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Usage: | Weighing |
| Sealing Class:: | IP67-IP68 | Name: | Tension Load Cell |
| High Light: | Beam Type Load Cell,Tension Link Load Cell |
||
Specifications:
| Cap/Size | L | L1 | H | H1 | W | D |
| 2t,3t,5t | 227 | 147 | 70 | 68 | 40 | 28 |
| 10t,15t | 340 | 210 | 100 | 75 | 50 | 38 |
| 20t,30t | 340 | 210 | 100 | 75 | 50 | 54 |
| Cap/Size | A | B | C | H | T |
Description:

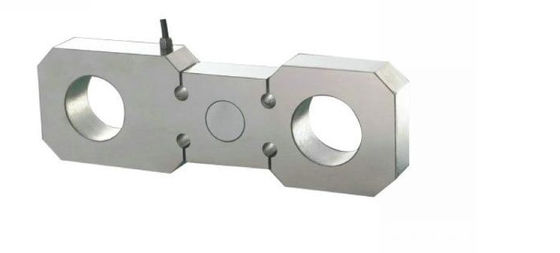

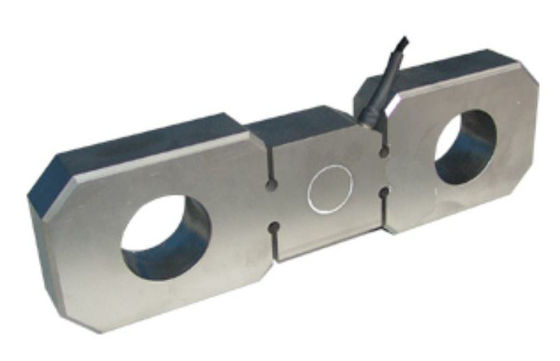

1. Plate-ring load cell are installed in the side by a fixed rope, etc. to measure tension of a load cell, its bottom two holes through the pin, hanging panels, with wire rope connected to form a taut state, to measure the pull rope .
2. Such products are mainly used for electric hoist and load cell not easy installed on the crane.
3. Alloy Steel,Stainless steel construction, corrosion resistance and anti-rust performance, applicable to a variety of harsh environments.
4. High precision, used for overload protection, while the weight can be accurately measured.
Applications:
High precision, strong anti-deflective loading, good shock resistance, simple to install, moisture proof sealed, used in various crane scale
Competitive Advantage:
Professional management team,production department ,production line,highly accurate measuring and test equipment, experienced technical experts who engaged in this industry for more than 20 years .We also have the superiorities to supply the high-quality products and excellent service .
1,Our load cells are made of good-quality material .It has better rigidity and stability .
2,We have our own technical team to support and assist the clients,to solve all the technical problems .
3,Capacity :About 500000 PCS/YEAR
