Frame Type 100 Ton 3×16m Truck Scale Weighbridge

Certification
China Changzhou Skyerscale Co.,Limited certification
China Changzhou Skyerscale Co.,Limited certification
I'm Online Chat Now

Frame Type 100 Ton 3×16m Truck Scale Weighbridge

Frame Type 100 Ton 3×16m Truck Scale Weighbridge
Frame Type 100 Ton 3×16m Truck Scale Weighbridge Frame Type 100 Ton 3×16m Truck Scale Weighbridge Frame Type 100 Ton 3×16m Truck Scale Weighbridge

Large Image :  Frame Type 100 Ton 3×16m Truck Scale Weighbridge

Product Details:
Place of Origin: China
Brand Name: SKYERSCALE
Certification: CE
Model Number: C1
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Nude,container loading
Delivery Time: 15~20days
Supply Ability: 150sets/M
Detailed Product Description
Name: Truck Scale Weighbridge Accuracy: 10kg
Display Type: LCD/LED Power Supply:: 220v/50HZ Or 110V/60HZ
Place Of Origin: China Rated Load: 200t
High Light:

100 ton Truck Scale Weighbridge

,

electronic concrete weighbridge

100 ton 3x16m electronic concrete weighbridge truck scale weighbridge



Specifications:



size Length of module QTY of Module Load cell Qty.
3X6 1.5x6m 2 4
3X8 1.5x4m 4 6
3X9 1.5x4.5m 4 6
3X10 1.5x5m 4 6
3X12 1.5x6m 4 6
3X15 1.5x5m 6 8
3X16 1.5x5.33m 6 8
3X18 1.5x6m 6 8

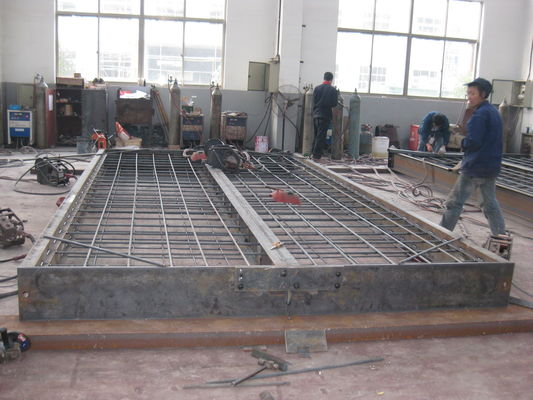

1) Frame type,reinforcement bars to be welded at customer site
2) Steel frame dismountable

3) Optional in platform size, Max. Cap.

4) Optional in load cell, indicator.



Description:

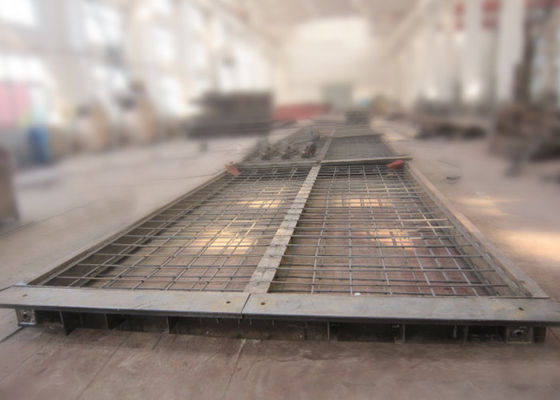

1. Supply status: steel frame in H300 steel, more convenient for container

   transportation and economic for transportation charge
2. Reinforcement bars to be welded at customer's site.
3. With OIML R60 approved double shear beam load cells, KELI QS-30t or ZEMIC HM9B-30t

4. Width available: 3m,3.2m,3.4m

5. Standard length available:6m,7m,8m,9m,10m,12m,14m,16m,18m,20m,21m,24m

6. Max.Capacity available: 30t,40t,60t,80t,100t,120t
7.  In one 40'container,7 pcs of 18m can be loaded in.



Applications:



1). Weighing

2). Net weight/tare

3). Weight accumulation



Competitive Advantage:



1. We develop this export style structure, suitable for container transportation, and becomes the most popular export style structures in China market.

2. Our engineer has the unique designing ideas for this structure that the other imitators cannot imitate, which makes our truck scales with the best ratio between the quality and price.

3. Easy installation, robust structure.
