1.5x1.5m, 2x3m 20t Double Layer Platform Floor Weighing Scales buffering scale

1.5x1.5m, 2x3m 20t Double Layer Platform Floor Weighing Scales buffering scale
1.5x1.5m, 2x3m 20t Double Layer Platform Floor Weighing Scales buffering scale 1.5x1.5m, 2x3m 20t Double Layer Platform Floor Weighing Scales buffering scale 1.5x1.5m, 2x3m 20t Double Layer Platform Floor Weighing Scales buffering scale 1.5x1.5m, 2x3m 20t Double Layer Platform Floor Weighing Scales buffering scale 1.5x1.5m, 2x3m 20t Double Layer Platform Floor Weighing Scales buffering scale

Large Image :  1.5x1.5m, 2x3m 20t Double Layer Platform Floor Weighing Scales buffering scale

Product Details:
Place of Origin: China
Brand Name: SKYERSCALE
Certification: CE
Model Number: BF
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Cardboard, wooden pallet
Delivery Time: 25days
Supply Ability: 1000sets/M
Detailed Product Description
Name: Industrial Floor Scales Treatment: Painting
Color: Gray, Red, Black, Blue Material: Carbon Steel
Power Supply: AC220V Or 110V Rated Load:: 30t
High Light:

steel roll buffering scales

,

Double Layer Floor Scale

1.5x1.5m, 2x3m 20t Double Layer Platform Floor Weighing Scales buffering scale





Specifications:



Model Size(m) Capacity(t)
1212 1.2X1.2 5
1515 1.5X1.5 5
1520 1.5X2 10
2020 2.0X2.0 10
20
2030 2.0X3.0 10
20

Optional in platform size, Max. Cap.



Optional in load cell, indicator.





Description:

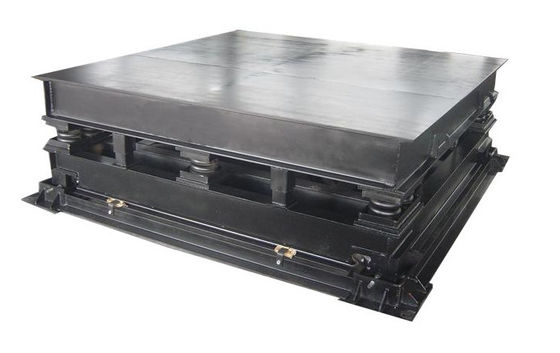

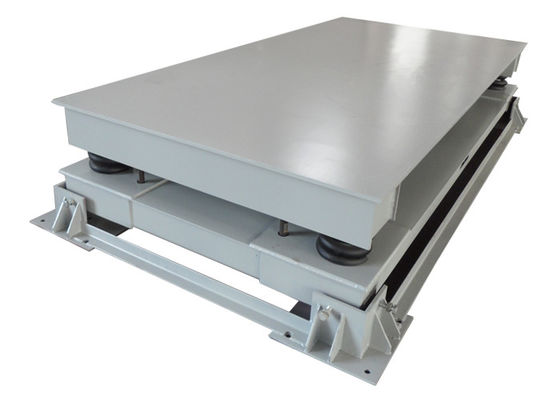

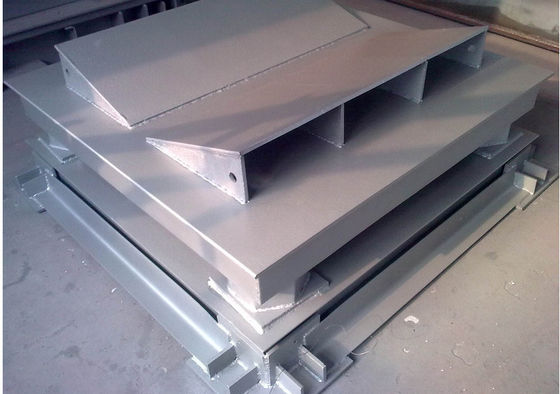

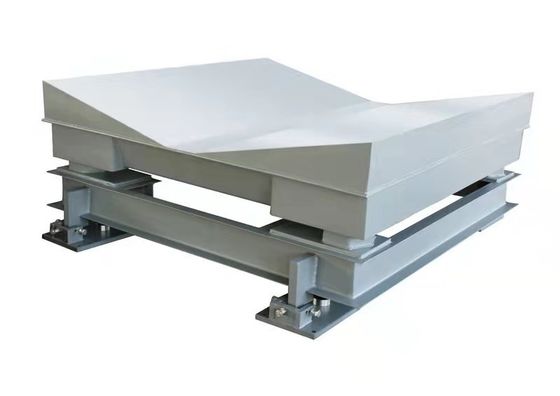

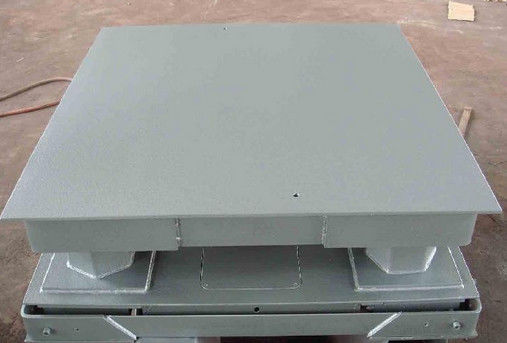

Gas Cylinder Buffer Weighing Scale with good structure



1) Scale body adopts double layer platform structure,

2) Four deck electronic spring buffering scale,

3) Four bridge types transducers

4) basic apparatus:scale body,indicator ,transducer , junction box

5) selection:printer,computer.

6) With OIML and CE approved load cells
7) Mild-steel structure, U shape beams by modules

1.5x1.5m, 2x3m 20t Double Layer Platform Floor Weighing Scales buffering scale 0

1.5x1.5m, 2x3m 20t Double Layer Platform Floor Weighing Scales buffering scale 1



Applications:



It is specially used in crane equipment for loading process and widely used in the area of metallurgy,building material,warehousing,river trade terminal,etc.



Competitive Advantage:



1. High precision sensor

2. Can choose various indicating instruments
3. Resolution is 1/15,000
4. The function of weighing data holding.
5. Operated by power supply or rechargeable battery.
6. Automatic calibration fucntion.
7. Adjustable zero band, filter and band rate selection.
8. Tare, pre-tare functions.
9. Gross/net weights conversion.
11. All-steel structure platform
12. Scale size can be made by request
13. RS232 interface, optional
